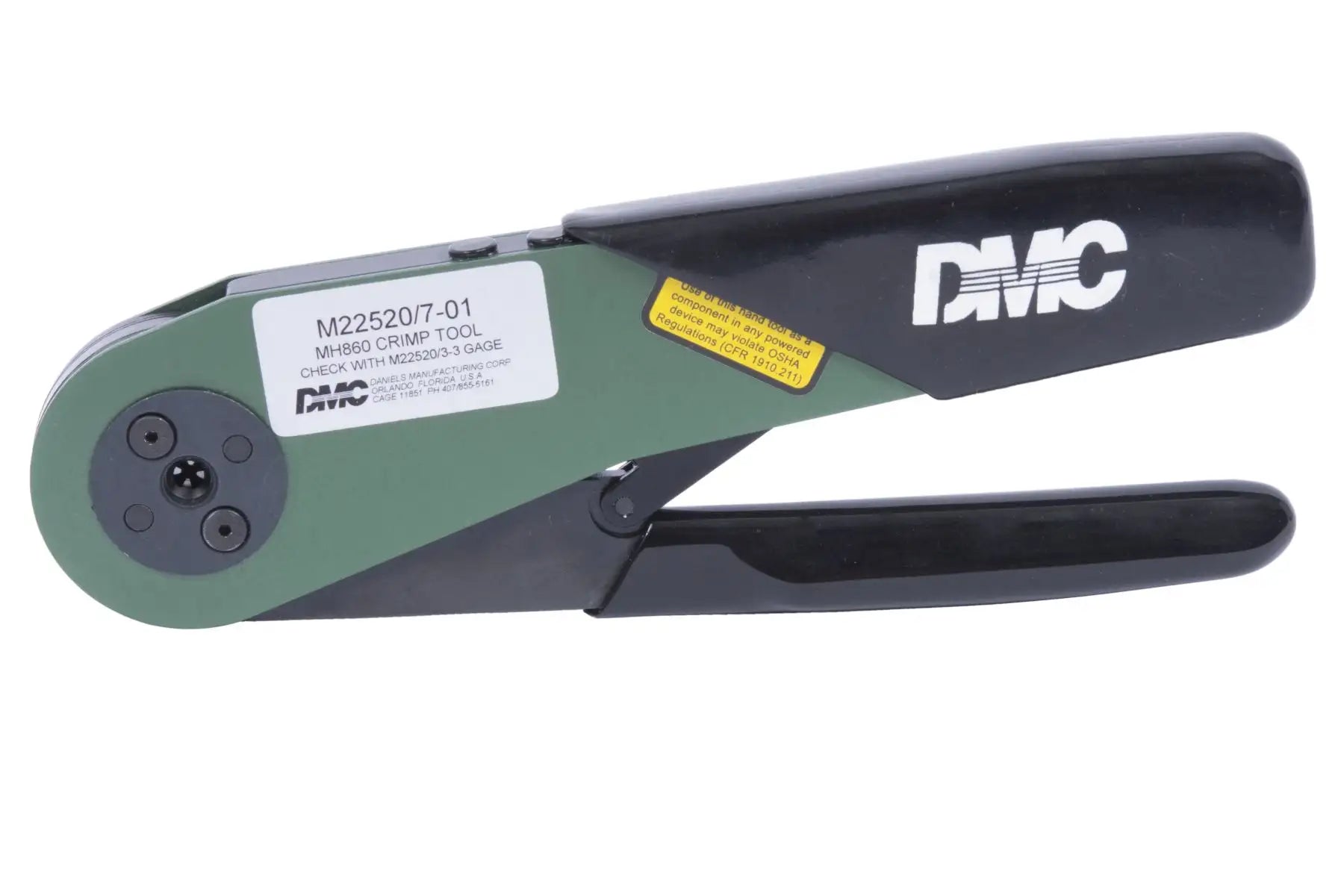

• M22520/7-01
• The MH860® accommodates 16 - 32 AWG wire range
• The MH860® is qualified to MIL-DTL-22520/7* and AS22520/7*

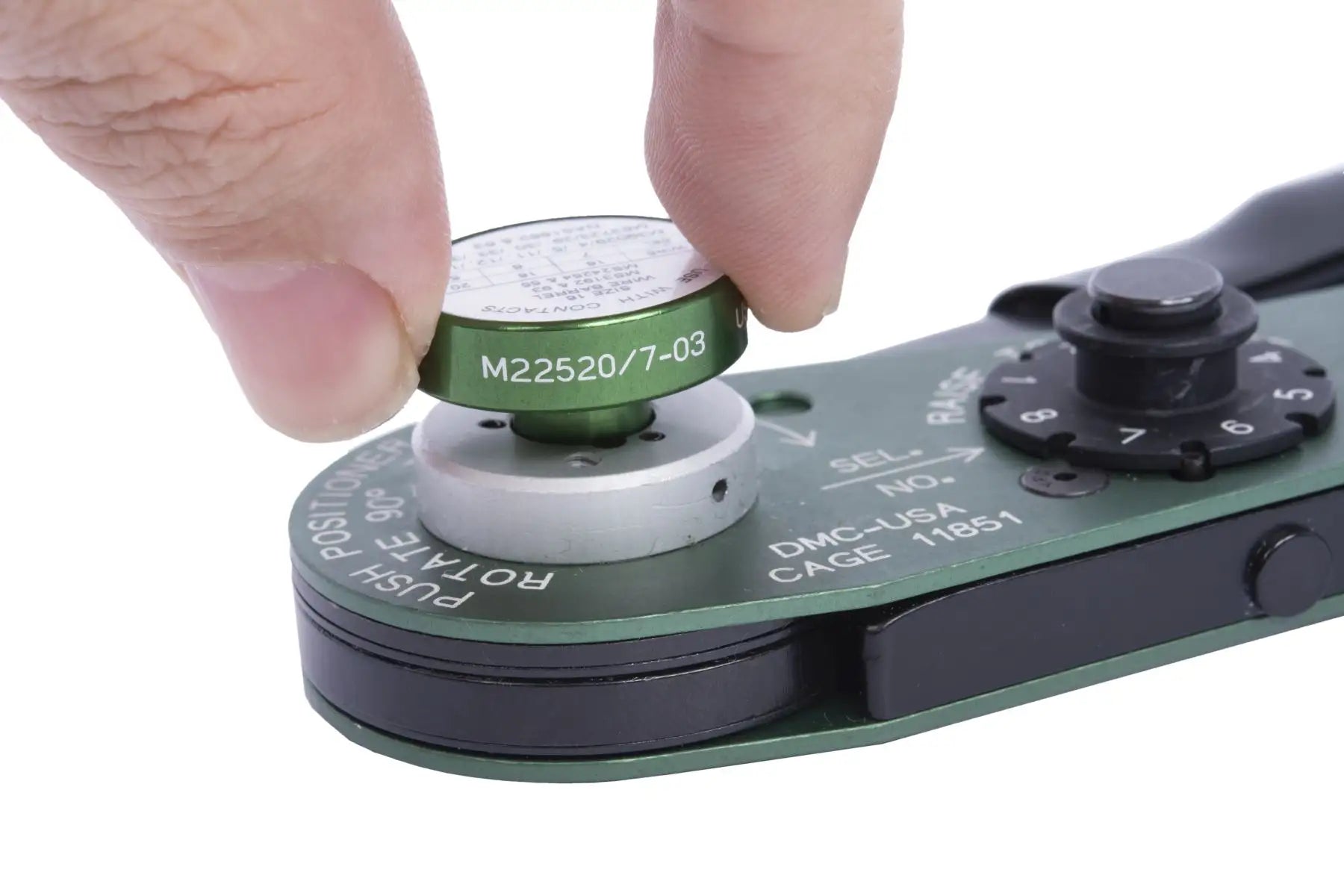

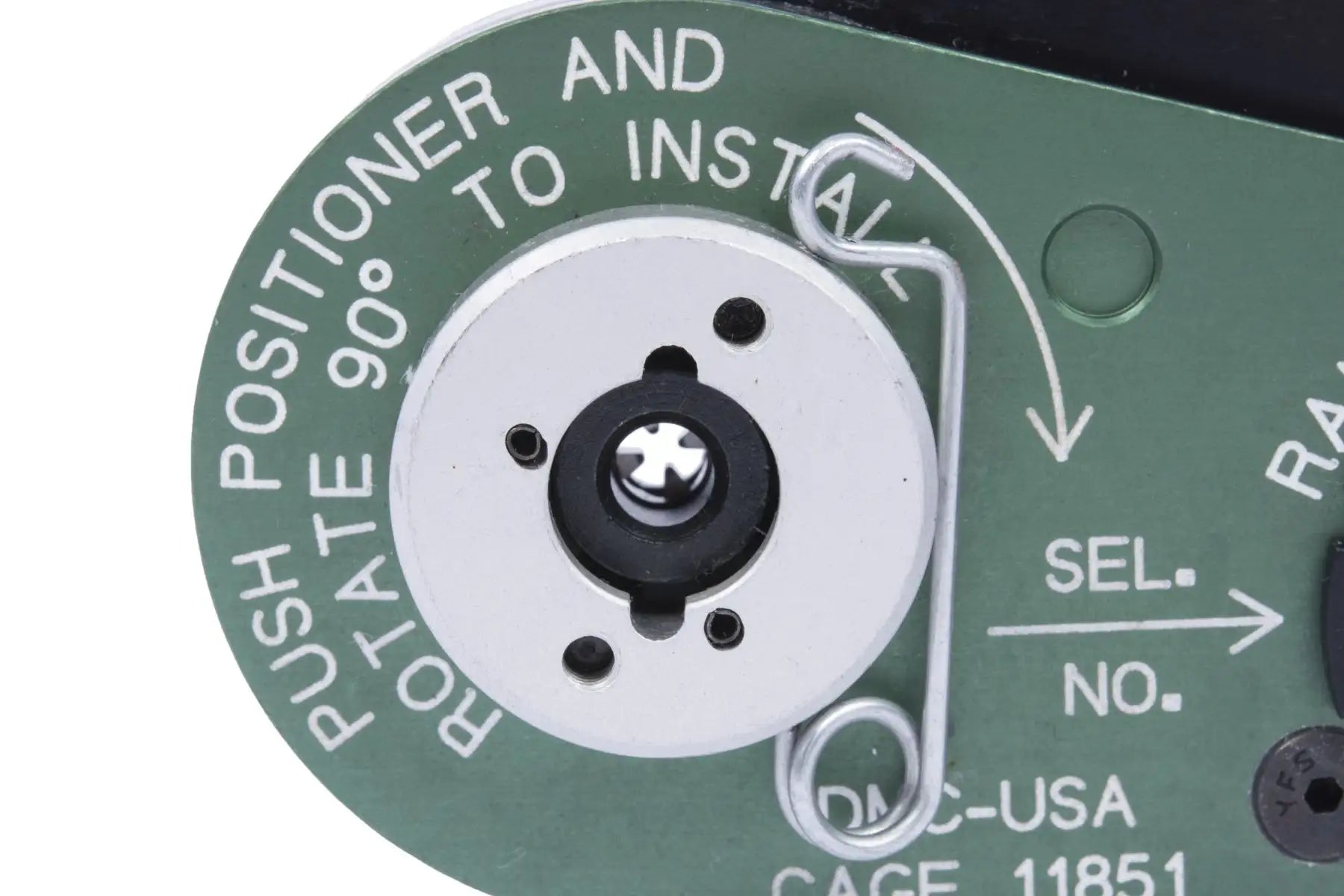

• The MH860® is compatible with DMC 86 Type positioners

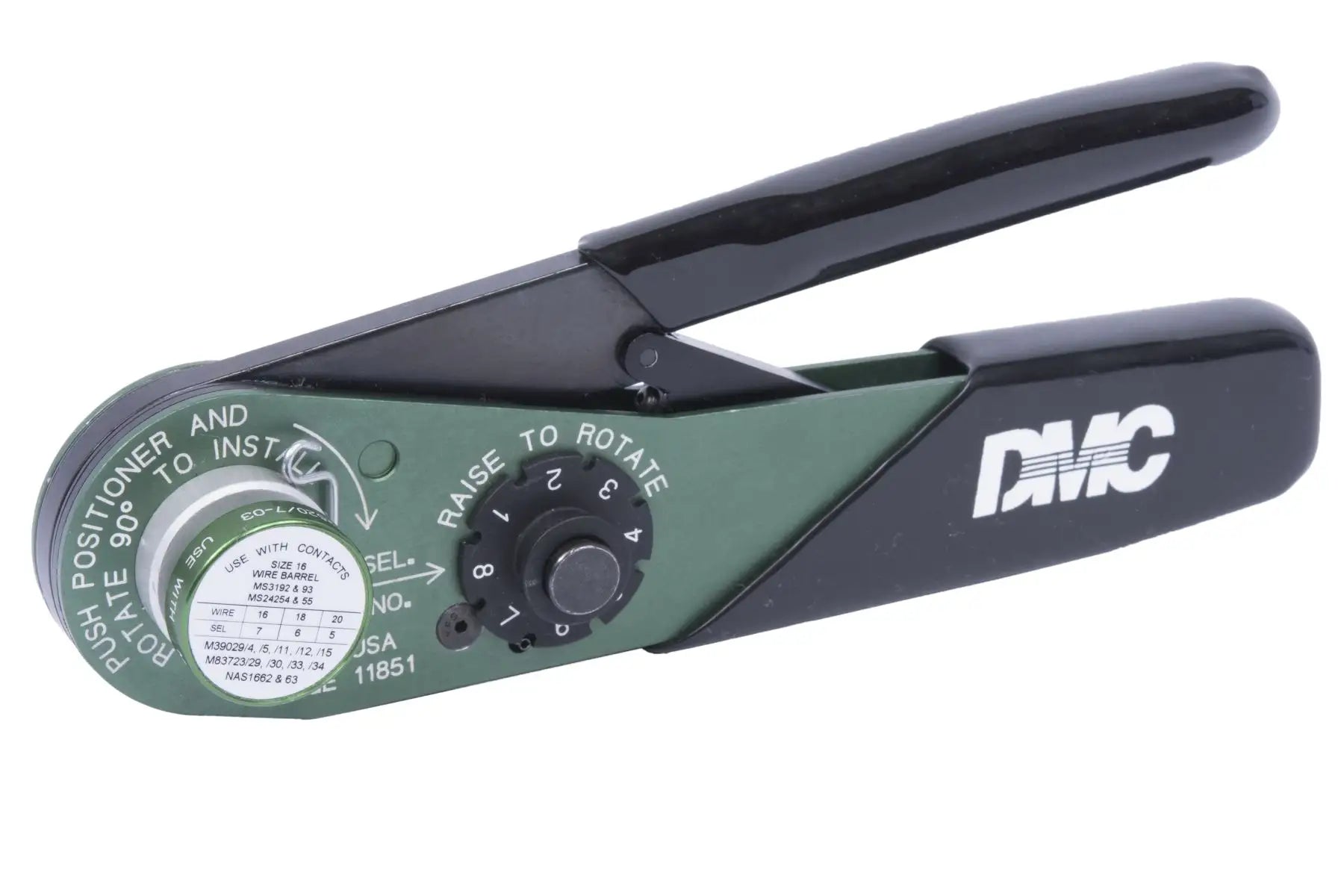

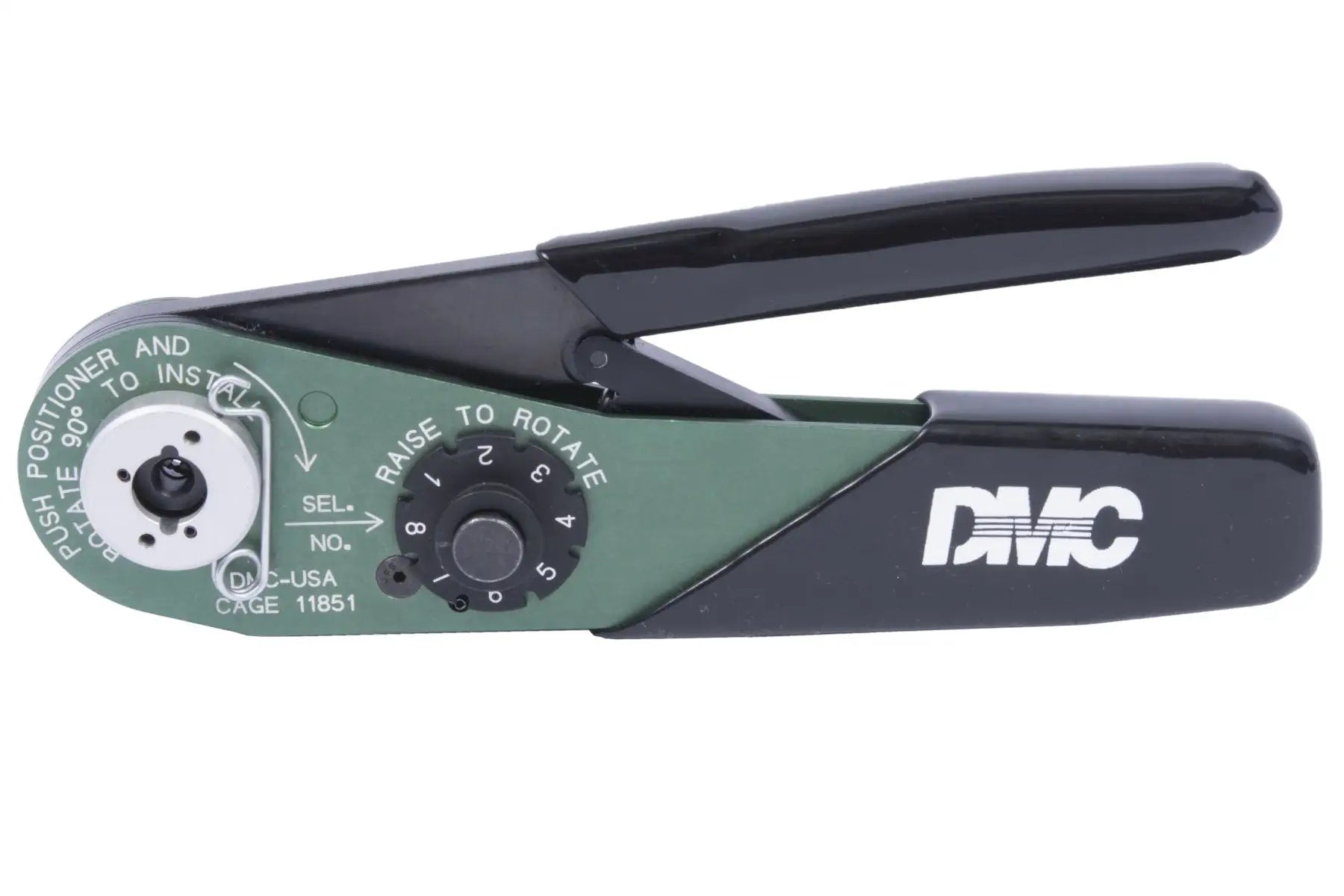

Qualified to MIL-DTL-22520/7* and AS22520/7*, the DMC® MH860® is a recent addition to the military specification. It was developed to meet the demonstrated need for supporting the majority of electrical systems with one versatile crimp tool frame.

The MH860® accepts the entire middle wire range of 16 through 32 AWG, with positioners that adapt it to virtually all applications consistent with others in the MIL-DTL-22520 family.

Also available is the DMC123 tool kit containing the MH860® tool frame, tool gage, and all mil-spec positioners. Also included in the DMC123 are tool instruction sheets and a tool selection chart.
