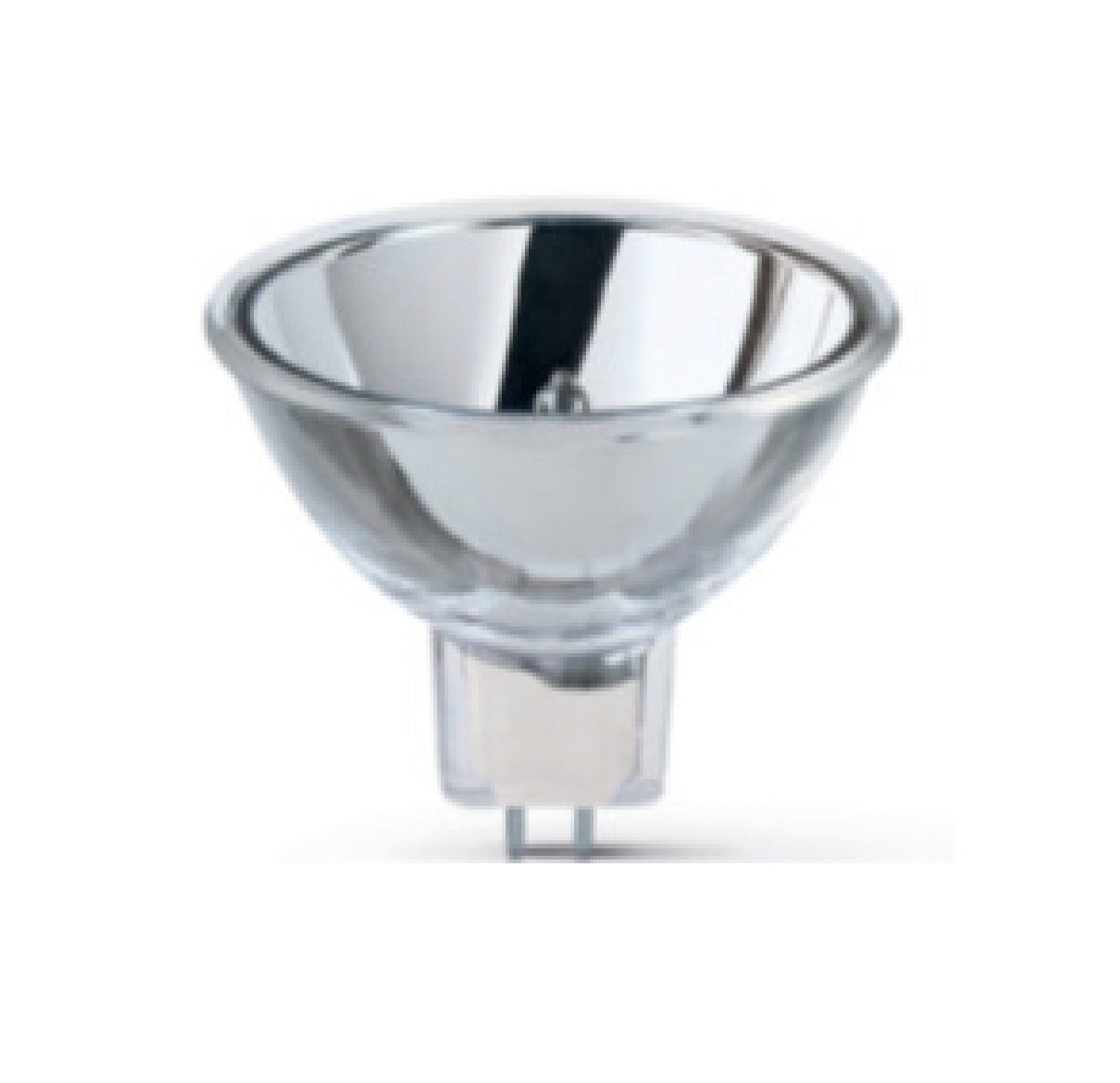

Narva 13.8V 85W GX5.3 DED 54085 Halogen Reflector Projection Lamp
In Stock. Ships within 5 business days.
Narva Type 54085 13,8V 85W GX5,3
Halogen lamps with reflectors guarantee a precisely focussed light at a pre-defined distance. The coating of the reflector directs the majority of the heat radiation away to the rear, thus protecting the illuminated object against the effects of heat. With their varying reflector diameters and cap shapes, these lamps can be used in a variety of different settings.
- Dichroic coating on the glass reflector
- Precise alignment of the halogen lamp to suit the optical system
- Various lighting characteristics
- Fibre optics
- Medical equipment
- Hardening of dental fillings
Product Description: Halogen reflector lamp
Features: Quartz Bulb, Pre-Focused (Filament), Dimmable
ANSI Code: DED
Rated Voltage (V): 13,8
Wattage (W): 85
Color Temperature (K): 3150
Average Lifetime (h): 1000
Reflector Finish: smooth
Operating Position: S105
Max. permissible Temperatures (degree C) • Pinch: 350 Bulb: 900
Environmental Remark: Product does not contain lead or mercury and is conform with Directive 2011/65/EC ‘’Restriction of the use of certain hazardous substances in electrical and electronic equipment’’.

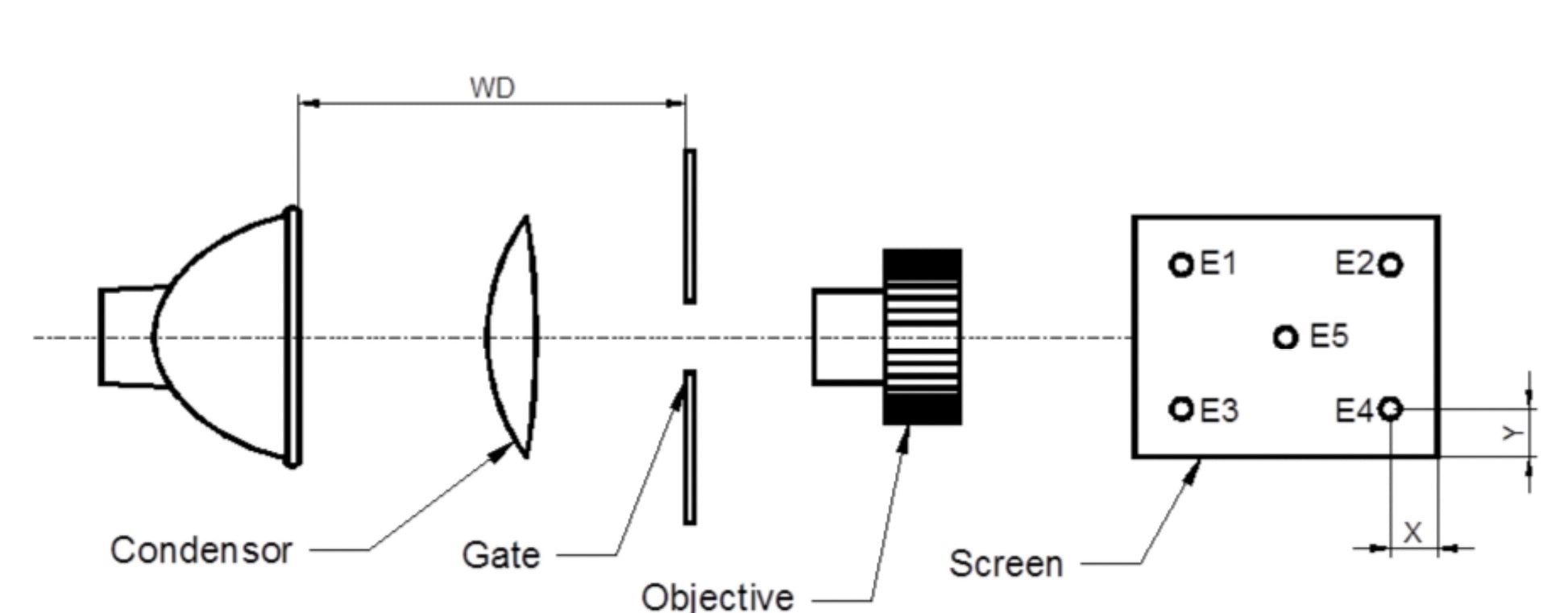

Working Distance WD (mm): 165
Condensor f (mm): 60
Gate (mm): 16 / round
Objective f (mm): 29
Screen Size (mm): 356 x 279
Cell Position X/Y (mm): 40/40
Screen Illumination on Center (Lx): 1000 av. min. 850 min
Screen Illumination on Corner (%): 75 min.
GERMAN COMPANY – GERMAN QUALITY STANDARDS
Special Lamps Made in Germany since 1948
Voslo-Narva is the worldwide leader in producing halogen lamps for microscopes, lamps for operating rooms and other surgical lighting.
