Philips 7748XHP EHJ-S 250W G6.35 24V Halogen Non-Reflector (Qty. 8)
Philips 7748XHP EHJ-S 250W G6.35 24V Halogen Non-Reflector (Qty. 8)
Philips 7748XHP EHJ-S 250W G6.35 24V Halogen Non-Reflector (Qty. 8)
Philips 7748XHP EHJ-S 250W G6.35 24V Halogen Non-Reflector (Qty. 8)

Philips 7748XHP EHJ-S 250W G6.35 24V Halogen Non-Reflector (Qty. 8)

Regular price Rs. 2,000.00

In Stock. Ships within 5 business days.

Compatible lampholder to prevent premature failure of lamp is also available for this lamp

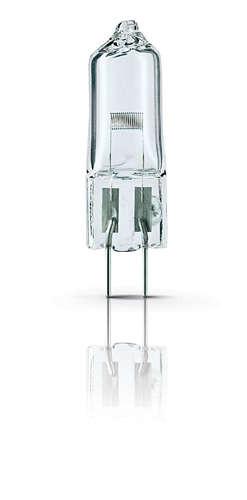

Philips Halogen non-reflector 7748XHP EHJ-S 250W G6.35 24V

Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 – the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.

Benefits

  • Optimal beam performance
  • Constant light output throughout lifetime
  • 100% Color Rendering Index (CRI)

Features

  • Distortion-free, quartz bulb and precisely defined filament position
  • Lamp replacement without adjustment
  • Flat filament available
  • XHP version with xenon gas for maximum light output

Applications

  • Studio, film, theatre and disco lighting
  • Microscopes
  • Slide and film viewers
  • Microfilm readers
  • Spectrography
  • Slide, overhead, profile and 8/16 mm film projectors
  • Optical equipment
  • Surgery lamps
  • Dental lamps

Specifications

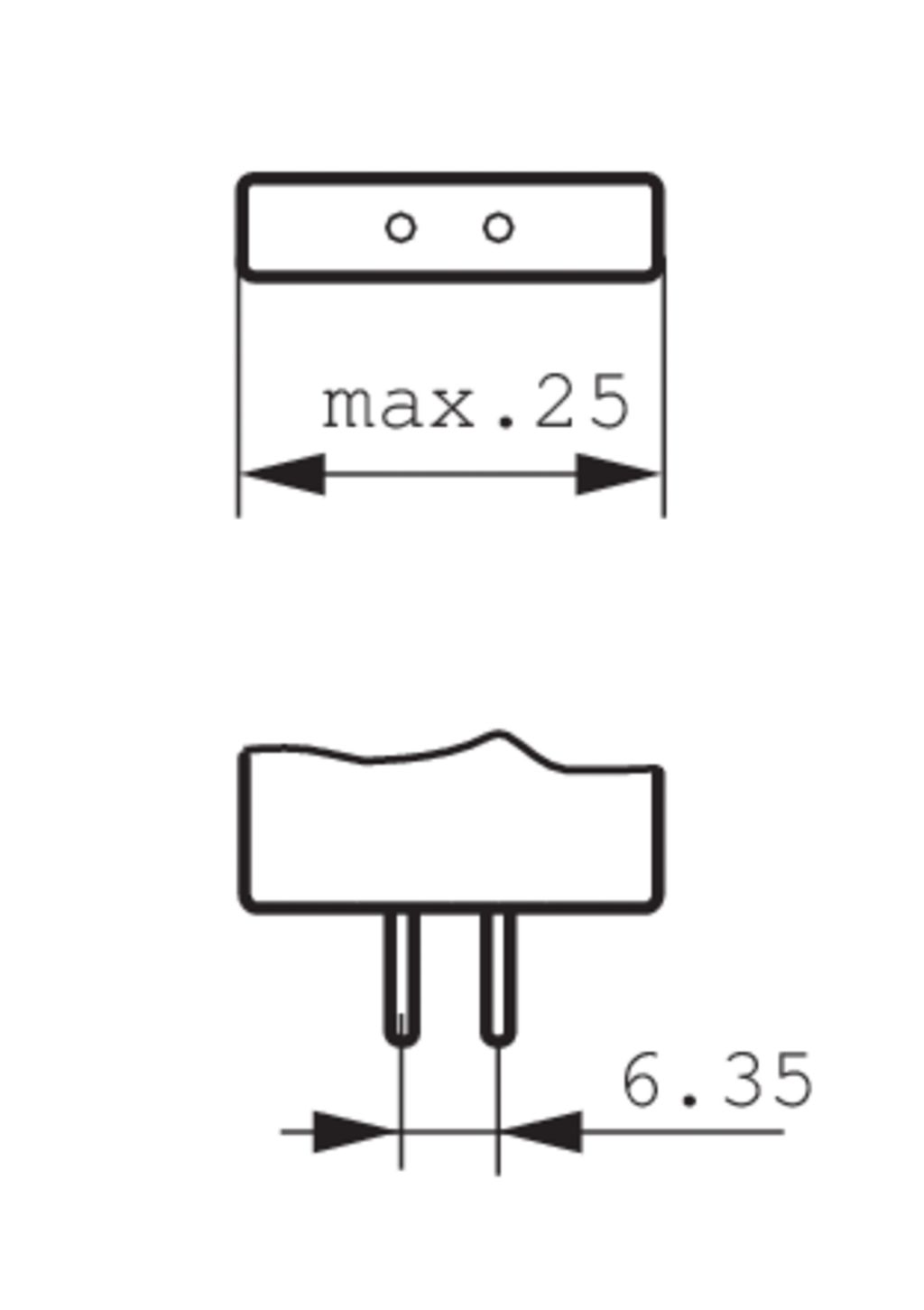

  • Cap-Base G6.35  [ G6.35
  • Philips Code 7748XHP
  • ANSI Code EHJ
  • LIF Code A1/223
  • Operating Position S90  [ Standing +/-90D or Base Down (BDH)
  • Main Application Projection
  • Life to 50% Failures (Nom) 50 h
  • Luminous Flux (Rated) (Nom) 10000 lm
  • Correlated Color Temperature (Nom) 3550 K
  • Color Rendering Index (Nom) 100
  • Power (Nom) 250 W
  • Voltage (Nom) 24 V
  • Bulb Material Quartz-UV Open
  • Filament Shape Flat

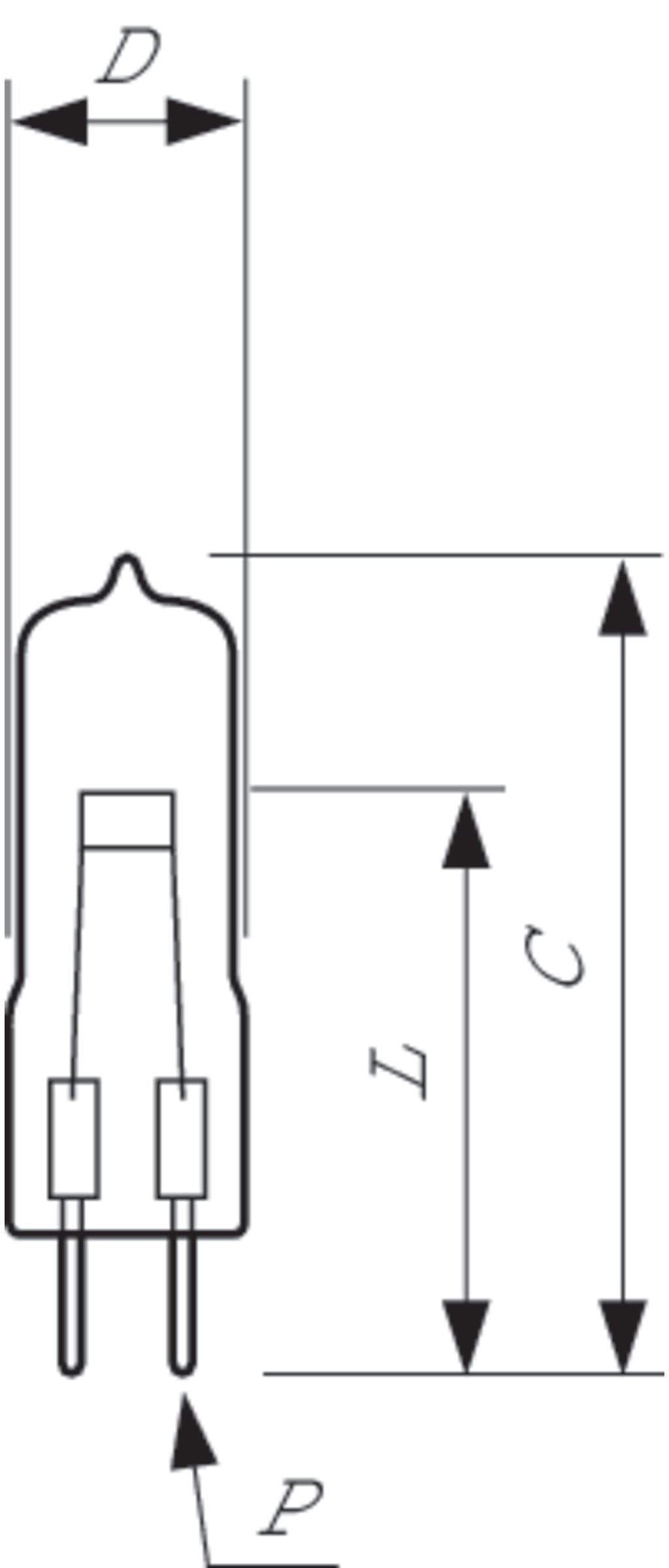

  • Filament Dimensions WxH 7.0x3.5
  • Bulb Temperature (Max) 900 °C
  • Pinch Temperature (Max) 400 °C
  • Net Weight (Piece) 0.004 kg
