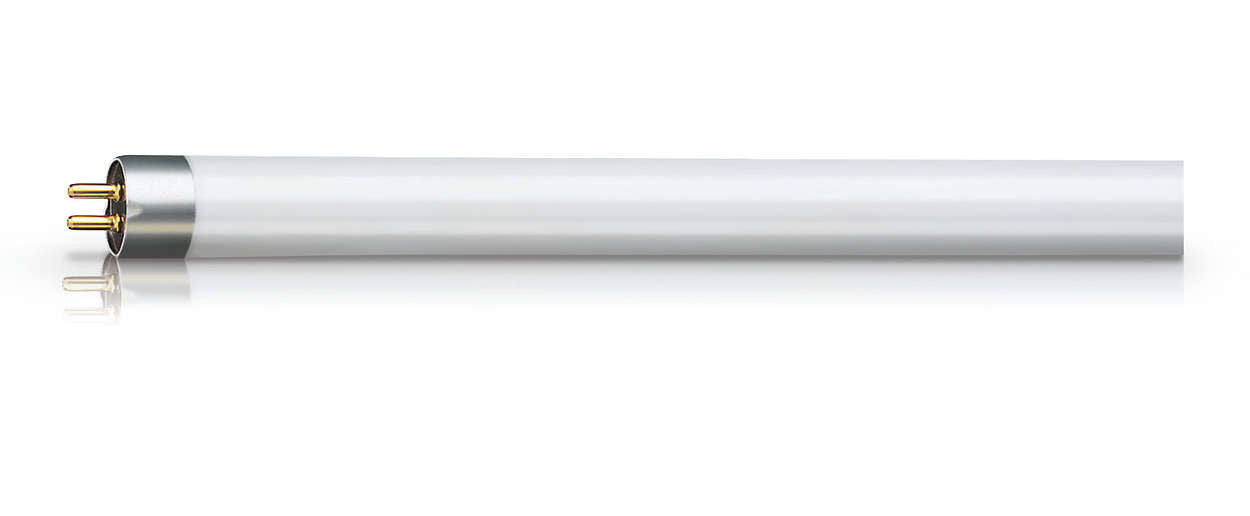

Philips Actinic BL TL 8W/10 1FM (Qty. 15)
Philips Actinic BL TL 8W/10 1FM (Qty. 15)
Philips Actinic BL TL 8W/10 1FM (Qty. 15)
Philips Actinic BL TL 8W/10 1FM (Qty. 15)
Philips Actinic BL TL 8W/10 1FM (Qty. 15)

Philips Actinic BL TL 8W/10 1FM (Qty. 15)

Regular price Rs. 2,480.00

In Stock. Ships within 5 business days

Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp

UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp

UV Quartz Sleeve for safety is also available for this UV lamp

Philips Actinic BL TL(-K)/TL-D(-K)

With an optimized spectrum matching the eye sensitivity of the housefly, Actinic BL TL(-K)/TL-D(-K)/TL-E/PL-S and PL-L lamps are perfect for attracting insects. They have virtually no UV-B output, and so are perfectly safe. What's more, with the lowest mercury content in the industry and being 100% lead-free, these lamps represent a very good environmental choice. Furthermore, the availability of a wide range of form factors (straight (T5, T8, T12), circular (TL-E) and compact (PL-S/PL-L)) and wattages enables you to make all kinds of designs for your electronic fly killers.

Specifications

General Characteristics

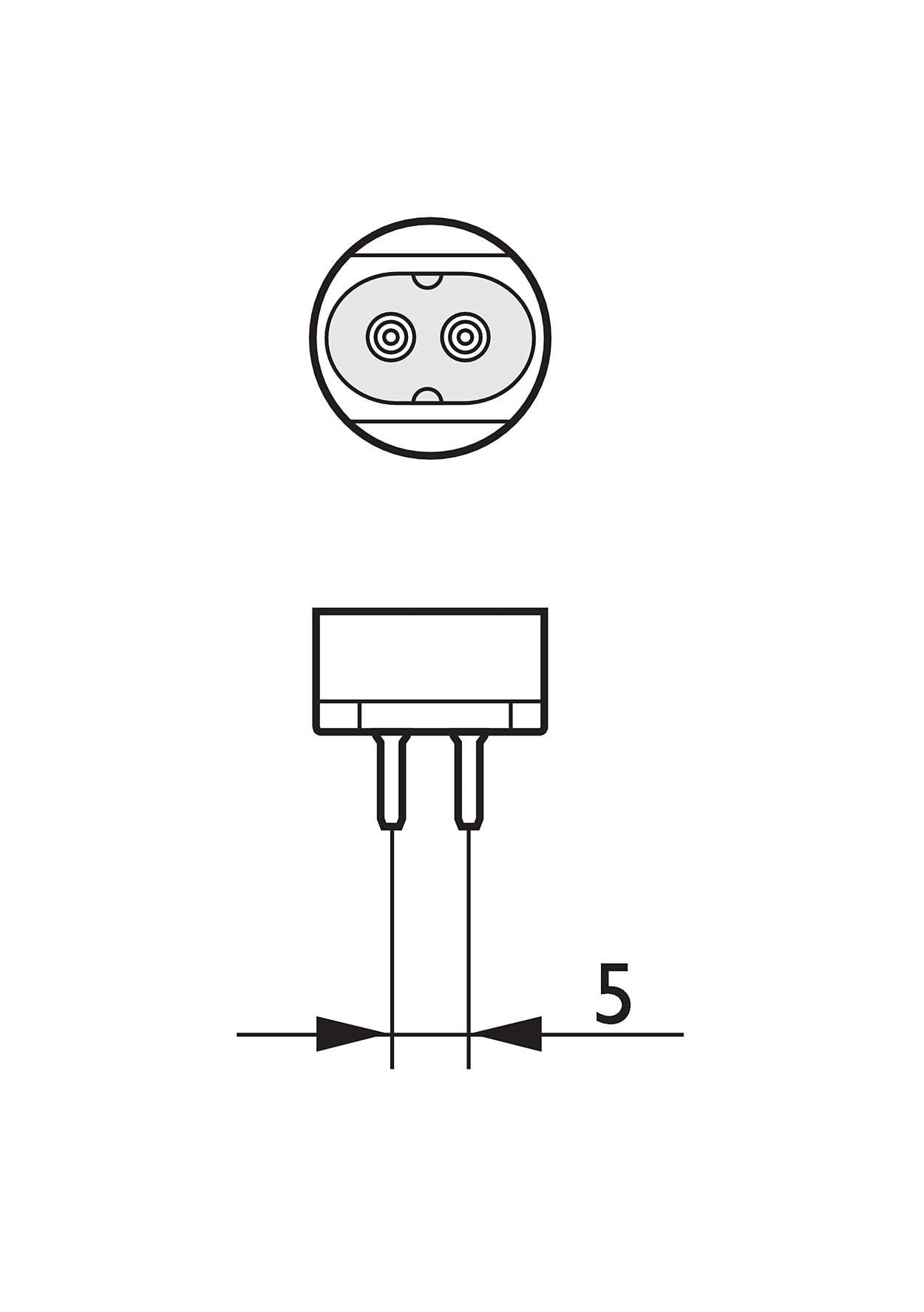

Cap-Base
G5
Bulb
T16
Main Application
Reprography
Useful Life
5000 hr
Life to 50% failures EM
10000 hr
Light Technical Characteristics
Color Code
10
Color Designation (text)
Actinic
Chromaticity Coordinate X
219 -
Chromaticity Coordinate Y
212 -
Depreciation 500 hours
17 %
Depreciation 1000 hours
25 %
Depreciation 2000 hours
35 %
Electrical Characteristics
Lamp Wattage
8 W
Lamp Wattage Technical
7.1 W
Lamp Voltage
56 V
Lamp Current
0.145 A
Environmental Characteristics
Mercury (Hg) Content
4.4 mg
UV-related Characteristics
UV-A Radiation 100hr (IEC)
1.60 W
UV-B/UV-A (IEC)
0.2 %

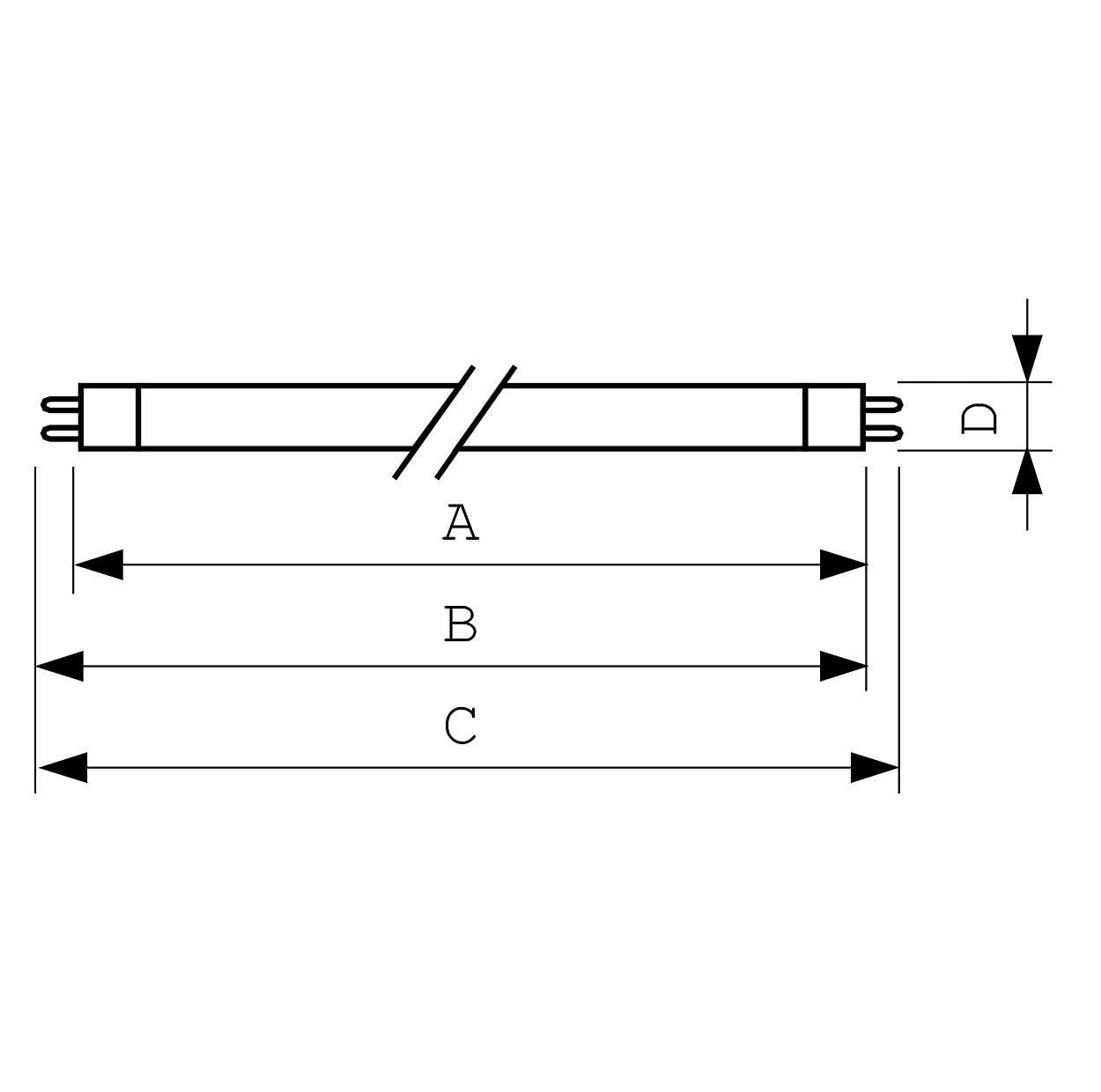

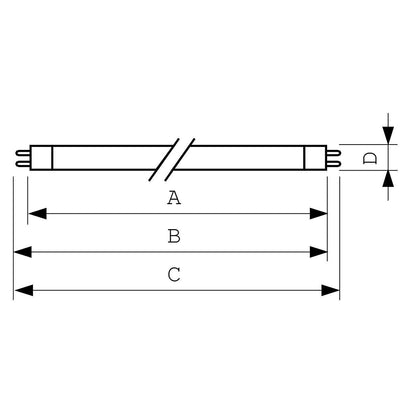

Product Dimensions
Base Face to Base Face A
288.3 (max) mm
Insertion Length B
293 (min), 295.4 (max) mm
Overall Length C
302.5 (max) mm
Diameter D
16 (max) mm
