Philips EBT 236 TLD UV Lamp Ballast/Choke (Qty. 3)

In Stock. Ships within 5 business days

Suitable for double UV lamp of:

• TUV 25W
• TUV 25W T5 4P SE
• TUV 30W
• TUV 36W
• TUV 36T54PSE
• TUV PLL 36W

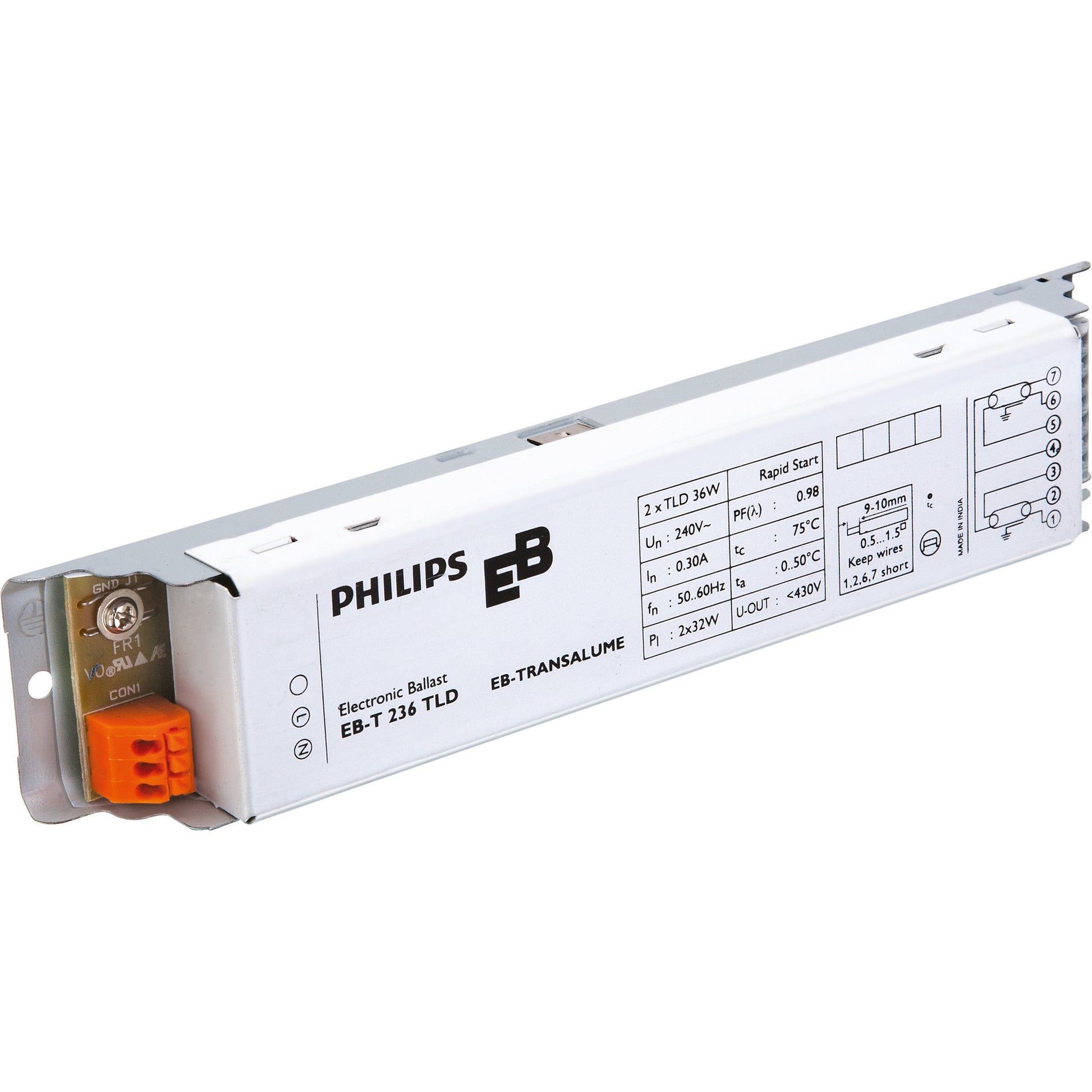

EB-T Electronic ballasts for TL-D lamps - EBT 236 TLD

Compact, lightweight, high-frequency electronic standard ballasts for TL-D 36 W/TL40 lamps.

Benefits

• The combination of Philips ballast and Philips lamps offers a standard professional lighting system that fulfills all international norms
• 25% energy saving compared with standard electromagnetic ballast system
• Protection against excessive mains voltage and incorrect terminal communications (e.g. output short)

Features

• Flicker-free pre-heat (rapid-start) lamp ignition enables the lamps to be switched on and off without reducing useful life
• Offers low mains-current harmonic distortion of <10%
• End-of-life protection
• Switching cycle 6500 times

General Information

• Automatic Restart Yes

Operating and Electrical

• Input Voltage 220 to 240 V
• Input Frequency 50 to 60 Hz
• Operating Frequency (Min) 42 kHz
• Ignition Method Rapid Start
• Crestfactor (Max) 1.7
• Power Factor 100% Load (Nom) 0.98
• Ignition Time (Max) 0.45 s
• Mains Voltage Performance (AC) 221-254V
• Mains Voltage Safety (AC) 216-264V
• Earth Leakage Current (Nom) 0.7 mA
• Constant Wattage Deviation Not specified
• Power Losses (Nom) 8 W

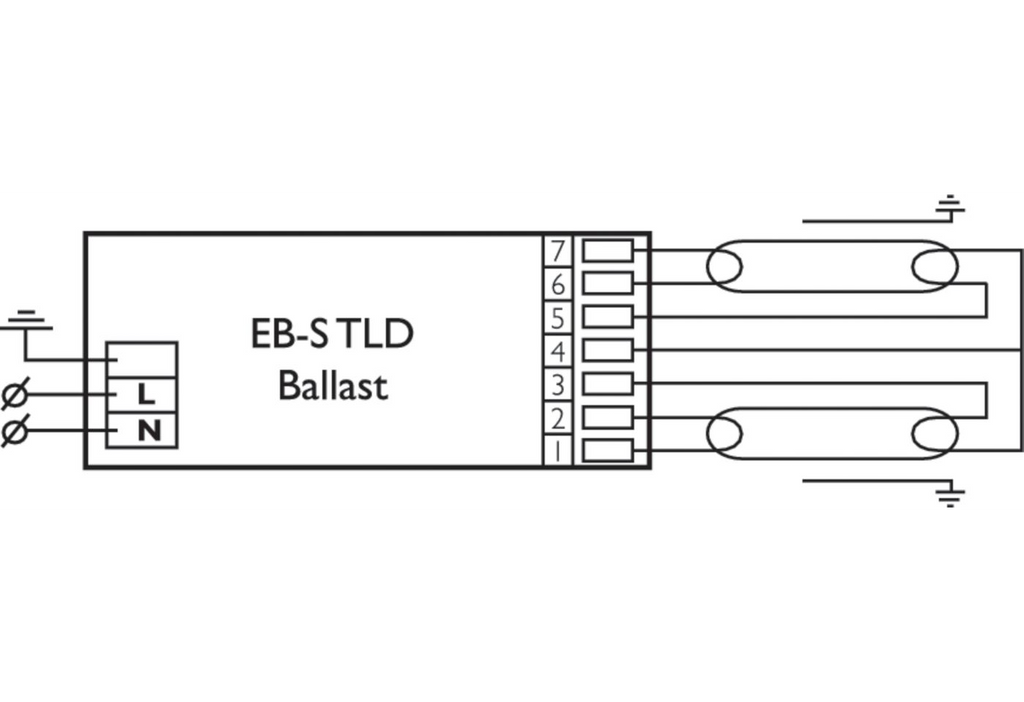

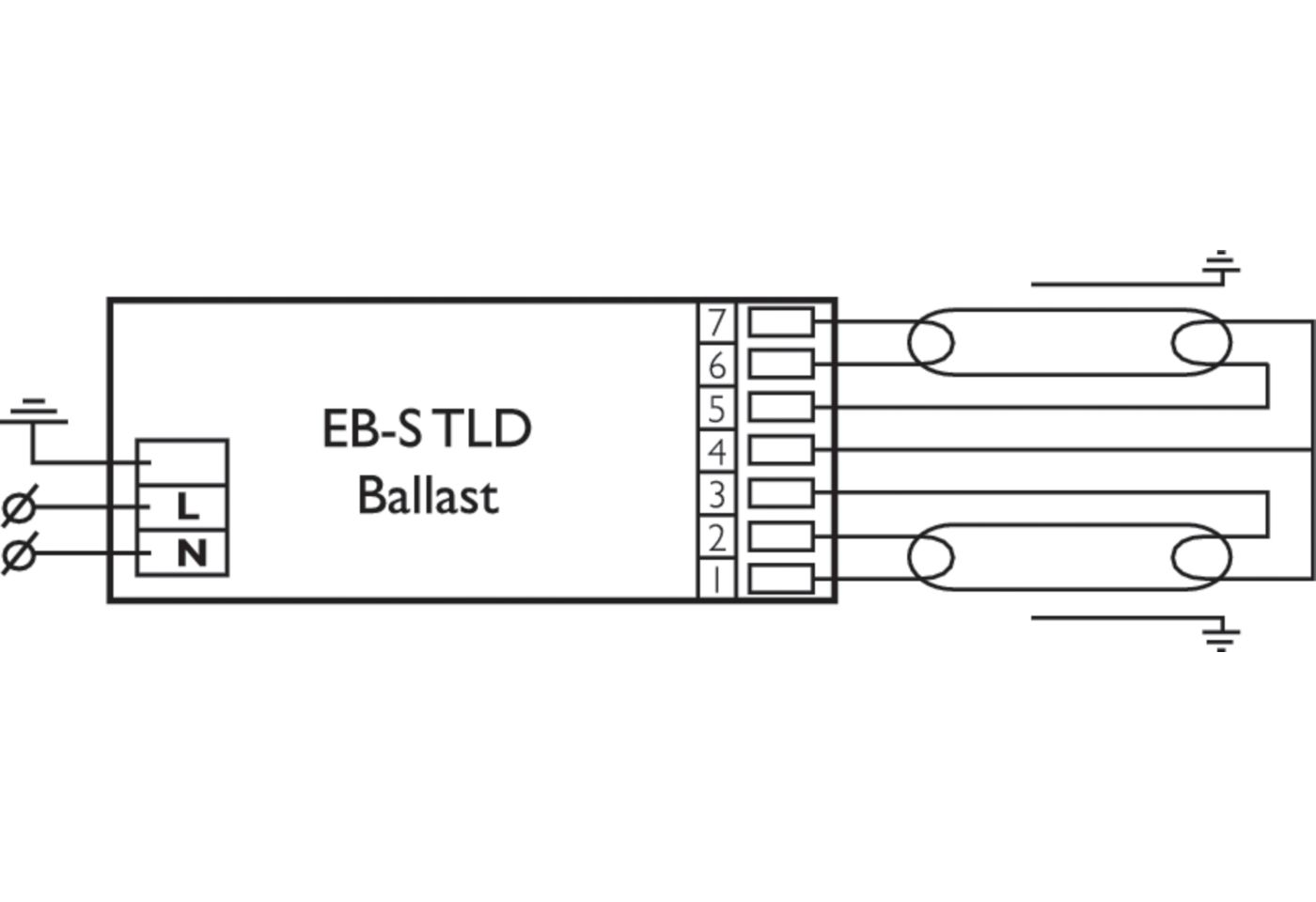

Wiring

• Connector Type Input Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
• Cable Capacity Output Wires Mutual (Nom) 150 pF
• Connector Type Output Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
• Wire Striplength 9.0-10.0 mm
• Input Terminal Cross Section 0.50-1.50 mm²
• Output Terminal Cross Section 0.50-1.50 mm²
• Cable Capacity Output Wires to Earth (Nom) 75 pF
• Connector Type Output Terminals WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]

System characteristics

• Rated Ballast-Lamp Power 36 W

Temperature

• T-Ambient (Max) 50 °C
• T-Ambient (Min) 0 °C
• T-Storage (Max) 85 °C
• T-Storage (Min) -40 °C
• T-Case Maximum (Max) 75 °C
• T-Ignition (Min) 0 °C

Emergency Operation

• Battery Voltage Lamp Ignition 198-254 V
• Battery Voltage Lamp Operation 176-254

Approval and Application

• Energy Efficiency Index A3
• EMI 9 kHz ... 30 MHz EN 55015 edition 7.1
• EMI 30 MHz ... 1000 MHz EN 55022
• Safety Standard IEC 61347-2-3
• Performance Standard IEC 60929
• Harmonic Current Emission Standard IEC 61000-3-2
• EMC Immunity Standard IEC 61547
• Vibration Standard IEC68-2-6 F c
• Bumps Standard IEC 68-2-29 Eb
• Humidity Standard EN 61347-2-3 clause 11
• Approval Marks CE marking S Mark
• Temperature Marking Not specified
• Hum And Noise Level Inaudible
• Net Weight (Piece) 0.205 kg
