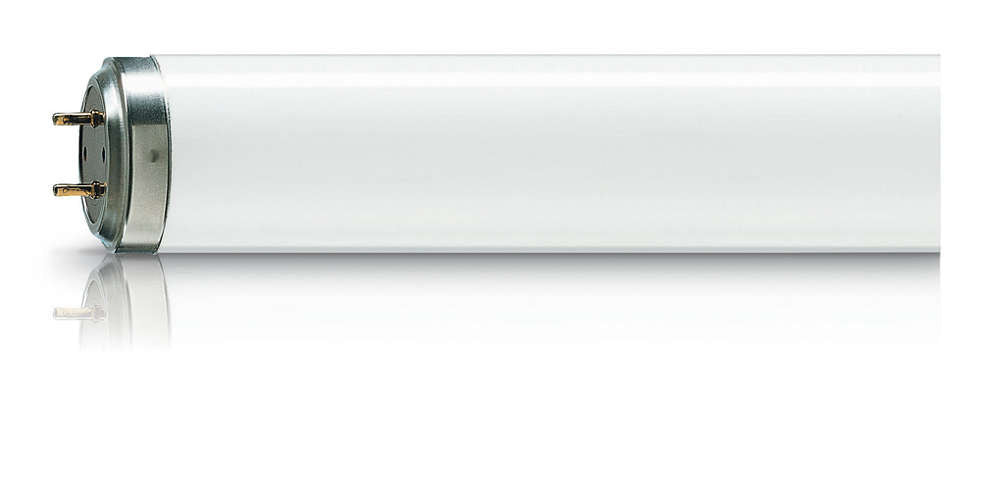

Philips Flexo Print TL 100W/10-R UV-A (Qty. 2)
Philips Flexo Print TL 100W/10-R UV-A (Qty. 2)
Philips Flexo Print TL 100W/10-R UV-A (Qty. 2)
Philips Flexo Print TL 100W/10-R UV-A (Qty. 2)
Philips Flexo Print TL 100W/10-R UV-A (Qty. 2)

Philips Flexo Print TL 100W/10-R UV-A (Qty. 2)

Regular price Rs. 2,030.00

In Stock. Ships within 5 business days

Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp

UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp

UV Quartz Sleeve for safety is also available for this UV lamp

Philips TL 100W/10-R UV-A

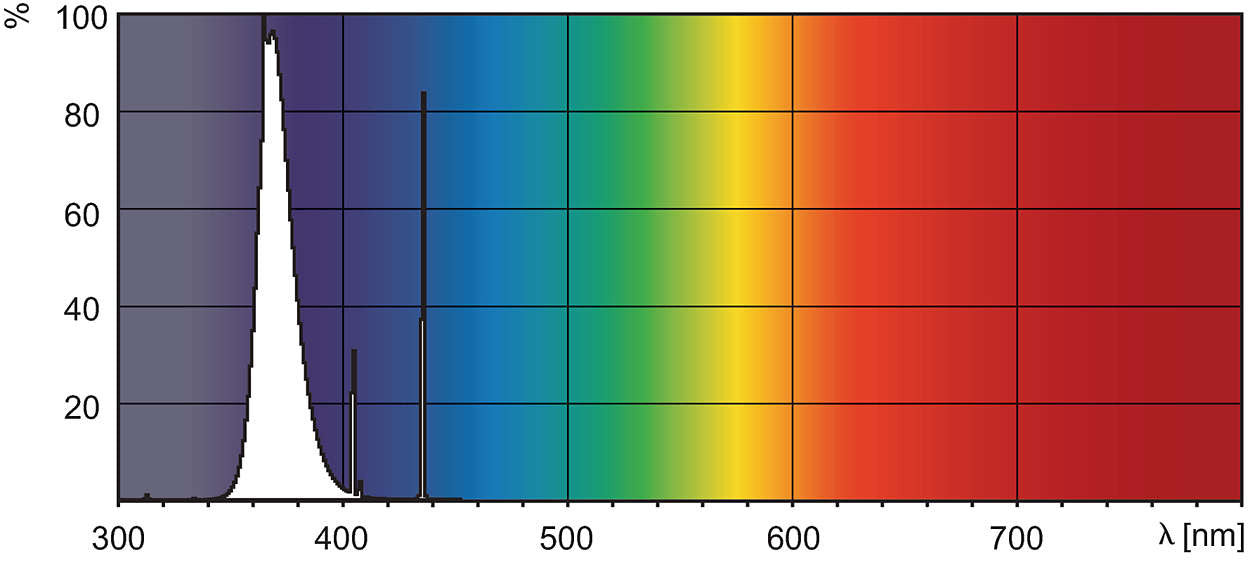

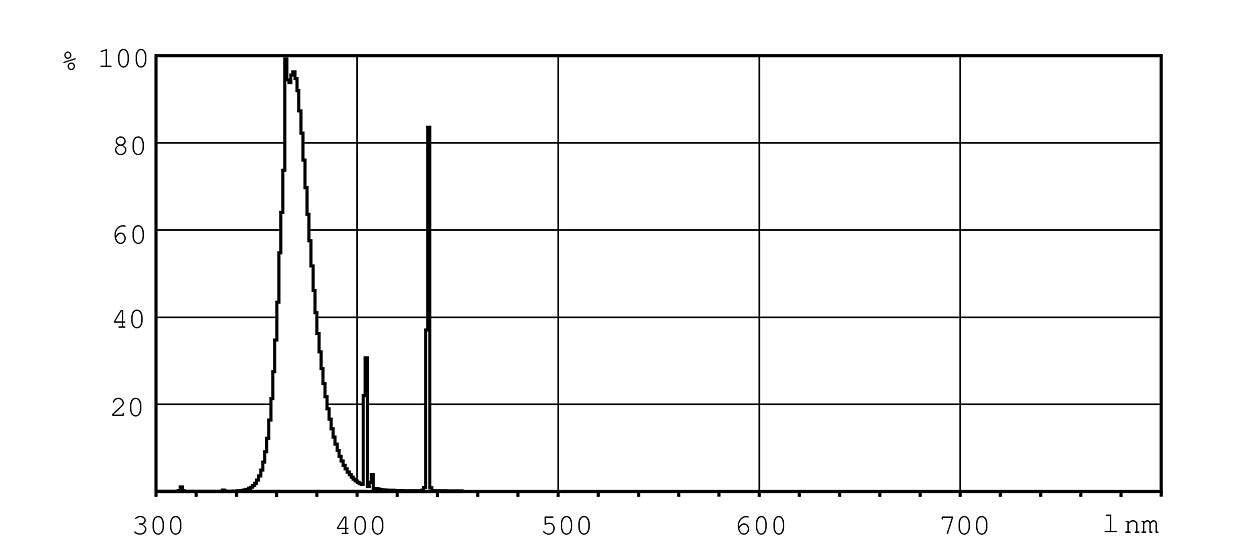

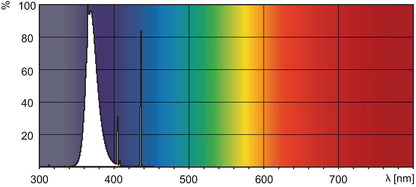

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200- degree reflector to further optimize the lamp’s overall efficiency.

General Characteristics

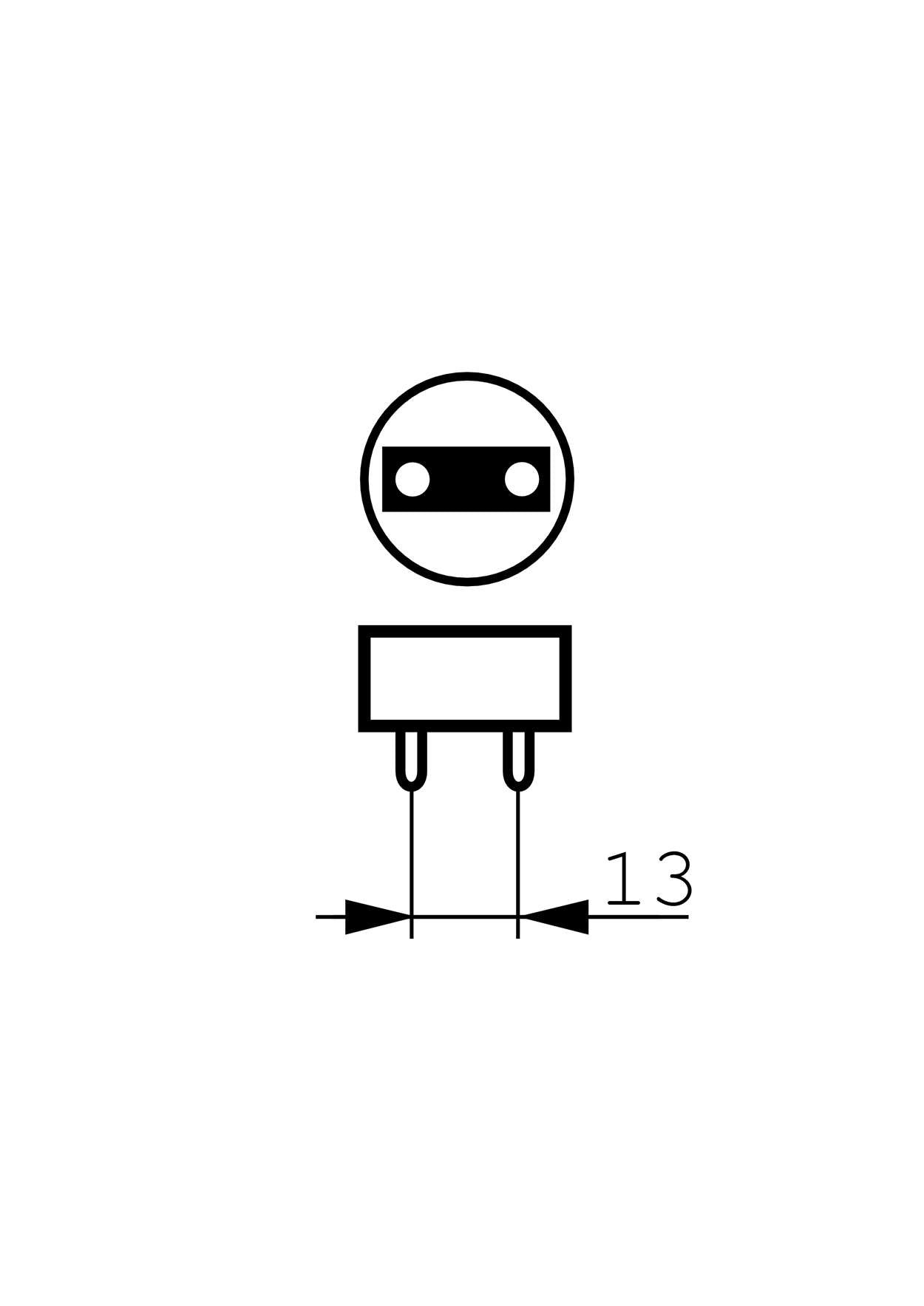

Cap-Base
G13
Bulb
T38
Main Application
Phototherapy
Useful Life
1000 hr
Life to 50% failures EM
2000 hr
Light Technical Characteristics
Color Code
10-R
Color Designation (text)
Ultra Violet A
Chromaticity Coordinate X
220 -
Chromaticity Coordinate Y
200 -
Depreciation 500 hours
10 %
Depreciation 5000 hours
%
Depreciation 1000 hours
20 %
Depreciation 2000 hours
30 %
Electrical Characteristics
Lamp Wattage
100 W
Lamp Wattage Technical
100 W
Lamp Voltage
122 V
Lamp Current
0.97 A
Environmental Characteristics
Mercury (Hg) Content
13.0 mg
UV-related Characteristics
UV-A Radiation 100hr (IEC)
26.0 W
UV-B/UV-A (IEC)
0.1 %
UV-A Radiation 0hr (IEC)
28.0 W

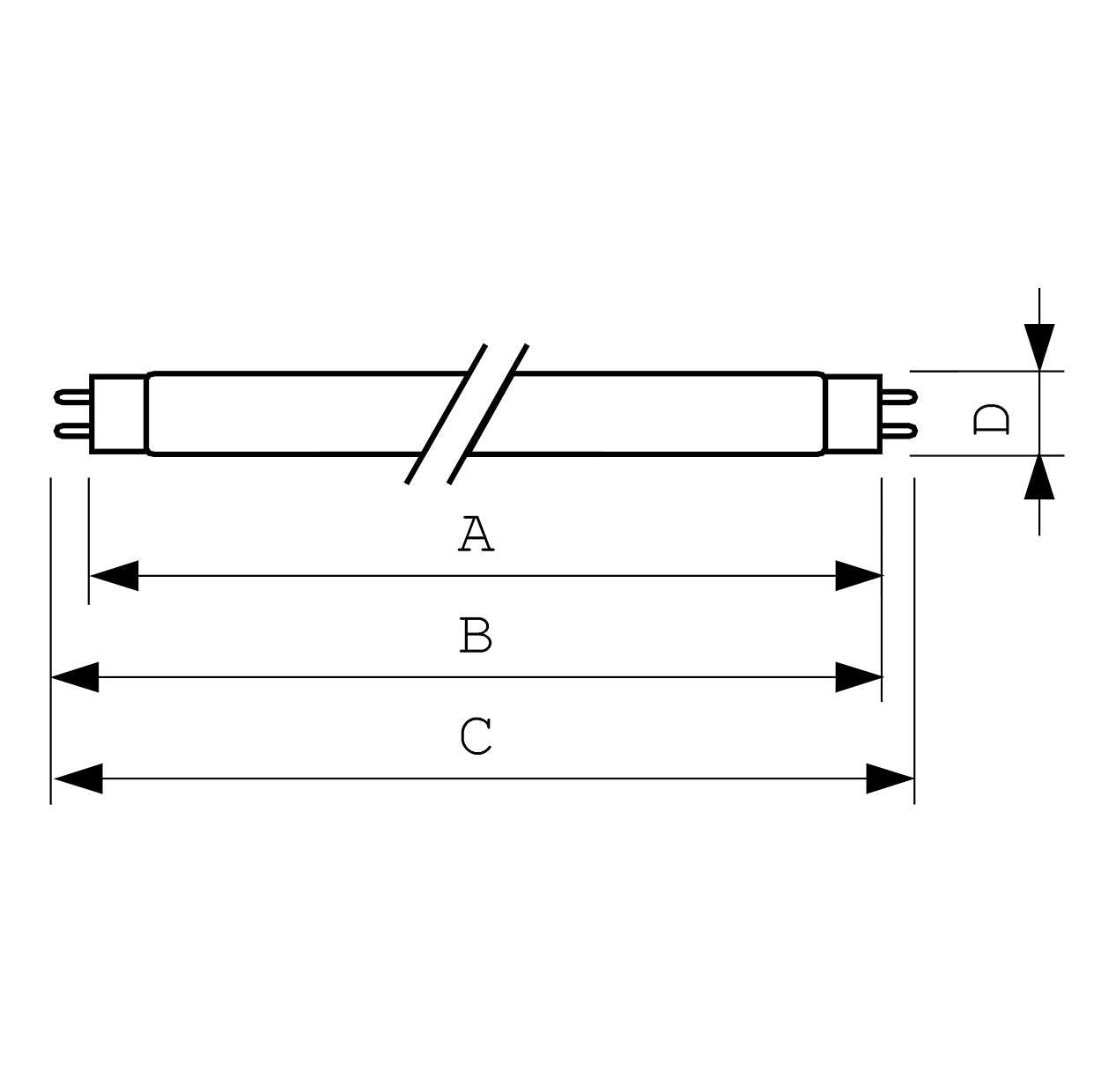

Product Dimensions
Base Face to Base Face A
1763.8 (max) mm
Insertion Length B
1768.5 (min), 1770.9 (max) mm
Overall Length C
1778 (max) mm
Diameter D
40.5 (max) mm
