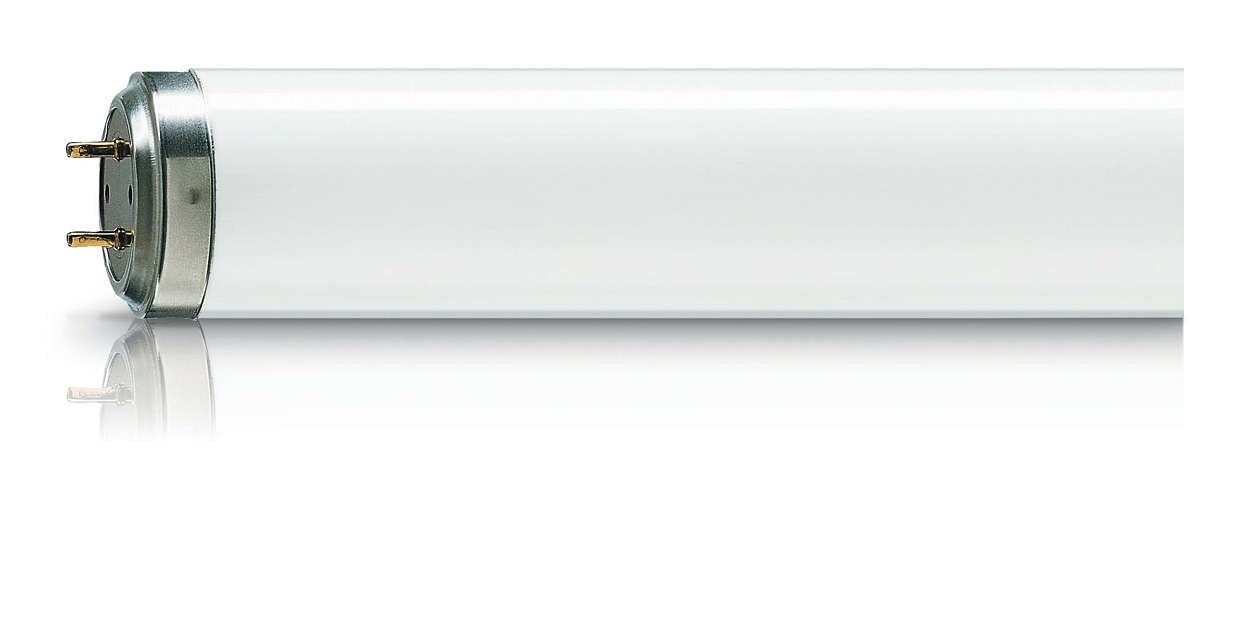

Philips Flexo Print TL 140W/03

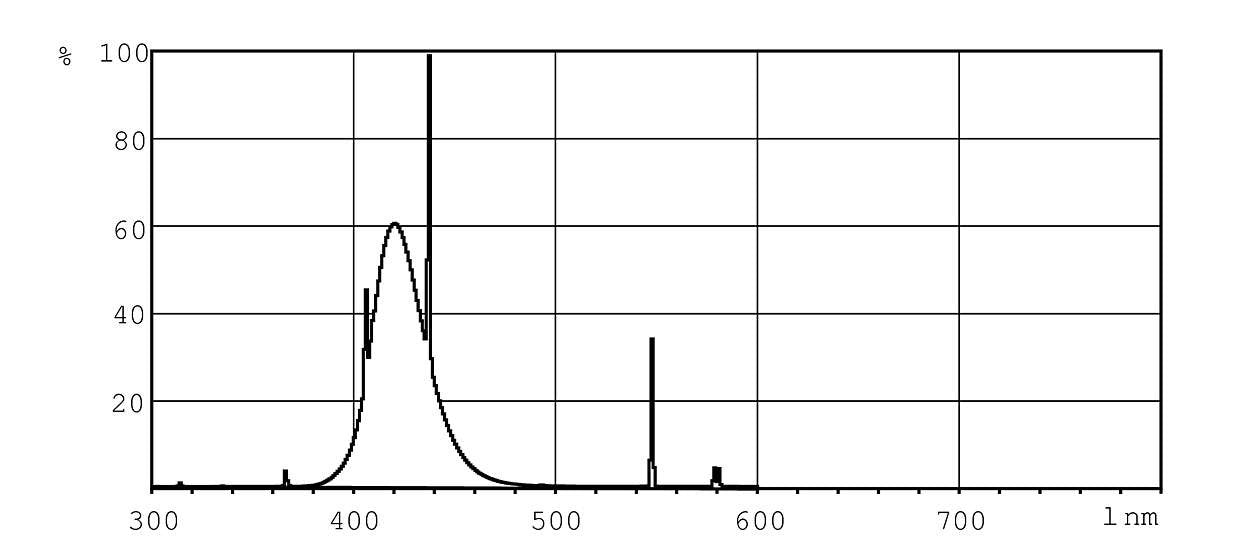

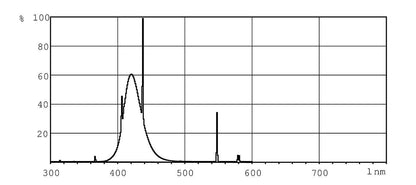

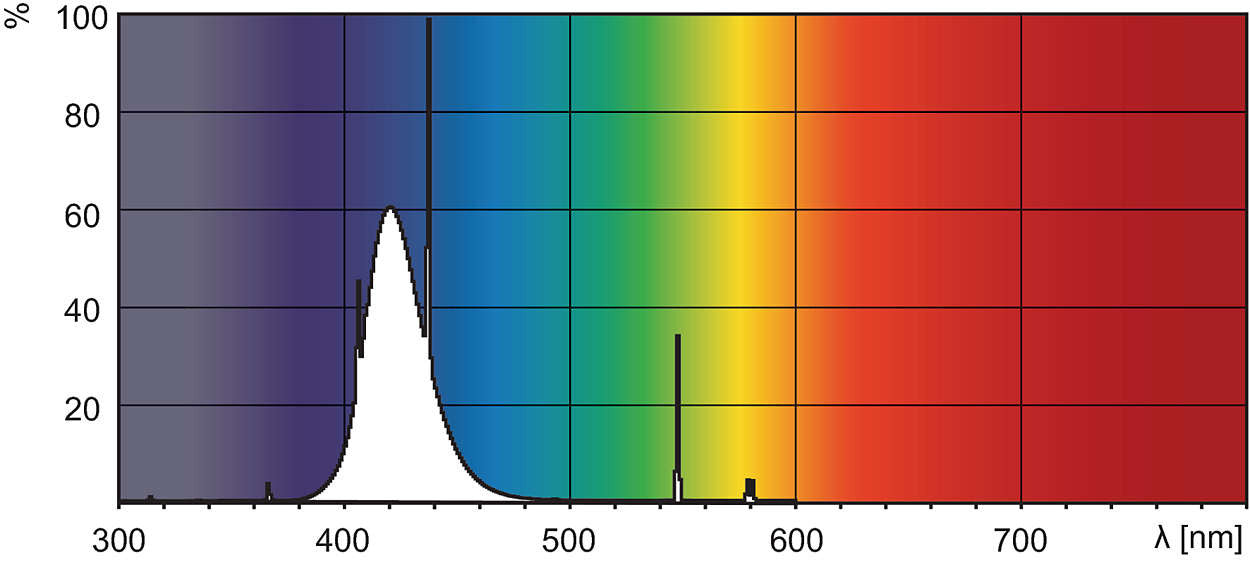

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200- degree reflector to further optimize the lamp’s overall efficiency.

Benefits

  • Best match with photo sensitizers
  • Highest output on irradiated area

Features

  • Emit radiation in the range 380-480 nm with a maximum at 370 nm
  • Internal reflector

Applications

  • Flexoprint reprograhic equipment, Diazo copying machines
General Characteristics

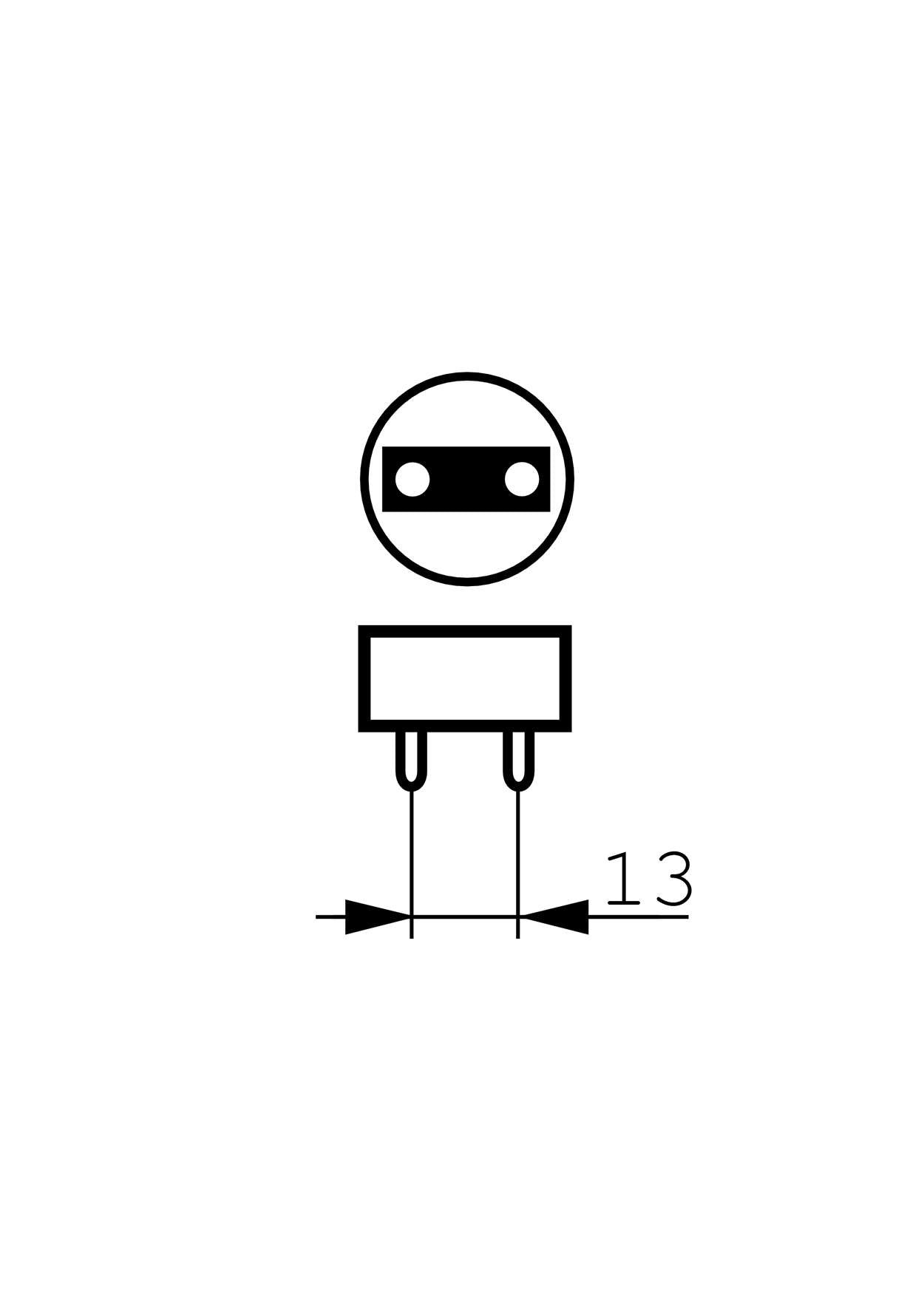

Cap-Base
G13
Bulb
T38
Main Application
Reprography
Useful Life
3000 hr
Life to 50% failures EM
5000 hr
Light Technical Characteristics
Color Code
03
Color Designation (text)
Super Actinic
Chromaticity Coordinate X
175 -
Chromaticity Coordinate Y
45 -
Depreciation 500 hours
20 %
Depreciation 1000 hours
30 %
Depreciation 2000 hours
40 %
Electrical Characteristics
Lamp Wattage
140 W
Lamp Wattage Technical
142 W
Lamp Voltage
118 V
Lamp Current
1.46 A
Mains Voltage Stable Operation
30.4 W
UV-related Characteristics
UV-A Radiation 100hr (IEC)
1.00 W

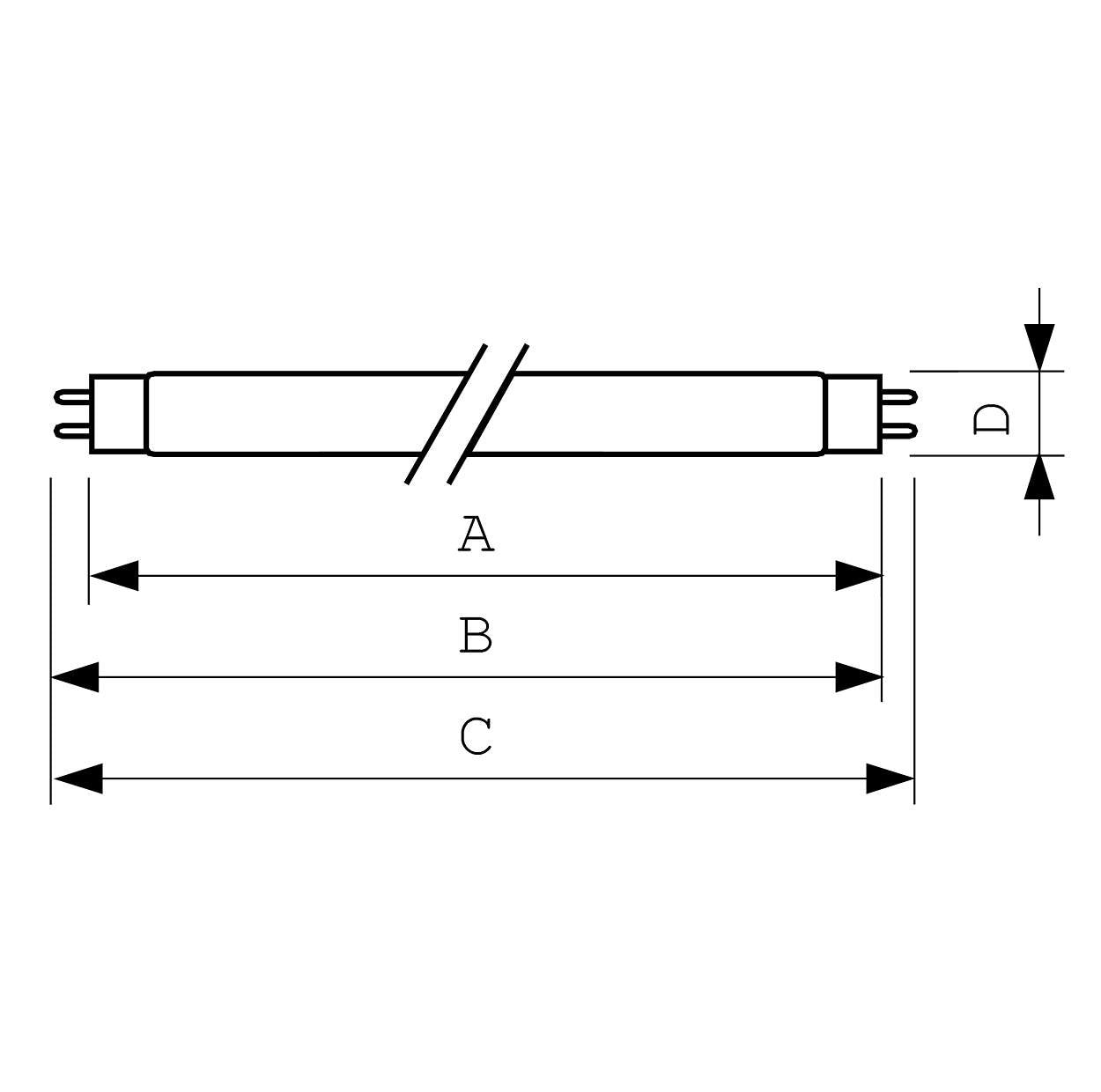

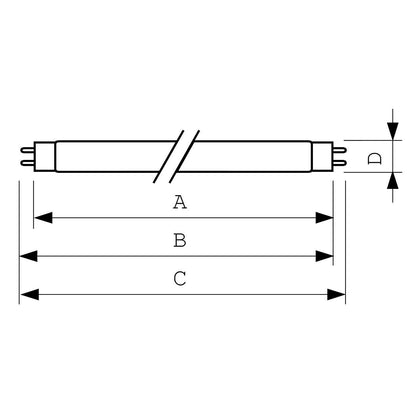

Product Dimensions
Base Face to Base Face A
1500 (max) mm
Insertion Length B
1504.7 (min), 1507.1 (max) mm
Overall Length C
1514.2 (max) mm
Diameter D
40.5 (max) mm
