Philips TL 60W/10-R SLV/25 Flexo Print (Qty. 3)

In Stock. Ships within 5 business days

Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp

UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp

UV Quartz Sleeve for safety is also available for this UV lamp

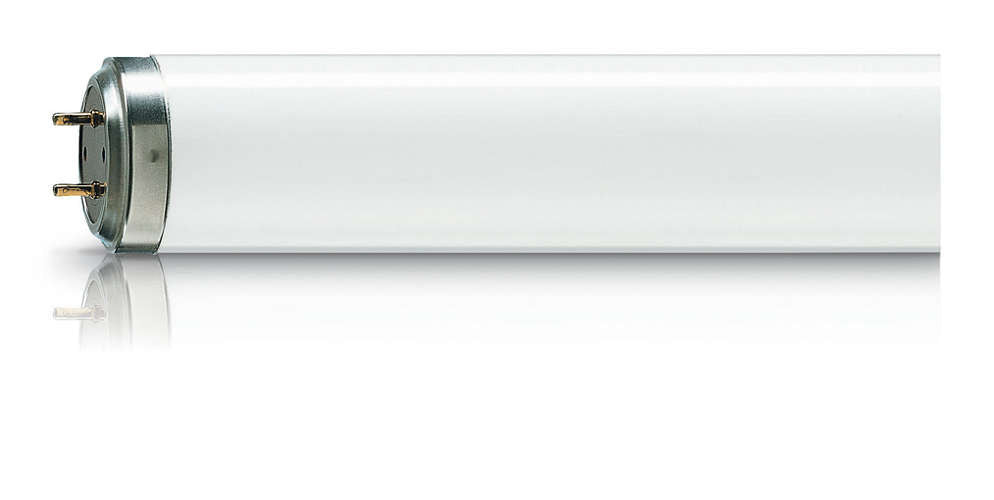

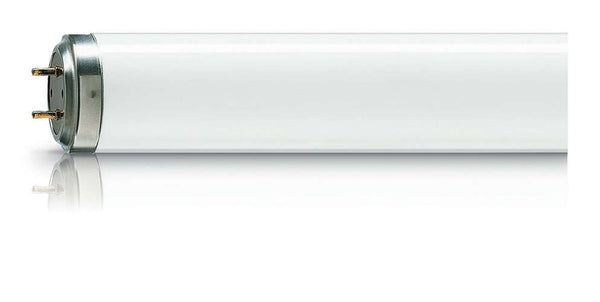

Flexo Print TL 60W/10-R 1SL

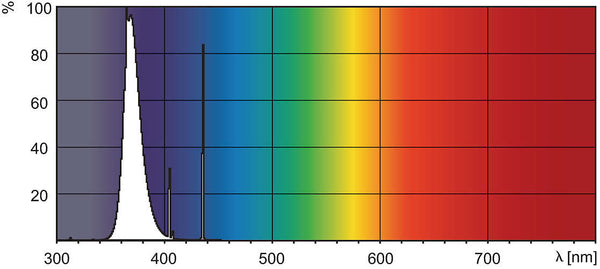

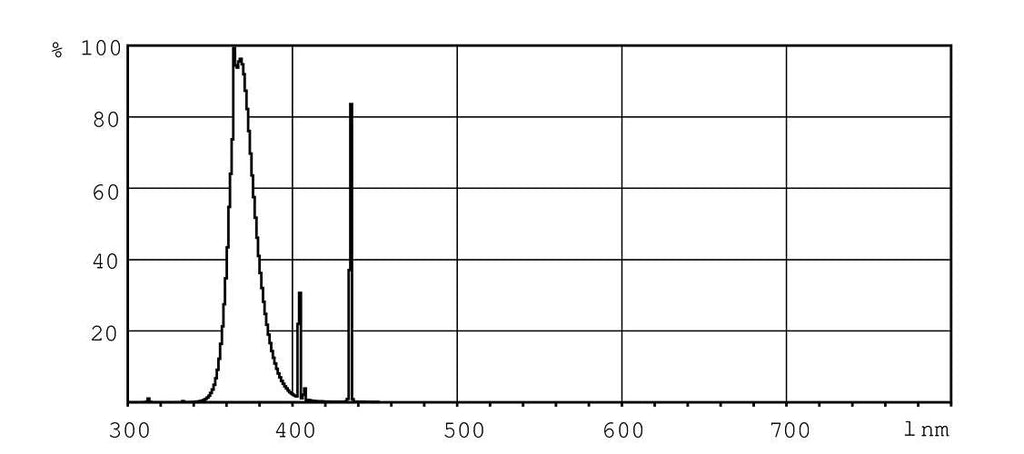

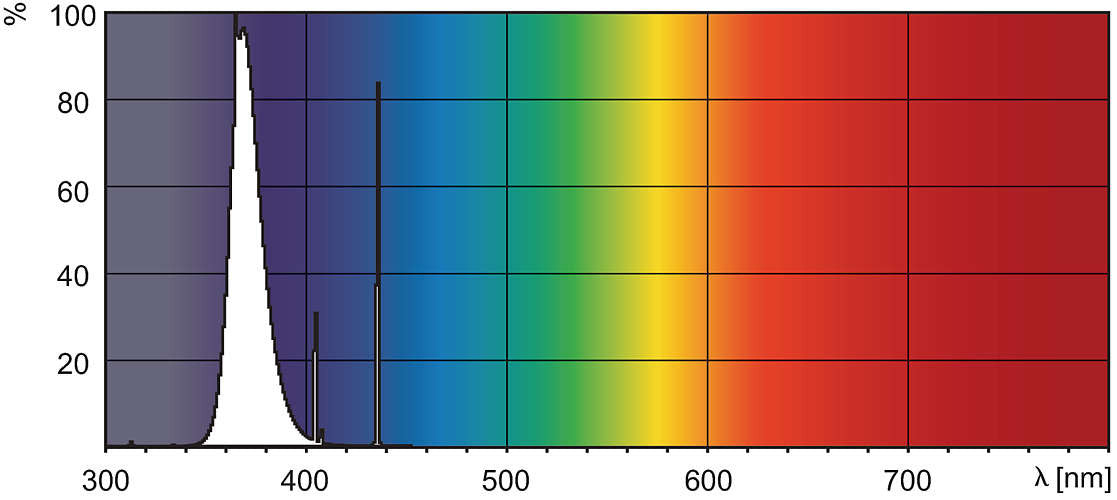

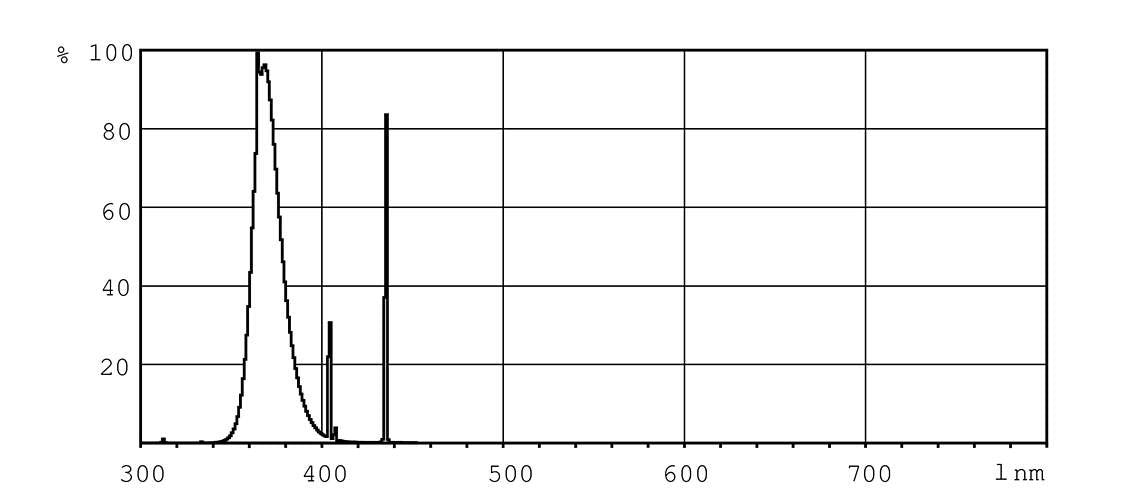

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200- degree reflector to further optimize the lamp’s overall efficiency.

Benefits

• Best match with photo sensitizers
• Highest output on irradiated area

Features

• Emit radiation in the range 380-480 nm with a maximum at 370 nm
• Internal reflector

Applications

• Flexoprint reprograhic equipment, Diazo copying machines

Specifications

General Characteristics

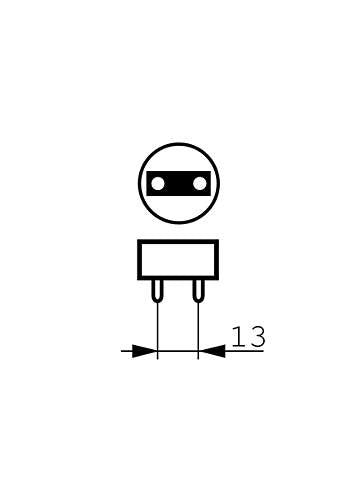

Cap-Base	G13
Bulb	T38
Main Application	Reprography

Useful Life

1000 hr

Light Technical Characteristics

Color Code	10-R
Color Designation (text)	Ultra Violet A
Chromaticity Coordinate X	222 -
Chromaticity Coordinate Y	210 -

Depreciation 500 hours	10 %
Depreciation 1000 hours	15 %
Depreciation 2000 hours	30 %

Electrical Characteristics

Lamp Wattage	60 W
Lamp Wattage Technical	62 W

Lamp Voltage	102 V
Lamp Current	0.7 A

Environmental Characteristics

Mercury (Hg) Content

13.0 mg

UV-related Characteristics

UV-A Radiation 100hr (IEC)

15.8 W

UV-B/UV-A (IEC)

0.1 %

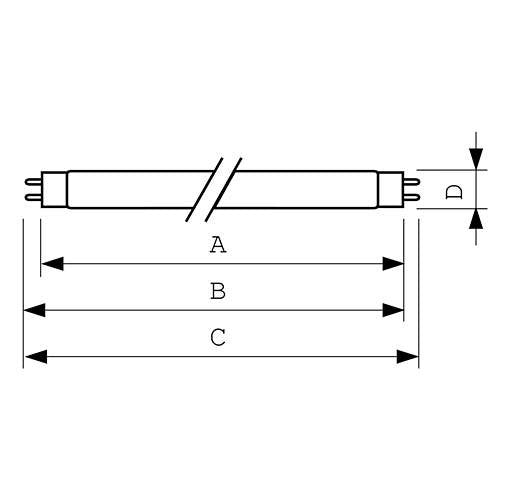

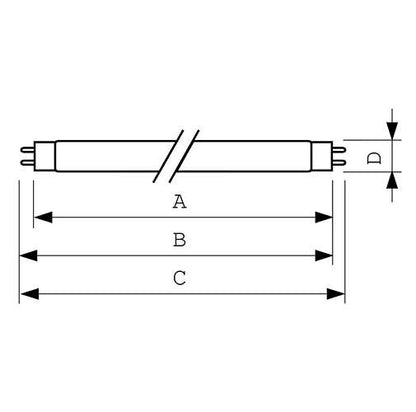

Product Dimensions

Base Face to Base Face A	1199.4 (max) mm
Insertion Length B	1204.1 (min), 1206.5 (max) mm

Overall Length C	1213.6 (max) mm
Diameter D	40.5 (max) mm
