Philips 7158 150W G6.35 24V 1CT Halogen Non-Reflector (Qty. 6)
Philips 7158 150W G6.35 24V 1CT Halogen Non-Reflector (Qty. 6)
Couldn't load pickup availability
Available. Ships within 1-2 weeks
Compatible lampholder to prevent premature failure of lamp is also available for this lamp

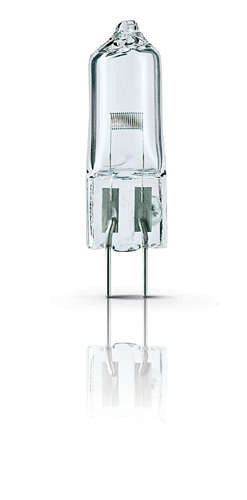

Philips Halogen Non-Reflector 7158 150W G6.35 24V 1CT
Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 – the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.
Benefits
- Optimal beam performance
- Constant light output throughout lifetime
- 100% Color Rendering Index (CRI)
Features
- Distortion-free, quartz bulb and precisely defined filament position
- Flat filament available
- Lamp replacement without adjustment
- XHP version with xenon gas for maximum light output
Applications
- Studio, film, theatre and disco lighting
- Microscopes
- Slide and film viewers
- Microfilm readers
- Spectrography
- Slide, overhead, profile and 8/16 mm film projectors
- Optical equipment
- Surgery lamps
- Dental lamps
General Characteristics
| Philips Code |
7158
|
| ANSI Code |
FCS
|
| LIF Code |
A1/216
|

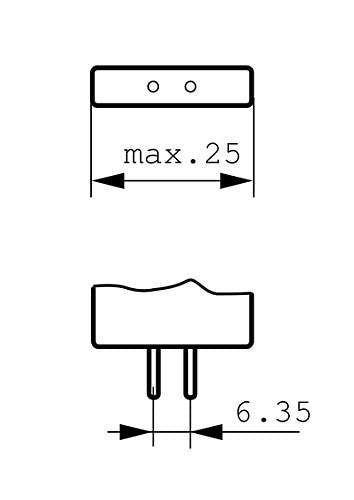

| Cap-Base |
G6.35
|
| Bulb Material |
Quartz-UV Open
|
| Filament Shape |
Flat
|
| Operating Position |
s90
|
| Main Application |
Projection
|
| Life to 50% failures |
50 hr
|
| Color Rendering Index |
100 Ra8
|
| Color Temperature Technical |
3400 K
|
| Luminous Flux Lamp |
5200 Lm
|
| Lamp Wattage |
150 W
|
| Voltage |
24 V
|
| Pinch Temperature |
400 (max) C
|
| Bulb Temperature |
900 (max) C
|

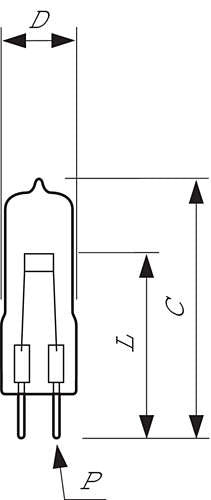

| Overall Length C |
mm
|
| Diameter D |
13.5 (max) mm
|
| Light Center Length L |
31.75 (min), 32 (nom), 32.25 (max) mm
|
| Pin Diameter P |
0.95 (min), 1 (nom), 1.05 (max) mm
|
| Filament Dimensions (WxH) [mm] |
5.8x2.9
|
| Order code |
923870520503
|
| Full product code |
923870520503
|
| Full product name |
7158 150W G6.35 24V 1CT
|
| Order product name |
7158 150W G6.35 24V 1CT/10X10F
|
| Pieces per pack |
1
|
| Packing configuration |
10X10F
|
| Packs per outerbox |
100
|
| Bar code on pack - EAN1 |
8711500409836
|
| Bar code on intermediate packing - EAN2 |
8711500420053
|
| Bar code on outerbox - EAN3 |
8711500423122
|
| Logistic code(s) - 12NC |
923870520503
|
| Net weight per piece |
0.004 kg
|
