Philips 5995 EJM 150W GX5.3 21V 1CT Halogen Reflector (Qty. 3)
In Stock. Ships within 2 business days
Compatible lampholder to prevent premature failure of lamp is also available for this lamp

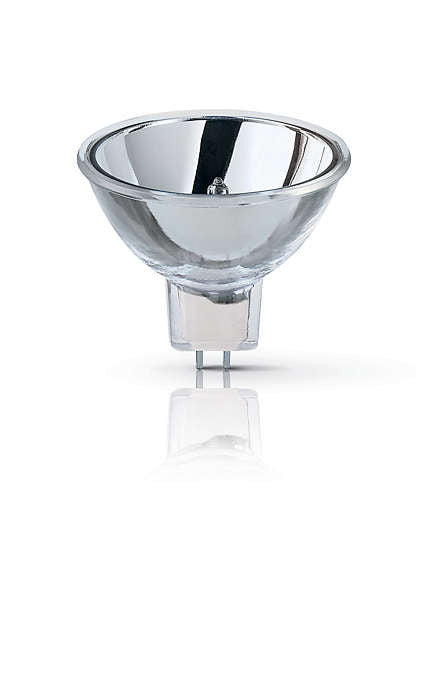

Philips Halogen Reflector 5995 EJM 150W GX5.3 21V 1CT
Philips’ halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special blue-filter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.
Benefits
- Optimal light performance
- Remains within temperature limits
- No re-alignment necessary when lamp is replaced
Features
- Excellent distortion-free quartz bulb
- Dichroic coating ensures dissipation of approximately 75% of the generated heat backwards
Applications
- Medical endoscopy
- Fiber optic illumination
- Projection systems
- Spectrography
- Industrial endoscopy
- Dental curing
- Microfiche
General Characteristics
Philips Code |
5995
|
ANSI Code |
EJM
|
LIF Code |
-
|
Cap-Base |
GX5.3
|
Bulb Material |
Quartz-UV Open
|
Reflector Finish |
Smooth
|
Operating Position |
s90
|
Main Application |
Projection
|
Life to 50% failures |
40 hr
|
Color Rendering Index |
100 Ra8
|
Color Temperature Technical |
3400 K
|
Luminous Flux Lamp |
1200 Lm
|
Curing Power Area 330-490nm |
mW/cm2
|
Curing Power Area 400-500nm |
mW/cm2
|
Lamp Wattage |
150 W
|
Voltage |
21 V
|
Dimmable |
Yes
|
Pinch Temperature |
400 (max) C
|
Bulb Temperature |
900 (max) C
|
Working Distance WD |
38 mm
|

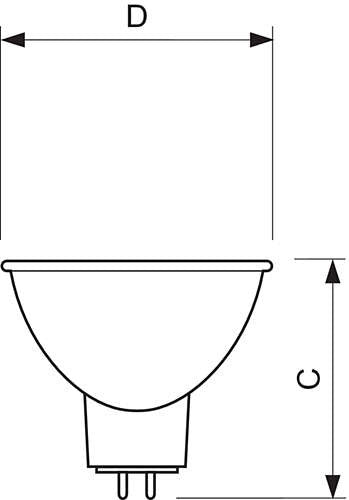

Overall Length C |
44.45 (max) mm
|
Diameter D |
50.67 (max) mm
|
Light Center Length L |
mm
|

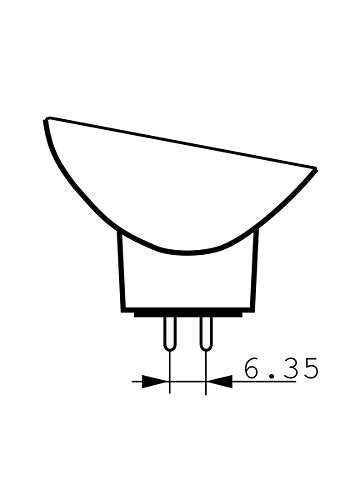

Pin Diameter P |
mm
|
Filament Dimensions (WxH) [mm] |
-
|
Order code |
923921019894
|
Full product code |
923921019894
|
Full product name |
5995 EJM 150W GX5.3 21V 1CT
|
Order product name |
5995 EJM 150W GX5.3 21V 1CT/24
|
Pieces per pack |
1
|
Packing configuration |
24
|
Packs per outerbox |
24
|
Bar code on pack - EAN1 |
8711500410634
|
Bar code on outerbox - EAN3 |
8711500419033
|
Logistic code(s) - 12NC |
923921019894
|
Net weight per piece |
0.025 kg
|
