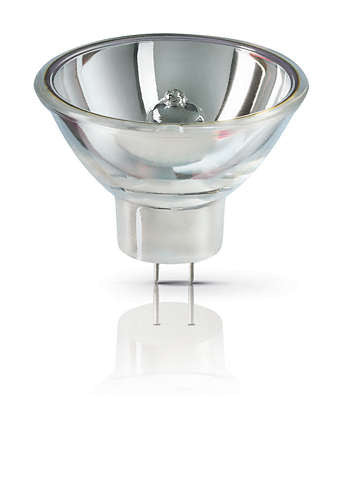

Philips Halogen Reflector 6423 150W GZ6.35 15V 1CT

Regular price Rs. 3,510.00

In Stock. Ships within 2 business days.

Note: Pricing is for Qty. 5 of the lamp.

Philips’ halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special blue-filter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.

General Characteristics

Philips Code
6423
ANSI Code
EFR
LIF Code
A1/232

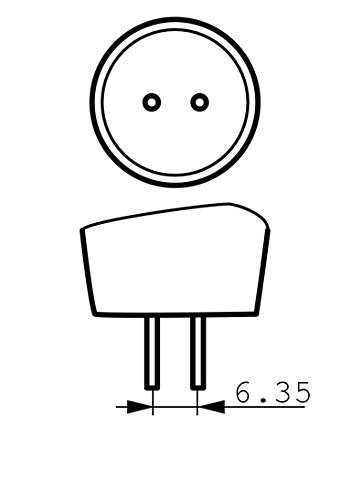

Cap-Base
GZ6.35
Bulb
R50
Bulb Material
Quartz-UV Open
Reflector Finish
Smooth
Operating Position
s105
Main Application
Projection
Life to 50% failures
50 hr
Light Technical Characteristics
Color Rendering Index
100 Ra8
Color Temperature Technical
3400 K
Luminous Flux Lamp
340 Lm
Curing Power Area 330-490nm
mW/cm2
Curing Power Area 400-500nm
mW/cm2
Electrical Characteristics
Lamp Wattage
150 W
Voltage
15 V
Dimmable
Yes
Luminaire Design Requirements
Pinch Temperature
400 (max) C
Bulb Temperature
900 (max) C
Working Distance WD
32 mm

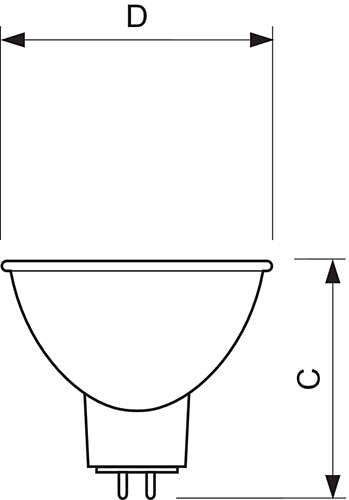

Product Dimensions
Overall Length C
42 (max) mm
Diameter D
50 (max) mm
Light Center Length L
mm
Pin Diameter P
mm
Filament Dimensions (WxH) [mm]
-
Product Data
Order code
923916818504
Full product code
923916818504
Pieces per pack
1
Packing configuration
10X5F
Packs per outerbox
50
Bar code on pack - EAN1
8711500427335
Bar code on intermediate packing - EAN2
8711500440556
Bar code on outerbox - EAN3
8711500427342
Logistic code(s) - 12NC
923916818504
Net weight per piece
0.023 kg
