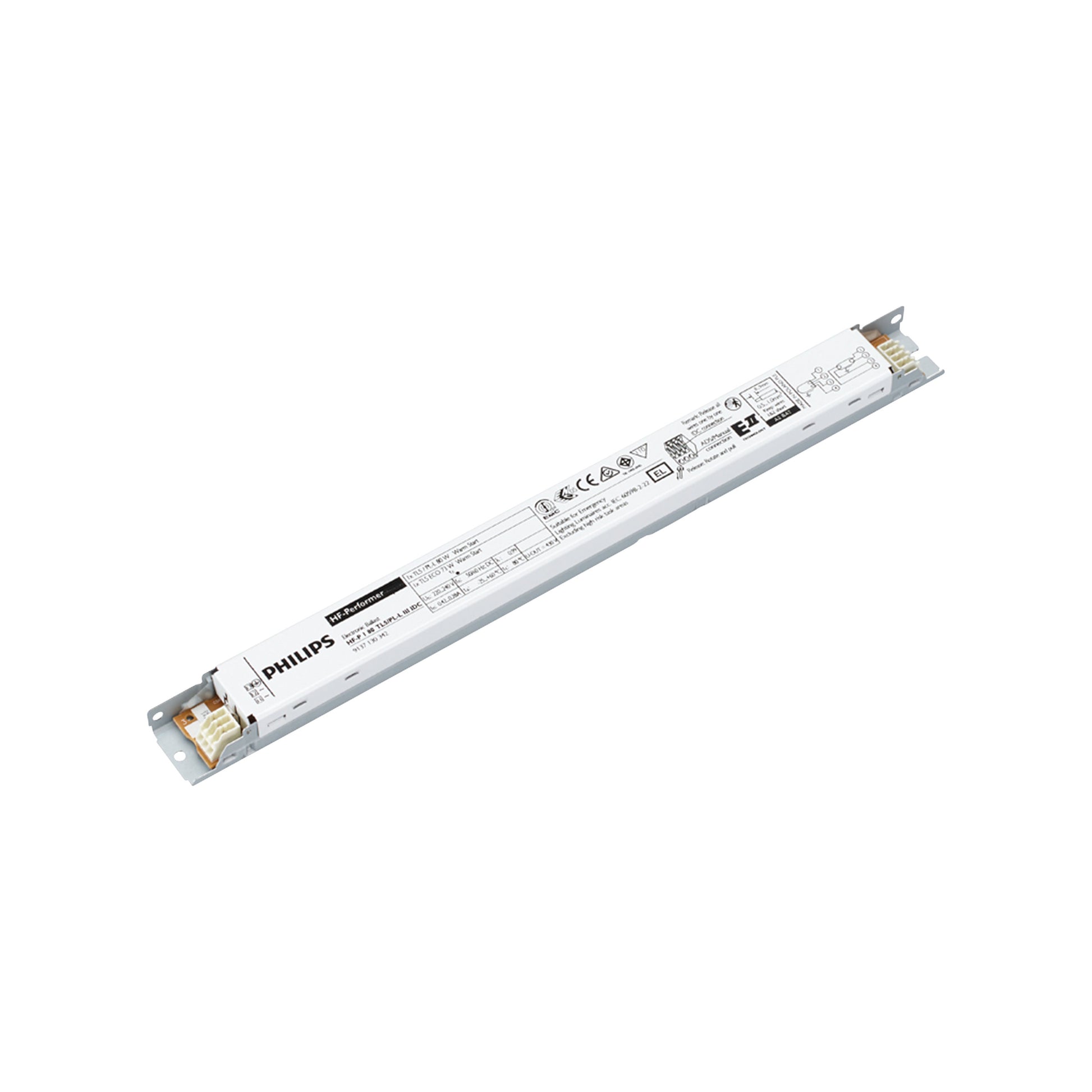

Philips HF-P 180 TL5 III 220-240V 50/60Hz UV Lamp Ballast/Choke
In Stock. Ships within 5 business days
Suitable for single UV lamp of:
- TUV 75W HO
- TUV 64T5 HE 4P SE
HF-Performer III for TL5 lamps - HF-P 180 TL5 III 220-240V 50/60Hz
HF-Performer III TL5 ballasts offer maximum versatility and meet all of the necessary commercial grade specifications. They also offer the added benefits of lamp striation reduction technology. As such, these ballasts are part of an overall high-efficiency lighting system that may help you or your customers to achieve any international or local energy code you need to comply with. HF-Performer III TL5 ballasts are the ideal choice for a broad range of new construction and retrofit applications within the commercial sector, including general surface mounting or office lighting, parking garages, warehouses, waterproof and other applications.;The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application.
Benefits
- Exceptional energy efficiency with striation-reduction technology in lighting systems at lower temperatures
- Maximum reliability in system operation
- Multi-power technology for precise operation of multiple lamp types of various wattages
Features
- Highest CELMA Energy Efficiency Index A2 BAT
- Complies with CE, ENEC, EL, VDE-EMC, CCC marks of conformity
- Average nominal service lifetime over 100,000 hours (at Ta 50 °C) with a failure rate ≤ 0.1 % per 1,000 hours)
- Optimized lamp preheating for over 50,000 On/Off switch operations without replacement of lamps
Applications
- Suitable for DC operation and emergency lighting installations; full compliance with requirements for emergency lighting according to EN 61347-2-3 -annex J
- Extended lamp life in frequent-switching applications, e.g. where occupancy sensors or motion detectors are used
- For luminaires of protection class I and protection class II used in hospitals and industrial premises
General Information
- Application Code III
- Type Version IDC
- Number of Products on MCB (16A Type B) (Nom) 20
- Automatic Restart Yes
Operating and Electrical
- Input Voltage 220 to 240 V
- Input Frequency 50 to 60 Hz
- Operating Frequency (Nom) 45 kHz
- Ignition Method Programmed Start
- Crestfactor (Max) 1.7
- Power Factor 100% Load (Nom) 0.99
- Ignition Time (Max) 0.9 s
- Mains Voltage Performance (AC) -8%-+6%
- Mains Voltage Safety (AC) -10%-+10%
- Earth Leakage Current (Nom) 0.5 mA
- Inrush Current Width 0.30 ms
- Constant Wattage Deviation -2%/+2%
- Ballast Factor (Nom) 1
- Power Factor (Nom) 0.99
- Power Losses (Nom) 4-4.5 W
- Inrush Current Peak (Max) 24 A

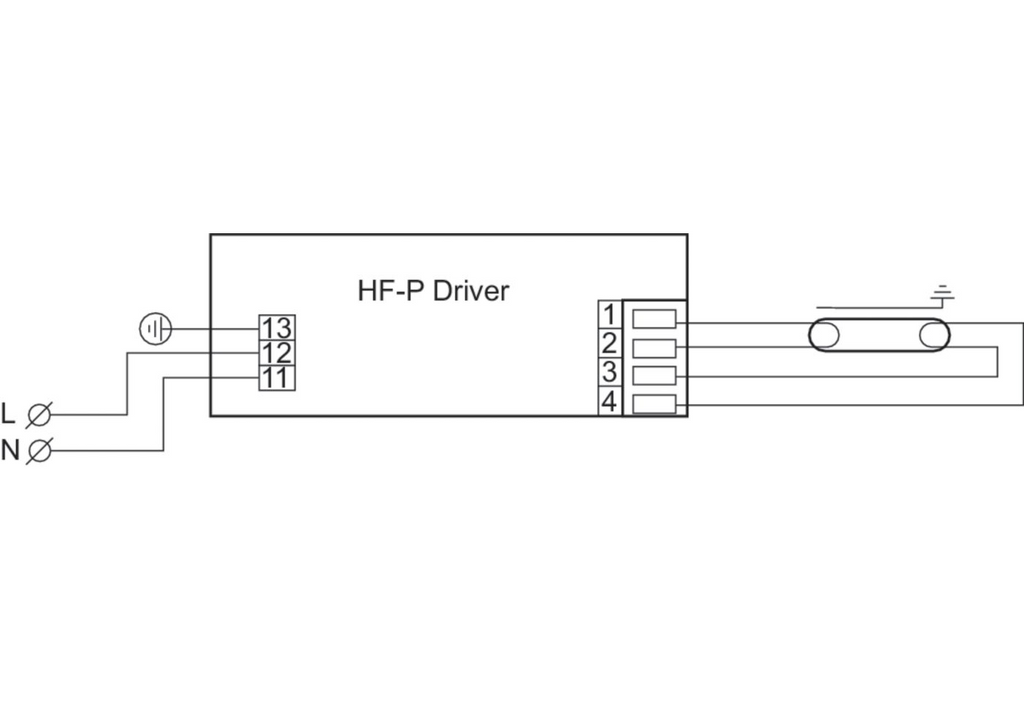

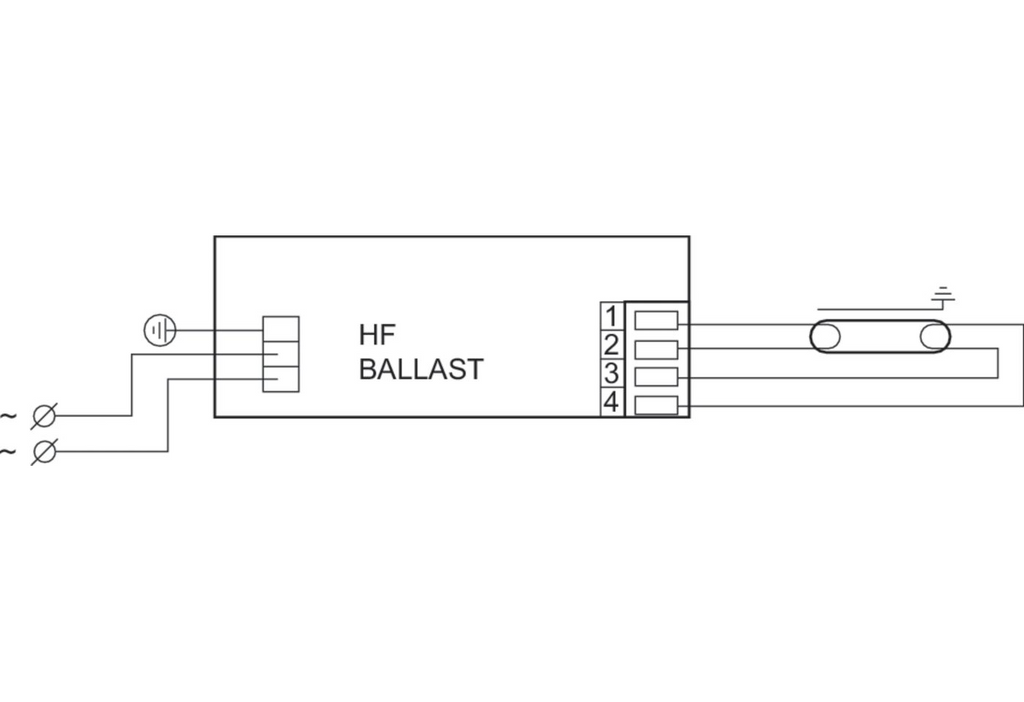

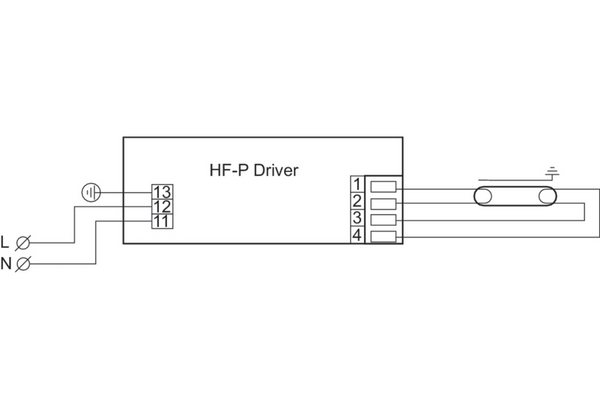

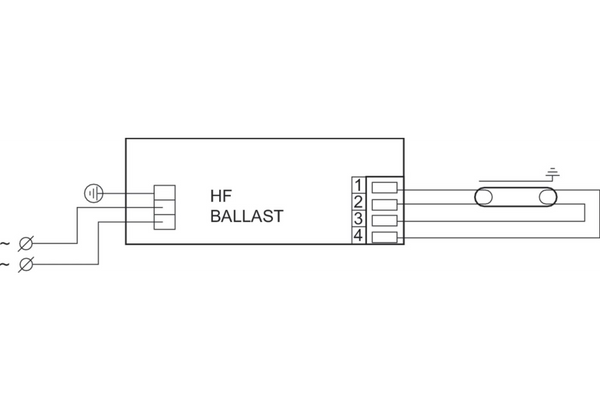

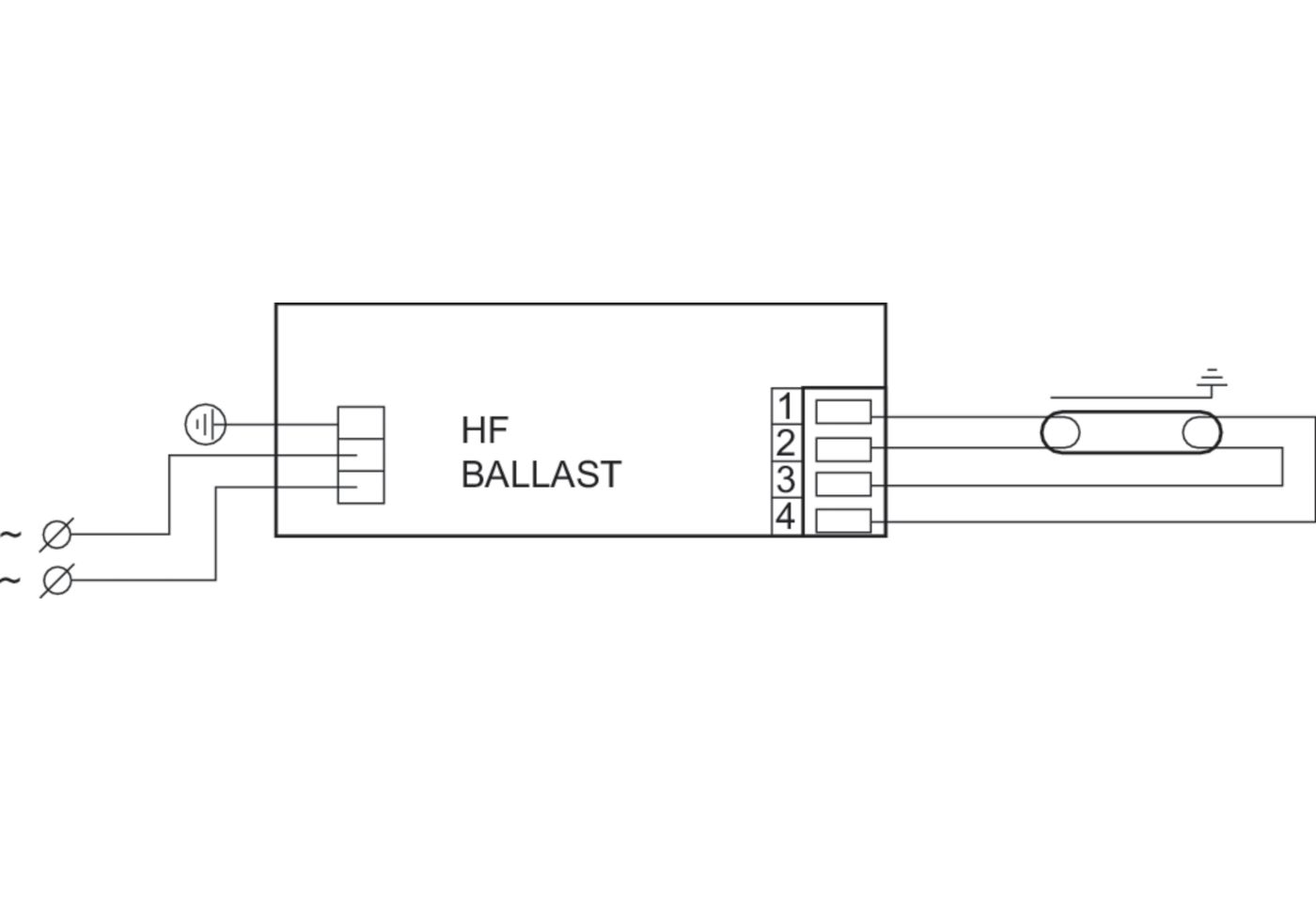

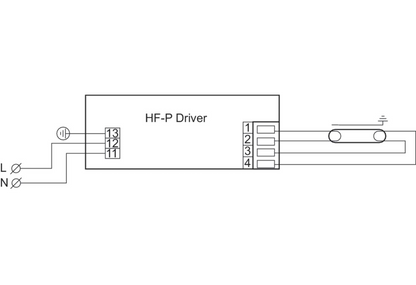

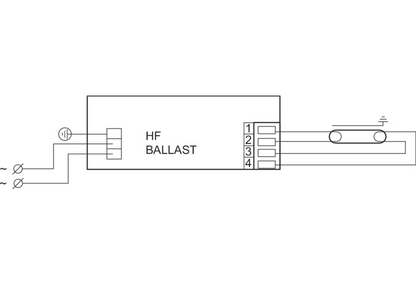

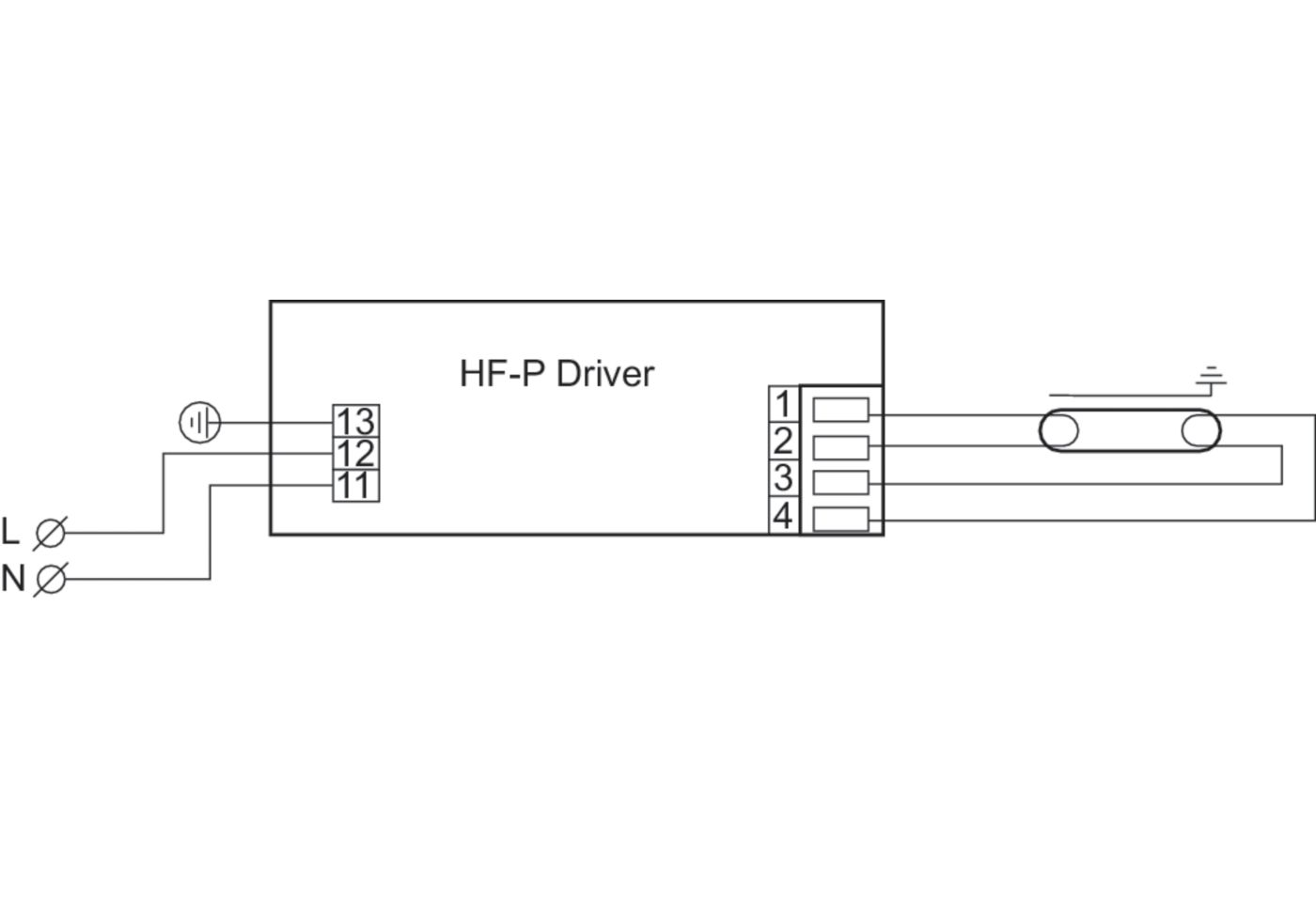

Wiring
- Connector Type Input Terminals WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
- Cable Capacity Output Wires Mutual (Nom) 200 pF
- Connector Type Output Terminals WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
- Cable Length Hot Wiring 0.75 m
- Wire Striplength 8.0-9.0 mm
- Dual Fixture Master/Slave Not applicable [ Master/Slave oper. not applicable]
- Input Terminal Cross Section 0.50-1.00 mm²
- Output Terminal Cross Section 0.50-1.00 mm²
- Cable Capacity Output Wires to Earth (Nom) 200 pF
- System characteristics
- Rated Ballast-Lamp Power 80 W
- Rated Lamp Power on PL-L 80 W
- System Power on PL-L 78 W
- Lamp Power on PL-L 74 W
- Power Loss on PL-L 4 W
- Rated Lamp Power on TL5 80 W
- System Power on TL5 75 W
- Lamp Power on TL5 71 W
- Power Loss on TL5 4 W
- System Power on TL5 ECO 74.5 W
- Lamp Power on TL5 ECO 70 W
- Power Loss on TL5 ECO 4.5 W
Temperature
- T-Ambient (Max) 60 °C
- T-Ambient (Min) -25 °C
- T-Storage (Max) 50 °C
- T-Storage (Min) -40 °C
- T-Case Lifetime (Nom) 80 °C
- T-Case Maximum (Max) 80 °C
- T-Ignition (Max) 60 °C
- T-Ignition (Min) -25 °C
Mechanical and Housing

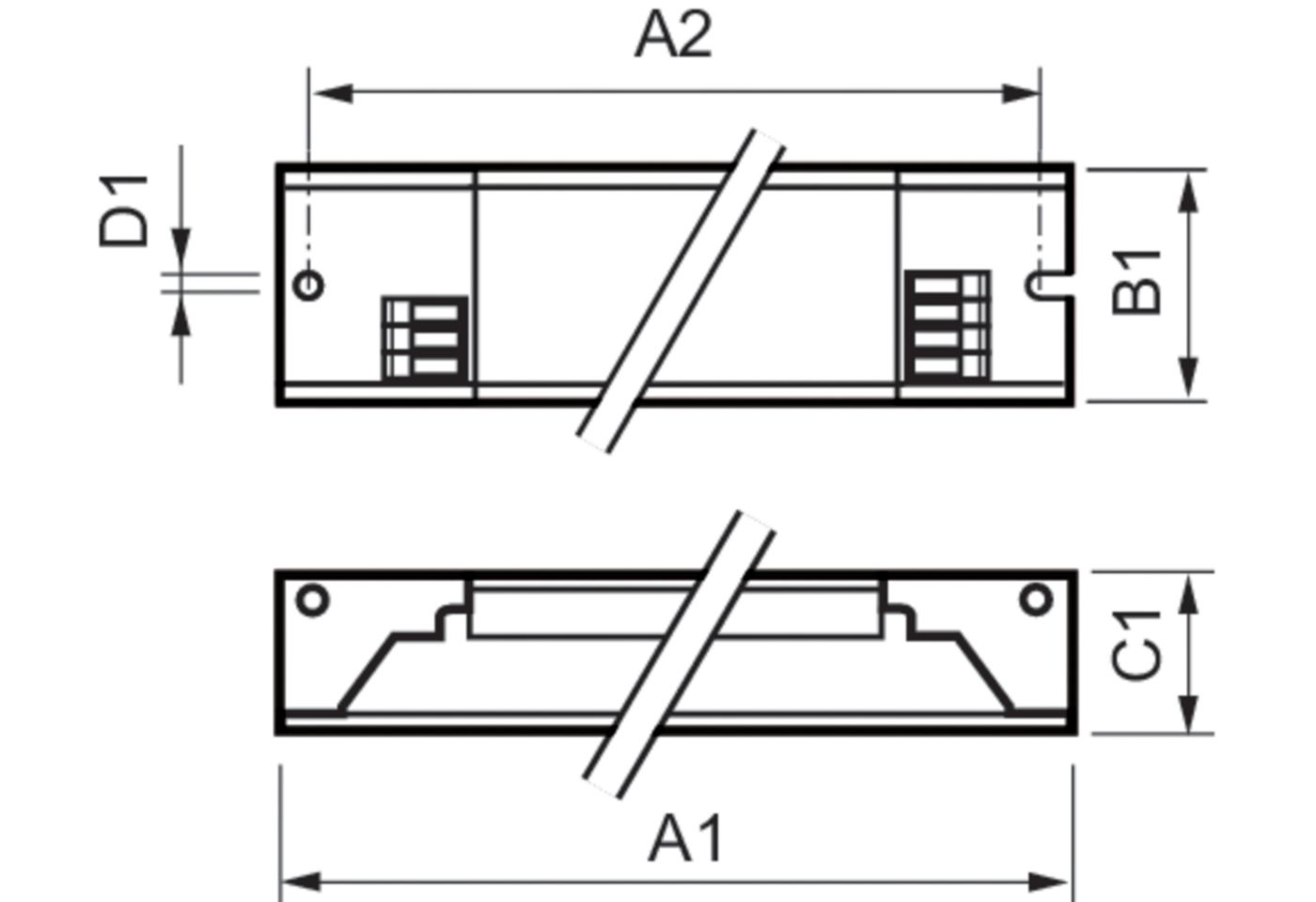

- Housing L 360x30x21
- Emergency Operation
- Nominal Light Output After 60 Seconds 100% of EBLF
- Battery Voltage Lamp Ignition 186-275 V
- Normal Operating Voltage (DC) 220-240 V
- Battery Voltage Lamp Operation 176-275
- Battery Voltage Guaranteed Operation 176-275 V
- Battery Voltage Guaranteed Ignition 186-275 V
- Emergency Ballast Lumen Factor (EBLF) (Nom) 100 %
- Nominal Light Output After 5 Seconds 50% of EBLF
Approval and Application
- Energy Efficiency Index A2 BAT
- IP Classification IP 20 [ Ingress Protection 20]
- EMI 9 kHz ... 30 MHz EN 55015 edition 7.1
- EMI 30 MHz ... 1000 MHz EN55022 level B
- Safety Standard IEC 61347-2-3
- Performance Standard IEC 60929
- Quality Standard ISO 9000:2000
- Environmental Standard ISO 14001
- Harmonic Current Emission Standard IEC 61000-3-2
- EMC Immunity Standard IEC 61547
- Vibration Standard IEC68-2-6 F c
- Bumps Standard IEC 68-2-29 Eb
- Humidity Standard EN 61347-2-3 clause 11
- Approval Marks CE marking ENEC certificate VDE-EMV certificate
- Temperature Marking Yes
- Emergency Standard IEC 60598-2-22
- Hum And Noise Level < 30 dB(A)
- Net Weight (Piece) 0.250 kg
