Philips MASTER Actinic BL TL-D 15W/10 Secura (Qty. 3)
Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp
UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp
UV Quartz Sleeve for safety is also available for this UV lamp

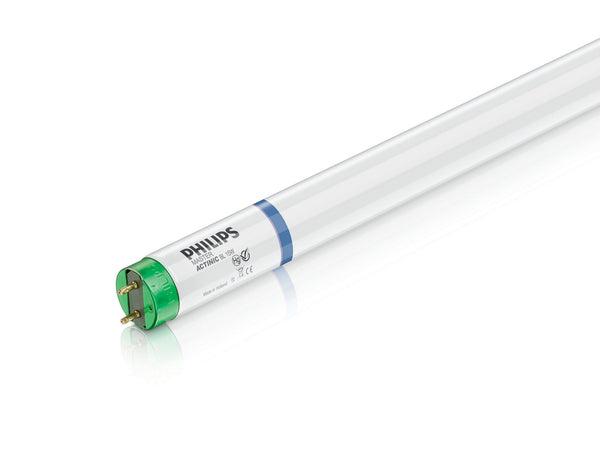

Philips MASTER Actinic BL TL-D 15W/10 Secura
The Philips MASTER Actinic BL TL-D Secura family combines multiple benefits in one lamp. These lamps have the perfect spectrum for attracting insects. Also, they have virtually no UV-B output, and so are perfectly safe. Furthermore,they have the special "MASTER" coating to improve the efficiency, initial UV-A output and maintenance of the lamp. And finally, they have a special "Secura" sleeve that keeps all glass and components together in the case of accidental breakage. This eliminates the risk of glass splinters showering down on food preparation areas, for example. And that is why it meets the strict HACCP requirements. What's more, with the lowest mercury content in the industry and being 100% lead-free, combined with their high efficiency, these lamps represent the best choice for the environment.
Benefits
- Perfectly matches the eye sensitivity of houseflies and in this way attracts more insects
- High UV-A output during entire season
- Safe for use
- Good environmental choice
- No risk of glass particles
Features

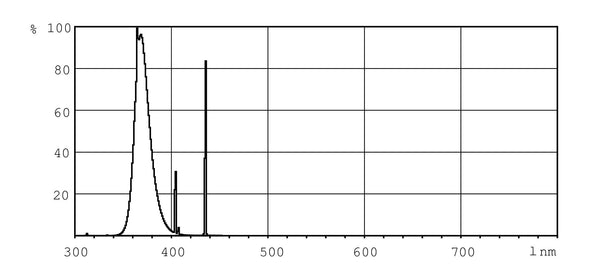

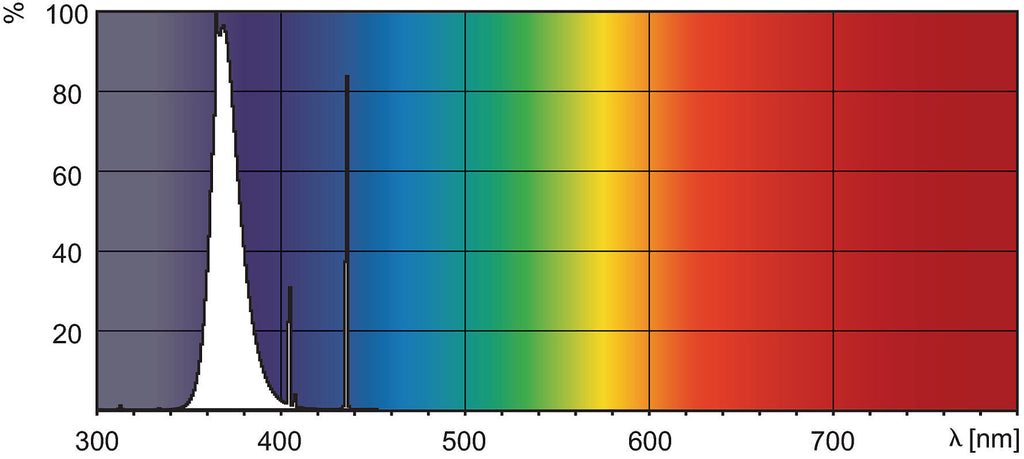

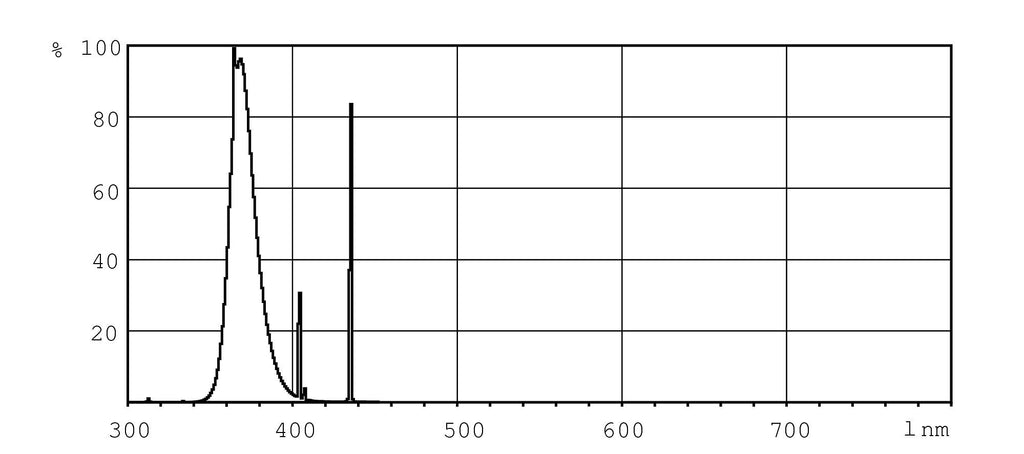

- Emits long-wave UV-A radiation in the 350-400nm range
- 100% lead-free
- Special maintenance coating
- UV-B/UV-A ratio less than 0.1 % (UV-B 280-315nm)
- Low mercury content
- Shatterproof sleeve
Applications
- Insect traps, Electronic Fly Killers (EFKs)
Cap-Base | G13 |
Bulb | T26 |
Main Application | Insect traps |
Useful Life | 12000 hr |
Life to 50% failures EM | 15000 hr |
Color Code | 10 |
Color Designation (text) | Actinic |
Chromaticity Coordinate X | 225 - |
Chromaticity Coordinate Y | 215 - |
Depreciation 5000 hours | 14 % |
Depreciation 2000 hours | 7 % |
Lamp Wattage | 15 W |
Lamp Wattage Technical | 15.5 W |
Lamp Voltage | 55 V |
Lamp Current | 0.335 A |
Mercury (Hg) Content | 3.0 mg |
UV-A Radiation 100hr (IEC) | 3.15 W |
UV-B/UV-A (IEC) | 0.2 % |

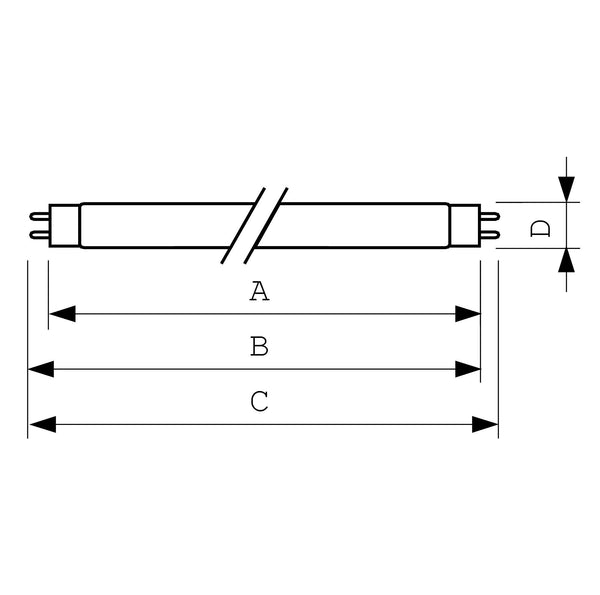

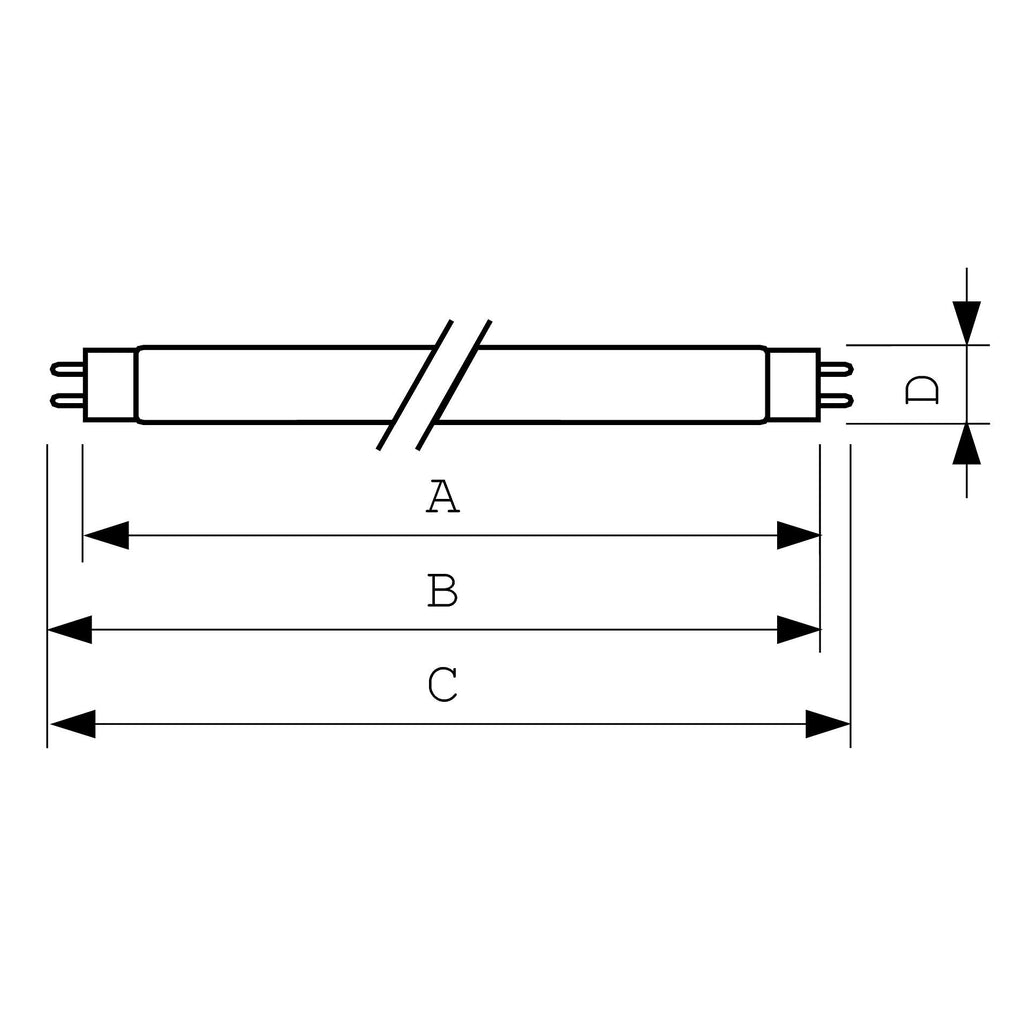

Base Face to Base Face A | 437.4 (max) mm |
Insertion Length B | 442.1 (min), 444.5 (max) mm |
Overall Length C | 451.6 (max) mm |
Diameter D | 28 (max) mm |
