Philips Master TL5 HE 35W/865 SLV/40 (Qty. 5)
Regular price
Rs. 2,000.00
In Stock. Ships within 5 business days.

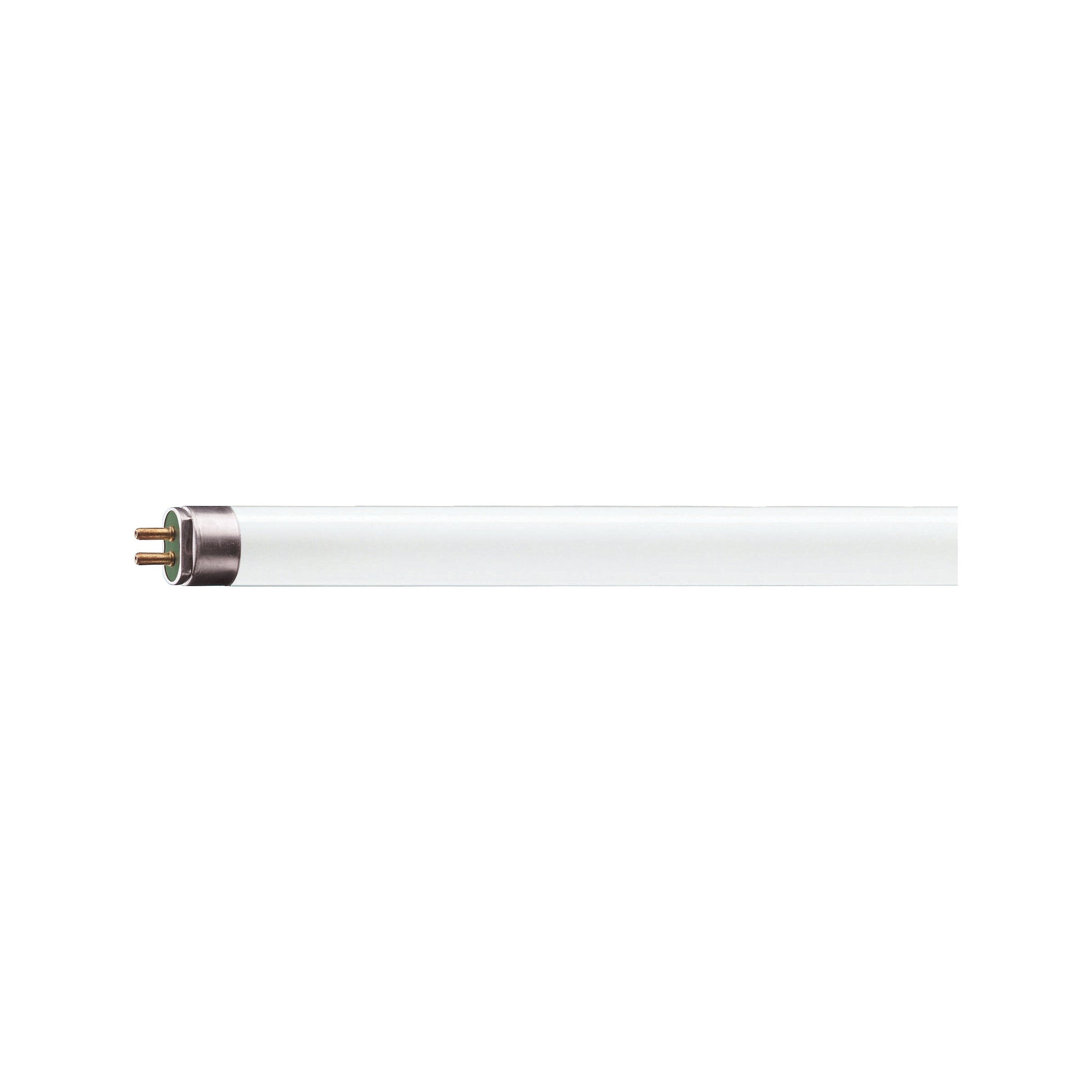

Philips MASTER TL5 HE 35W/865 SLV/40 - MASTER TL5 High Efficiency
This TL5 lamp (tube diameter 16 mm) has a high luminous efficacy, resulting in low energy consumption. The High Efficiency TL5 lamp offers excellent lumen maintenance and good color rendering. Application areas are offices, industry, public and governmental buildings, schools, hospitals and indoor sports lighting.
Benefits
- Allows system miniaturization and maximum luminaire design freedom
- Lamp lengths enable easy fitting into ceiling module systems
- High lamp efficacies and luminaire efficiencies
Features
- 40% thinner and 5 cm shorter than corresponding TL-D lamps
- Specifically designed for operation with electronic gear
- High lamp efficacies up to 104 lm/W
- Maximum light output reached at approximately 35 °C in free-burning position
Applications
- Ideally suited for recessed, surface-mounted and suspended luminaires in applications like offices, shops, schools, public buildings and industry (low ceiling), wherever high-quality, energy-effective lighting is required
Specifications

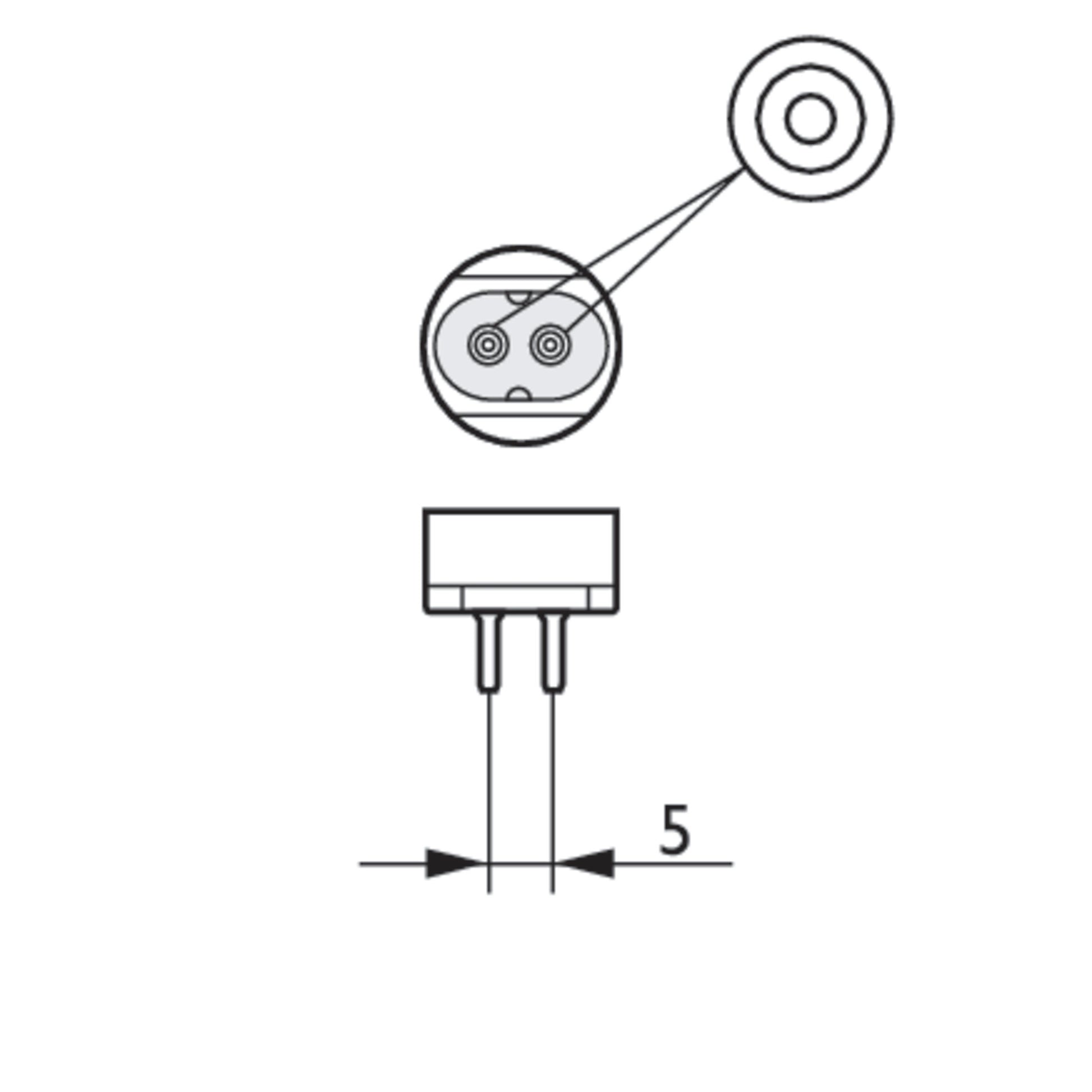

- Cap-Base G5 [ G5]
- Life to 50% Failures Preheat (Nom) 24000 h
- System Description High Efficiency
- LSF Preheat 2000 h Rated 99 %
- LSF Preheat 4000 h Rated 99 %
- LSF Preheat 6000 h Rated 99 %
- LSF Preheat 8000 h Rated 99 %
- LSF Preheat 16000 h Rated 97 %
- LSF Preheat 20000 h Rated 84 %
- Flux measurement reference Sphere
- Color Code 865 [ CCT of 6500K]
- Luminous Flux (Nom) 3100 lm
- Luminous Flux (Rated) (Nom) 3100 lm
- Color Designation Cool Daylight
- Luminous Efficacy (@ Max Lumen, Rated) (Nom) 97 lm/W
- Chromaticity Coordinate X (Nom) 0.313
- Chromaticity Coordinate Y (Nom) 0.337
- Correlated Color Temperature (Nom) 6500 K
- Luminous Efficacy (rated) (Nom) 87 lm/W
- Color Rendering Index (Max) 85
- Color Rendering Index (Min) 80
- Color Rendering Index (Nom) 82

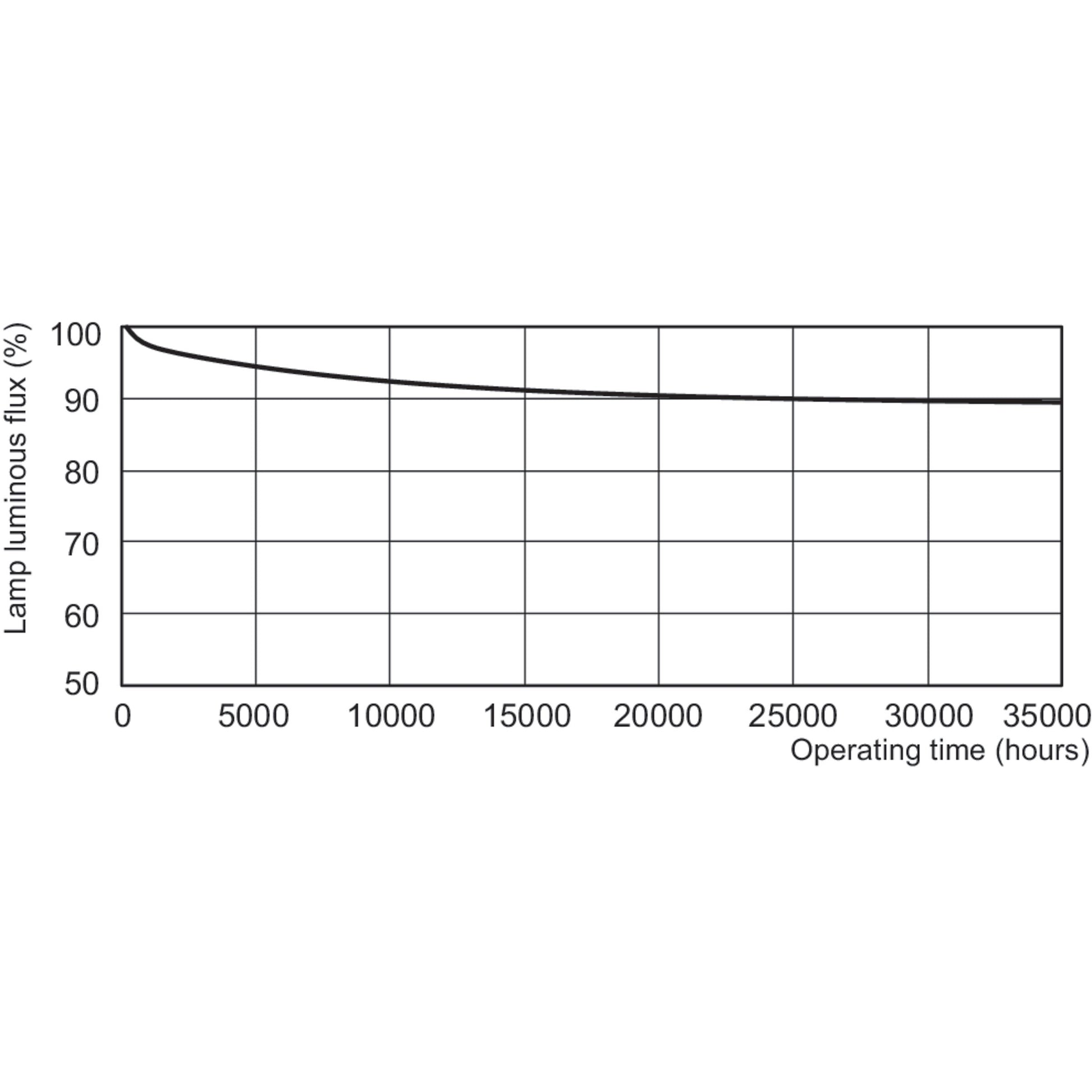

- LLMF 2000 h Rated 96 %
- LLMF 4000 h Rated 95 %
- LLMF 6000 h Rated 94 %
- LLMF 8000 h Rated 93 %
- LLMF 12000 h Rated 92 %
- LLMF 16000 h Rated 91 %
- LLMF 20000 h Rated 90 %
- Power (Nom) 34.9 W
- Lamp Current (Nom) 0.175 A
- Design Temperature (Nom) 35 °C
- Dimmable Yes
- Cap-Base Information Green Plate
- Bulb Shape T5 [ 16 mm (T5)]
- Energy Efficiency Class G
- Mercury (Hg) Content (Nom) 1.2 mg
- Energy Consumption kWh/1000 h 35 kWh
- EPREL Registration Number 423544
- Net Weight (Piece) 127.400 g
- ILCOS Code FDH-35/65/1B-L/P-G5-16/1450
