Philips PL-L 18W/52/4P 1CT/25 (Qty. 2)
Philips PL-L 18W/52/4P 1CT/25 (Qty. 2)
Philips PL-L 18W/52/4P 1CT/25 (Qty. 2)

Philips PL-L 18W/52/4P 1CT/25 (Qty. 2)

Regular price Rs. 2,150.00

In Stock. Ships within 5 business days

Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp

UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp

UV Quartz Sleeve for safety is also available for this UV lamp

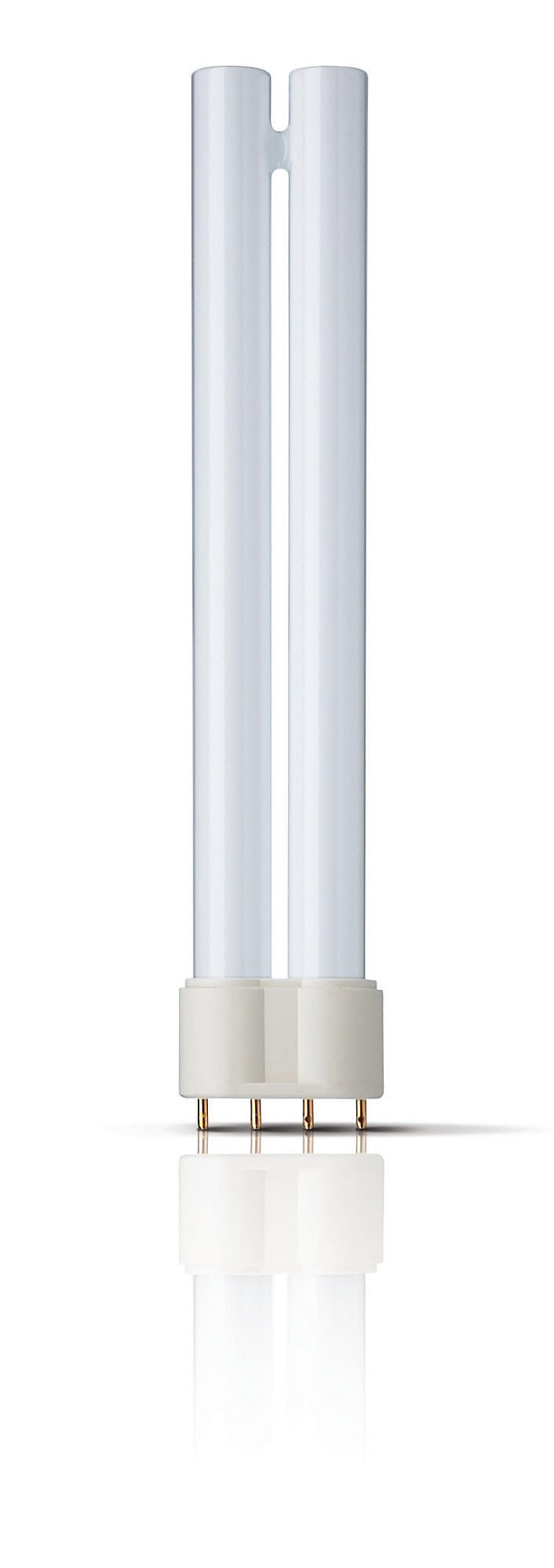

Philips PL-L 18W/52/4P 1CT (PLL18W / PLL 18W). Bili / Bilirubin Lamp.

By emitting light almost entirely within the 400 to 500 nm bandwidth these Medical Therapy Jaundice PL-L lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants. In addition, with the compact format of this PL-L lamp equipment manufacturers have more design freedom in developing their solutions. By emitting a full spectrum of a high color temperature, the PL-L /953 lamps are ideal for treating SAD.


  • PL-L 18W/52: Optimal spectrum for photo-oxidative process to convert unconjugated bilirubin into a water soluble form
  • PL-L 36W/953: Natural daylight


  • PL-L 18W/52: Emission peak at 450 nm
  • PL-L 36W/953: Natural daylight spectrum and high light output for optimal effect


  • PL-L 18W/52: Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
  • PL-L 36W/953: SAD syndrome
General Characteristics

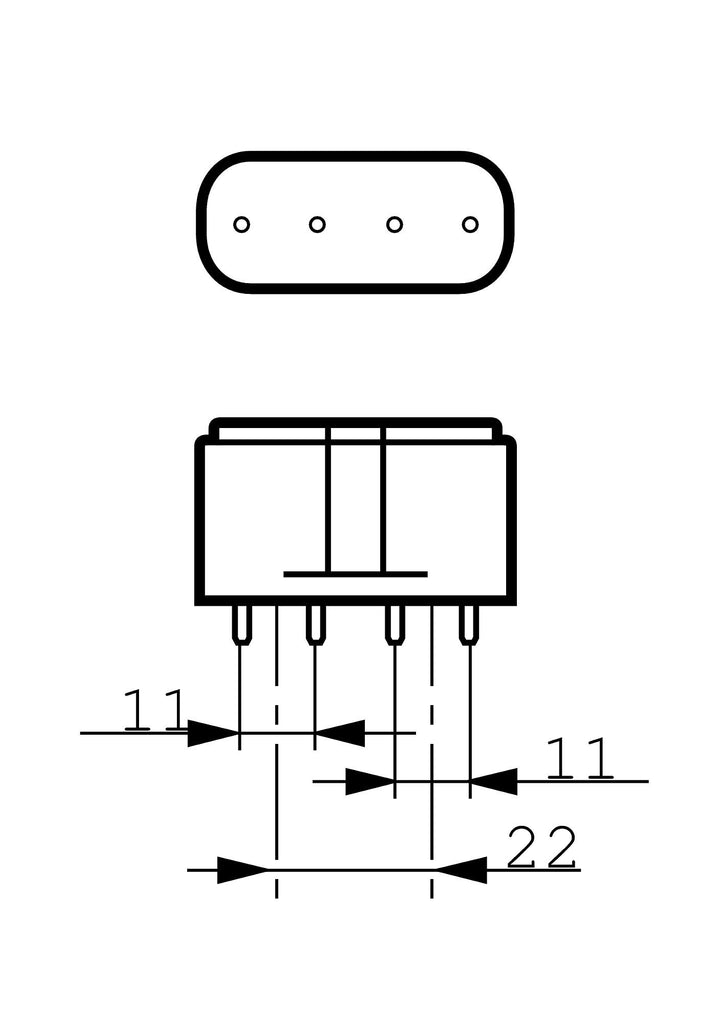

Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2xT16
Main Application Medical Therapy
Light Technical Characteristics
Color Code 52
Chromaticity Coordinate X 155 -
Chromaticity Coordinate Y 75 -
Luminous Flux Lamp EL 330 Lm
Lumen Maintenance 2000h 93 %
Lumen Maintenance 5000h 88 %
Electrical Characteristics
Lamp Wattage 18 W
Lamp Wattage Technical 17.5 W
Lamp Voltage 57 V
Lamp Current 0.375 A
Environmental Characteristics
Mercury (Hg) Content 4.4 mg

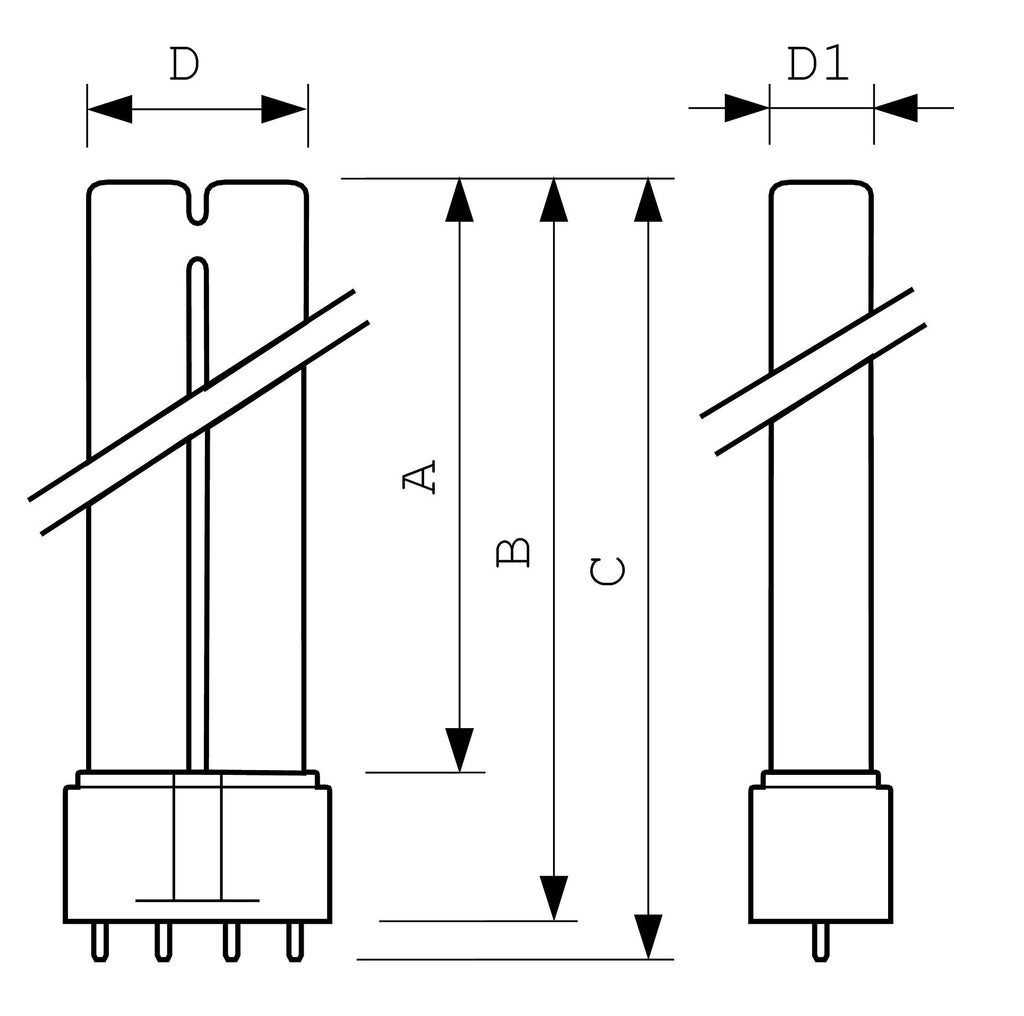

Product Dimensions
Base Face to Base Face A 188.2 (max) mm
Insertion Length B 214 (max) mm
Overall Length C 220.6 (max) mm
Diameter D 39 (max) mm
Diameter D1 18 (max) mm
Product Data
Order code 927904105206
Full product code 927904105206
Full product name PL-L 18W/52/4P 1CT
Order product name PL-L 18W/52/4P 1CT/25
Pieces per pack 1
Packing configuration 25
Packs per outerbox 25
Bar code on pack - EAN1 8727900805178
Bar code on outerbox - EAN3 8727900805185
Logistic code(s) - 12NC 927904105206
Net weight per piece 60.900 gr
