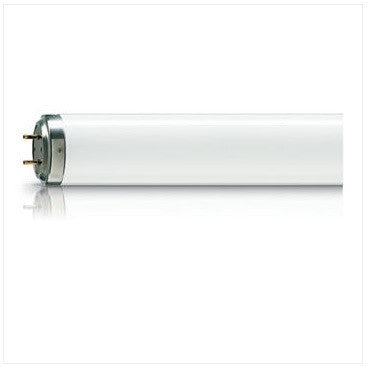

Philips TL 20W/52 SLV/25 (Qty. 3)
In Stock. Ships within 5 business days
Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp
UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp
UV Quartz Sleeve for safety is also available for this UV lamp
Medical Therapy Jaundice TL/TL-D. Bili / Bilirubin Lamp.
By emitting light almost entirely within the 400 to 500 nm bandwidth these Medical Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants.
Benefits
- Optimal spectrum for photo-oxidative process to convert unconjugated bilirubin into a watersoluble form
Features
- Emission peak at 450 nm
System
- Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start systems
Applications
- Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
| Cap-Base | G13 |
| Bulb | T38 |
| Main Application | Medical Therapy |
| Useful Life | 2000 hr |
| Life to 50% failures EM | 9000 hr |
| Color Code | 52 |
| Color Designation (text) | Medical |
| Chromaticity Coordinate X | 154 - |
| Chromaticity Coordinate Y | 69 - |
| Luminous Flux Lamp EM | 360 Lm |
| Lumen Maintenance 2000h | 85 % |
| Lumen Maintenance 5000h | 75 % |
| Depreciation 2000 hours | 20 % |
| Lamp Wattage | 20 W |
| Lamp Wattage Technical | 19.3 W |
| Lamp Voltage | 57 V |
| Lamp Current | 0.37 A |
| Dimmable | No |
| Mercury (Hg) Content | 8.0 mg |
| Base Face to Base Face A | 589.8 (max) mm |
| Insertion Length B | 594.5 (min), 596.9 (max) mm |
| Overall Length C | 604 (max) mm |
| Diameter D | 40.5 (max) mm |
| Order code | 928003505203 |
| Full product code | 928003505203 |
| Full product name | TL 20W/52 SLV |
| Order product name | TL 20W/52 SLV/25 |
| Pieces per pack | 1 |
| Packing configuration | 25 |
| Packs per outerbox | 25 |
| Bar code on pack - EAN1 | 8711500643025 |
| Bar code on outerbox - EAN3 | 8711500643032 |
| Logistic code(s) - 12NC | 928003505203 |
| Net weight per piece | 156.000 gr |
