Philips TL-D 18W/52 (Qty. 4)
Philips TL-D 18W/52 (Qty. 4)
Philips TL-D 18W/52 (Qty. 4)

Philips TL-D 18W/52 (Qty. 4)

Regular price Rs. 2,720.00

In Stock. Ships within 5 business days

Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp

UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp

UV Quartz Sleeve for safety is also available for this UV lamp

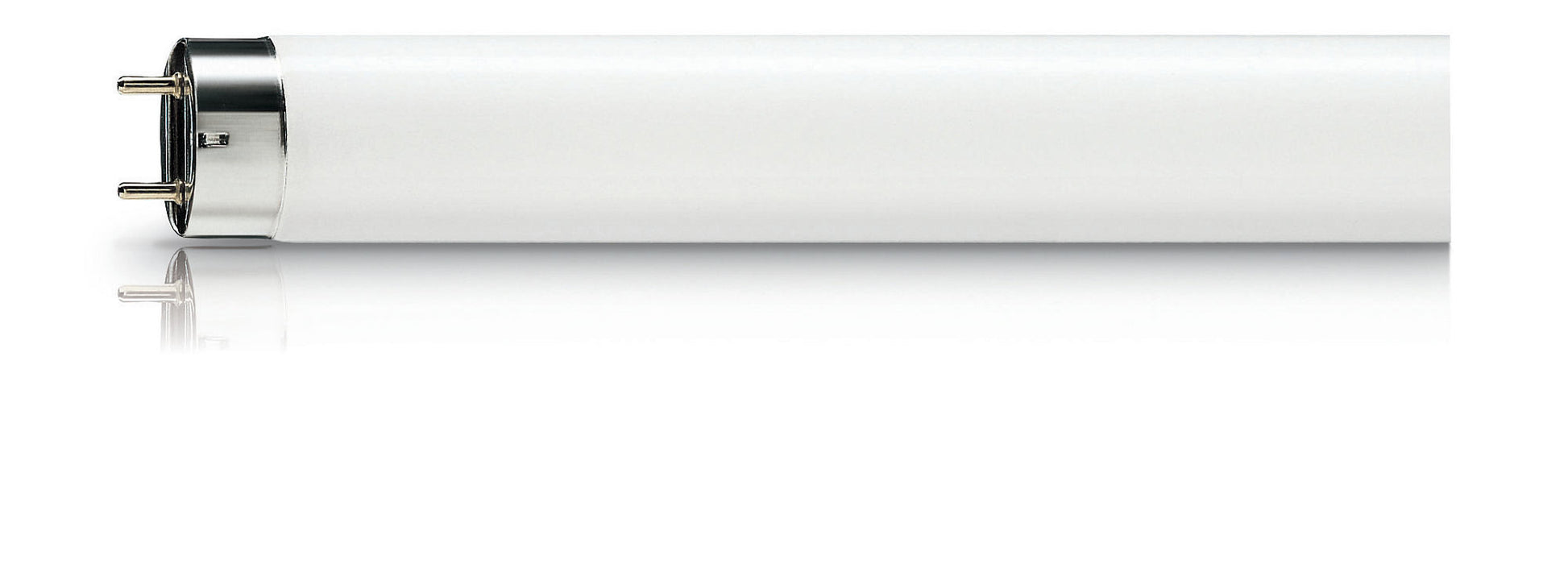

Medical Therapy Jaundice TL/TL-D. Bili / Bilirubin Lamp. TLD 18W / TLD18W

By emitting light almost entirely within the 400 to 500 nm bandwidth these Medical Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants.


  • Optimal spectrum for photo-oxidative process to convert unconjugated bilirubin into a watersoluble form


  • Emission peak at 450 nm


  • Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start systems


  • Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
General Characteristics

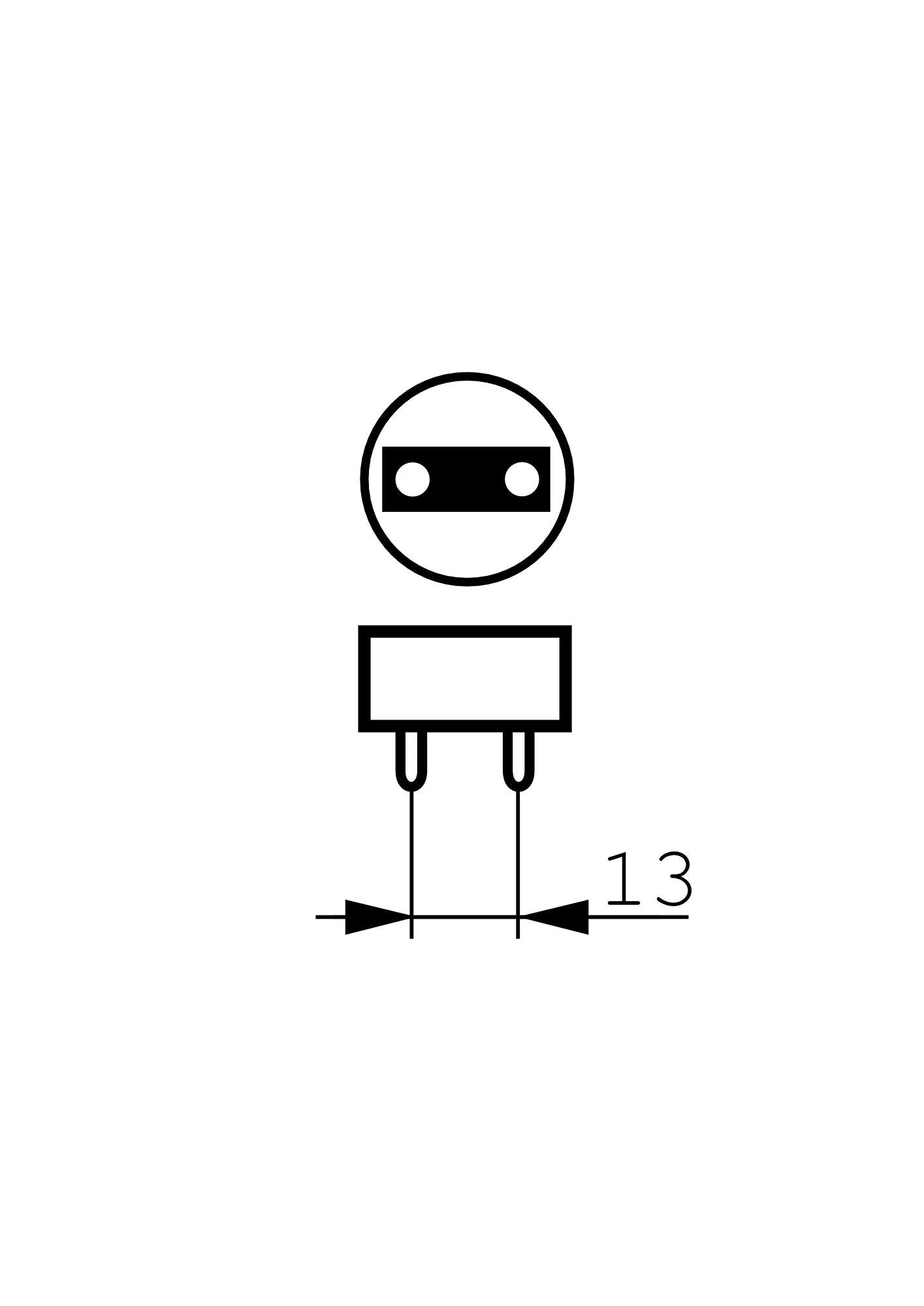

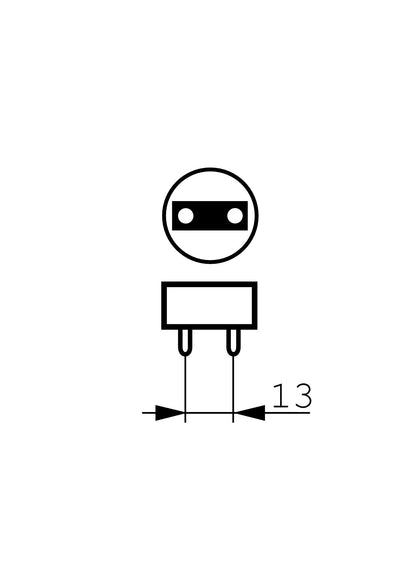

Cap-Base G13
Bulb T26
Main Application Medical Therapy
Useful Life 2000 hr
Life to 50% failures EM 13000 hr
Light Technical Characteristics
Color Code 52
Color Designation (text) Medical
Chromaticity Coordinate X 157 -
Chromaticity Coordinate Y 75 -
Luminous Flux Lamp EM 395 Lm
Lumen Maintenance 2000h 85 %
Lumen Maintenance 5000h 70 %
Electrical Characteristics
Lamp Wattage 18 W
Lamp Wattage Technical 18 W
Lamp Voltage 59 V
Lamp Current 0.36 A
Dimmable Yes
Environmental Characteristics
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 13.0 mg

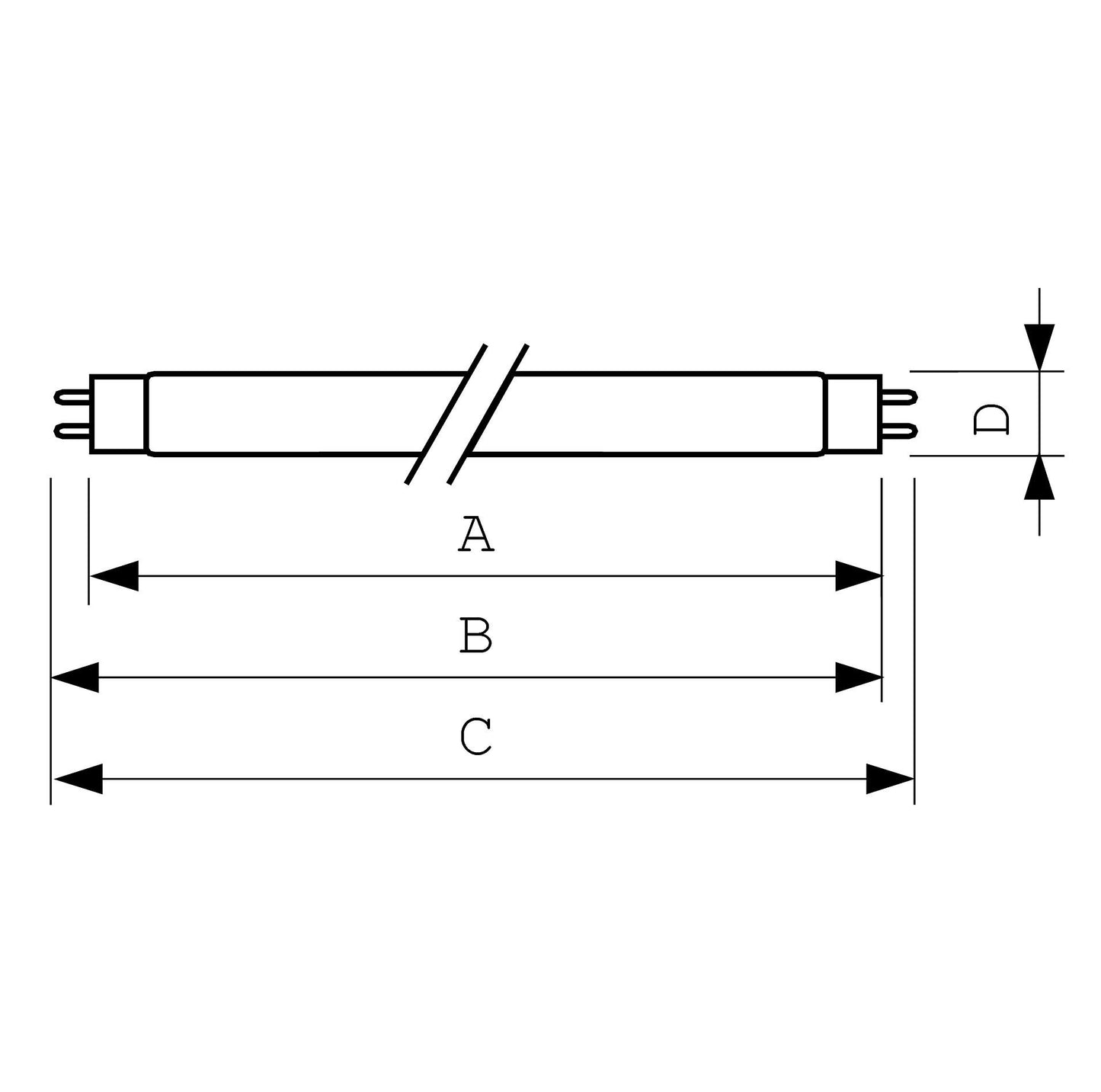

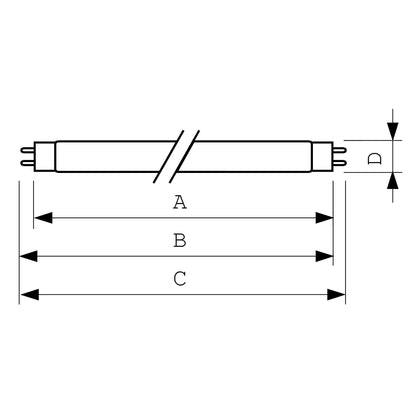

Product Dimensions
Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm
Product Data
Order code 928048005211
Full product code 928048005211
Full product name TL-D 18W/52
Order product name TL-D 18W/52
Pieces per pack 1
Packing configuration 25
Packs per outerbox 25
Bar code on pack - EAN1 8727900834857
Bar code on outerbox - EAN3 8727900834864
Logistic code(s) - 12NC 928048005211
Net weight per piece 71.000 gr
