Philips TUV 11W 4P SE UNP (Qty. 25)
Philips TUV 11W 4P SE UNP (Qty. 25)
Philips TUV 11W 4P SE UNP (Qty. 25)
Philips TUV 11W 4P SE UNP (Qty. 25)
Philips TUV 11W 4P SE UNP (Qty. 25)

Philips TUV 11W 4P SE UNP (Qty. 25)

Regular price Rs. 5,880.00

In Stock. Ships within 2 business days.

TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.

Specifications

General Characteristics
System Description
-

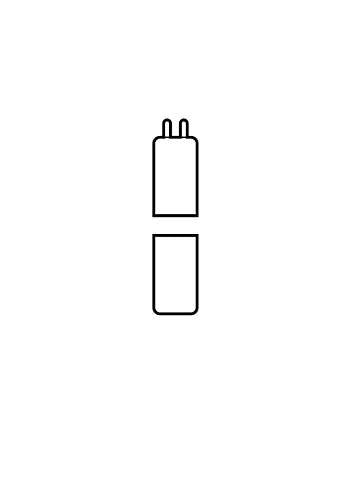

Cap-Base
4 Pins Single Ended
Cap-Base Information
4 Pins Single Ended
Bulb
T16
Main Application
Disinfection
Useful Life
9000 hr
Light Technical Characteristics
Color Code
-
Color Designation (text)
-
Depreciation at useful lifetim
%
Electrical Characteristics
Lamp Wattage
11 W
Lamp Wattage Technical
11 W
Lamp Voltage
34 V
Lamp Current
0.330 A

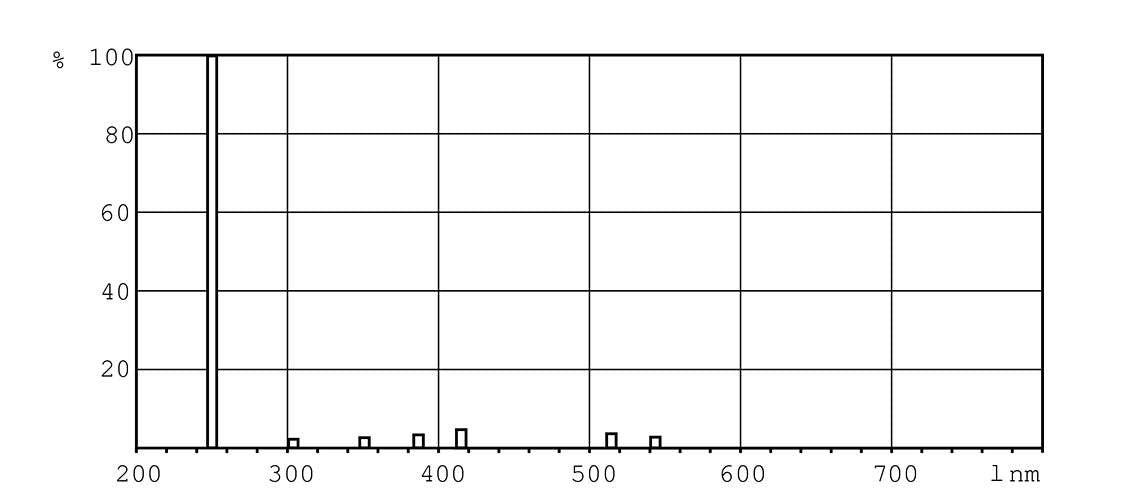

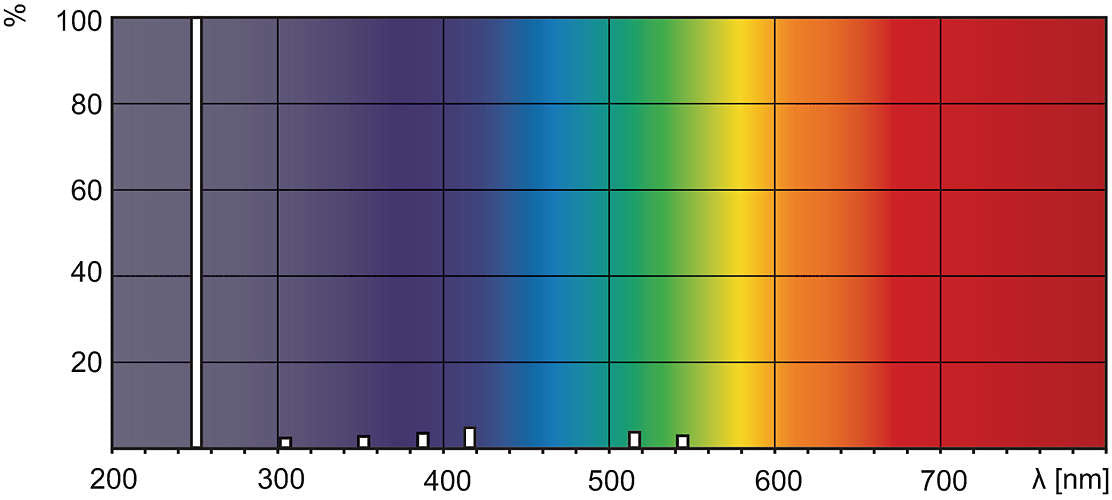

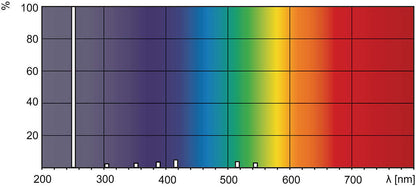

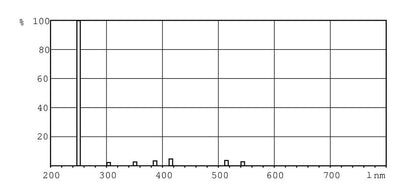

UV-related Characteristics
UV-C Radiation
2.6 W

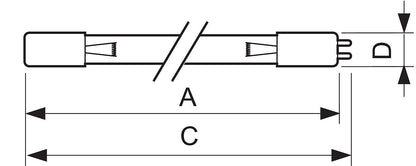

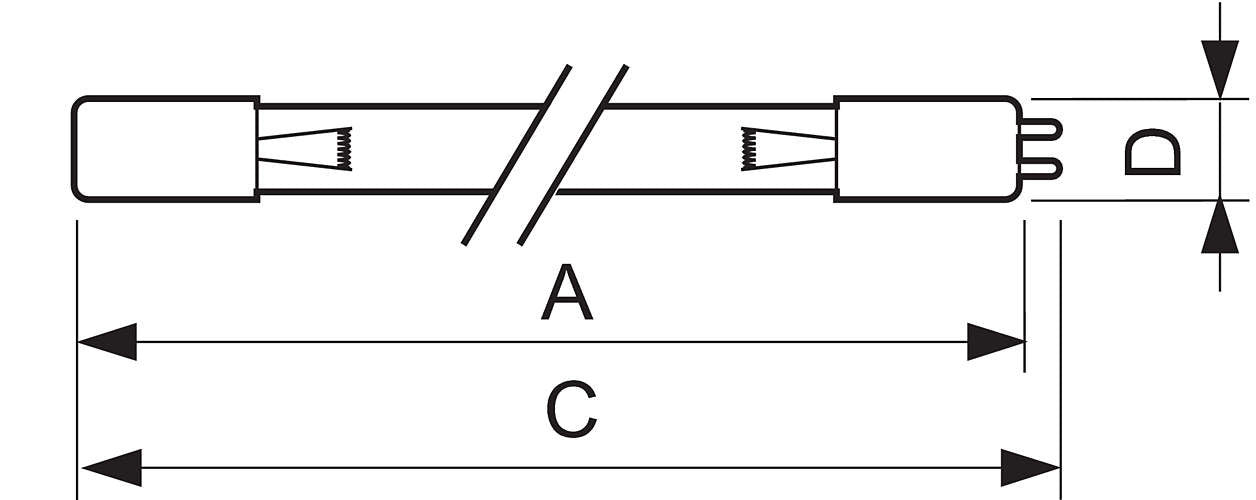

Product Dimensions
Reference Length A
244.1 (max) mm
Overall Length C
244.9 (min), 248.4 (nom), 251.9 (max) mm
Diameter D
19 (max) mm
Arc Length O
mm
Product Data
Order code
927971204099
Full product code
927971204099
Full product name
TUV 11W 4P SE UNP
Order product name
TUV 11W 4P SE UNP/32
Pieces per pack
1
Packing configuration
32
Packs per outerbox
32
Bar code on pack - EAN1
8711500643827
Bar code on outerbox - EAN3
8711500643841
Logistic code(s) - 12NC
927971204099
Net weight per piece
24.000 gr
Successor order code
