Regular price Rs. 35,000.00

Please Contact Us for Estimated Dispatch Date

Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp

UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp

UV Quartz Sleeve for safety is also available for this UVC lamp

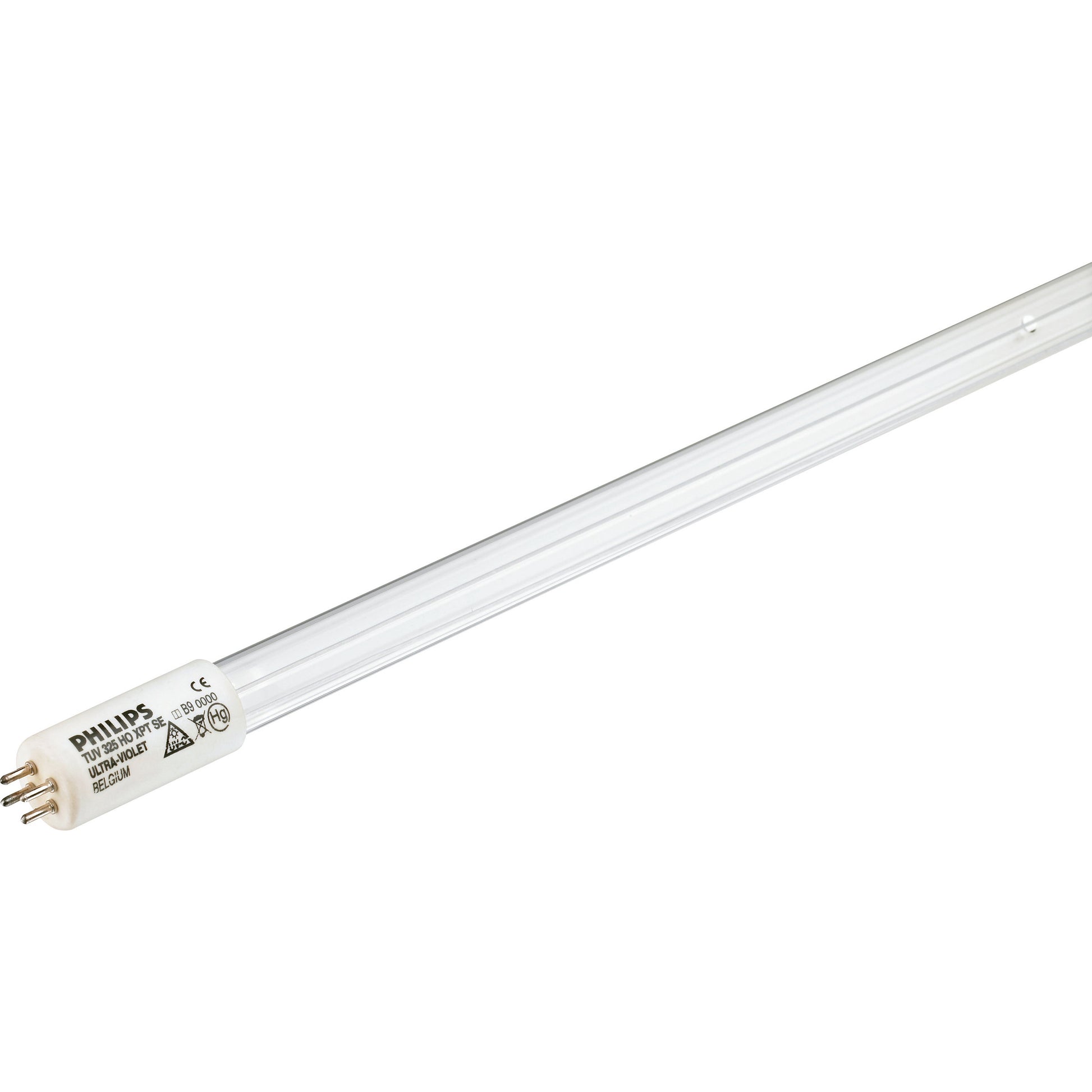

TUV Amalgam XPT systems - TUV 130W XPT SE UNP/20 (TUV130W / XPT130W)

Philips TUV Amalgam XPT system consists of an electronic driver that operates one TUV Amalgam XPT lamp, mounted in a sleeve. The electrical specifications are tailored to the lamp, ensuring an optimized performance of the Philips TUV Amalgam XPT system. Thanks to extensive testing before a lamp system is released, we can ensure maximum reliability and long lifetime.

Benefits

  • Security of effective disinfection over the useful lifetime of the lamp
  • Approximately 10% energy savings, because lamps can be dimmed to reach the same UV output compared to similar lamps on the market
  • High efficiency during dimming thanks to unique amalgam temperature control of the 800W lamps
  • Extreme reliability of driver; with annual failure rate of less than 1%
  • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
  • Best environmental choice because of long reliable life, less waste and industry leading low amount of mercury

Features

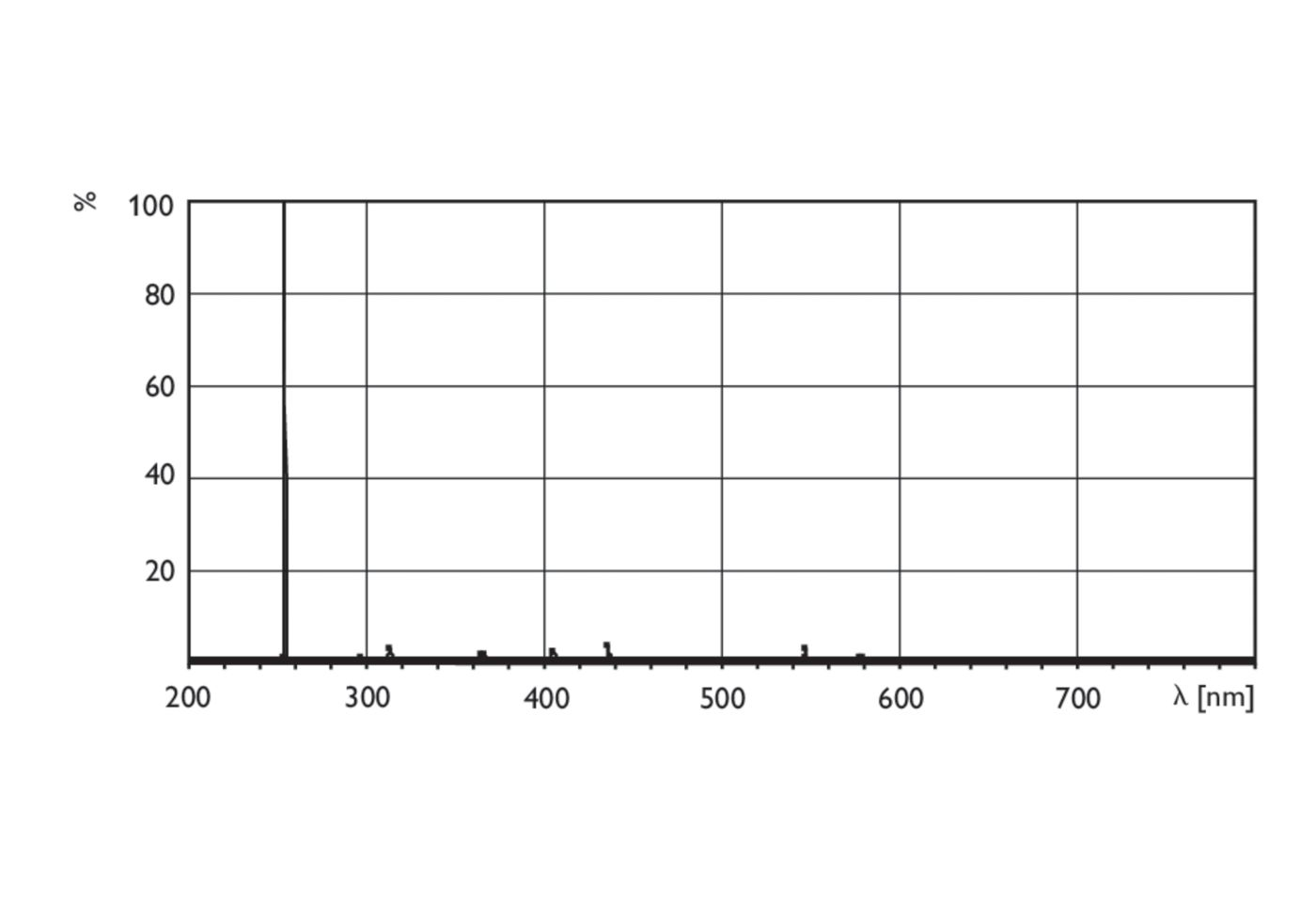

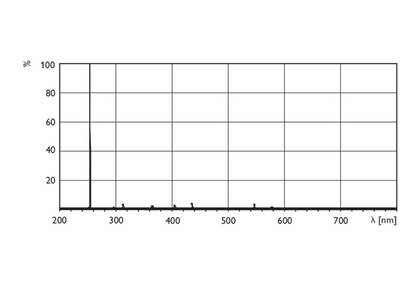

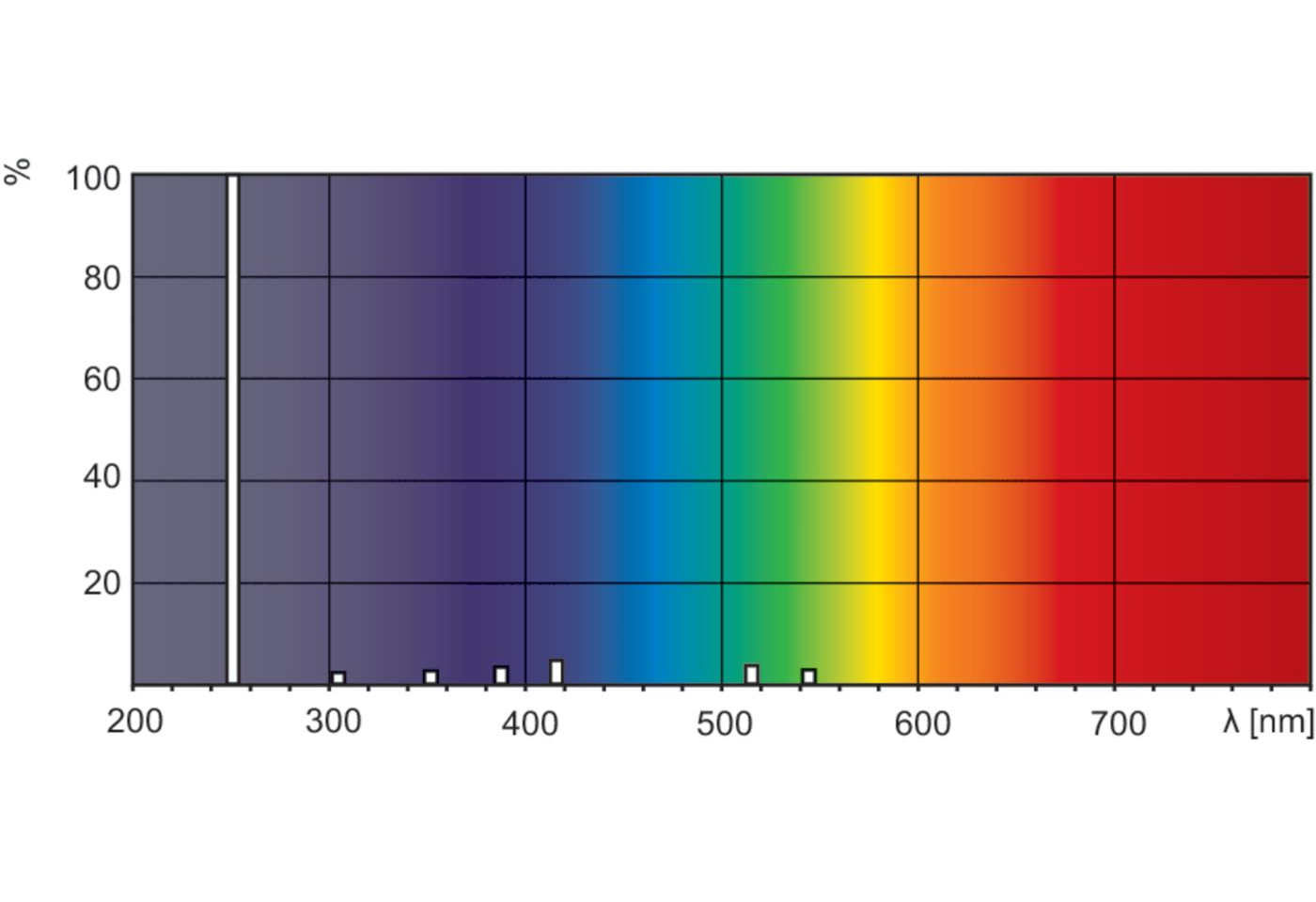

  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • Universal burning position possible for the T6 range, depending on lamp type and sleeve dimensions
  • Special amalgam used for highest efficiency over wide temperature range
  • Philips electronic driver available for a perfect interface
  • Minimized amount of mercury
  • Tailor-made solutions possible
  • Lamp can be made from special quartz (open/synthetic) to maximize 185 nm Ozone generation

Applications

  • Deactivation of bacteria, viruses and other micro-organisms
  • Process water treatment equipment
  • Equipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industry (ozone version)
  • Municipal drinking water treatment equipment
  • Swimming pool units

Specificatioons

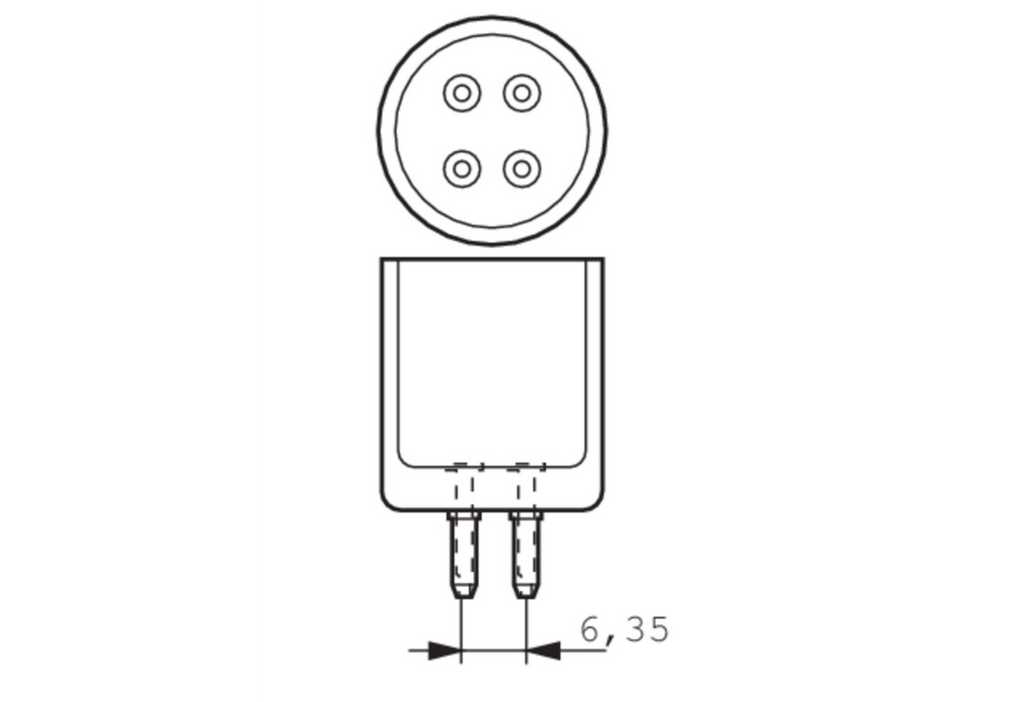

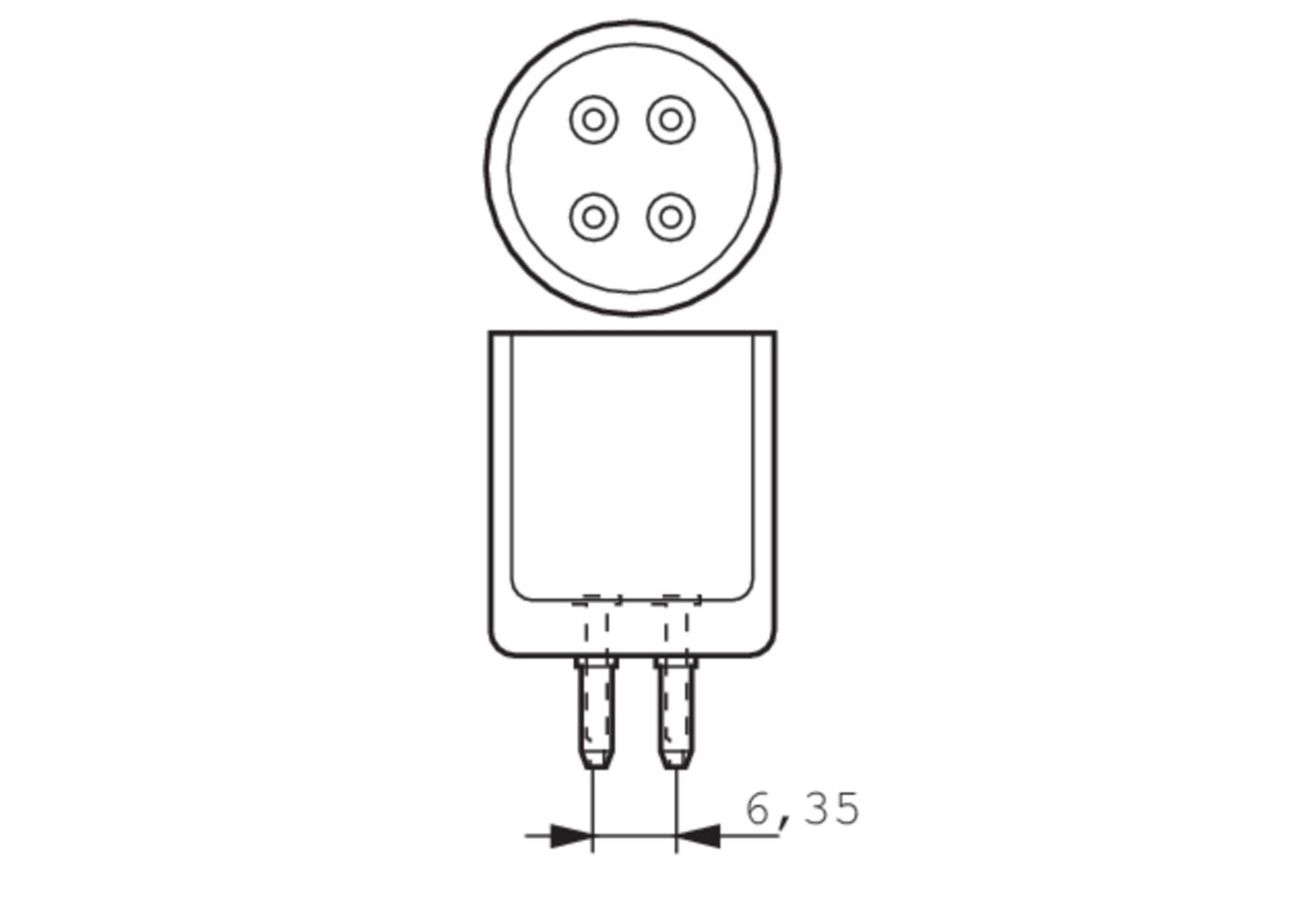

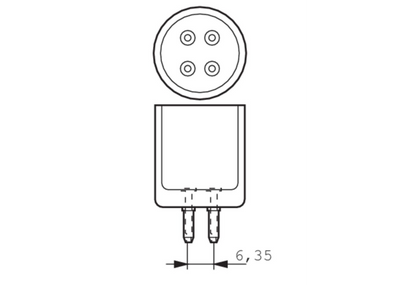

  • Cap-Base G10.2Q  [ G10.2q]

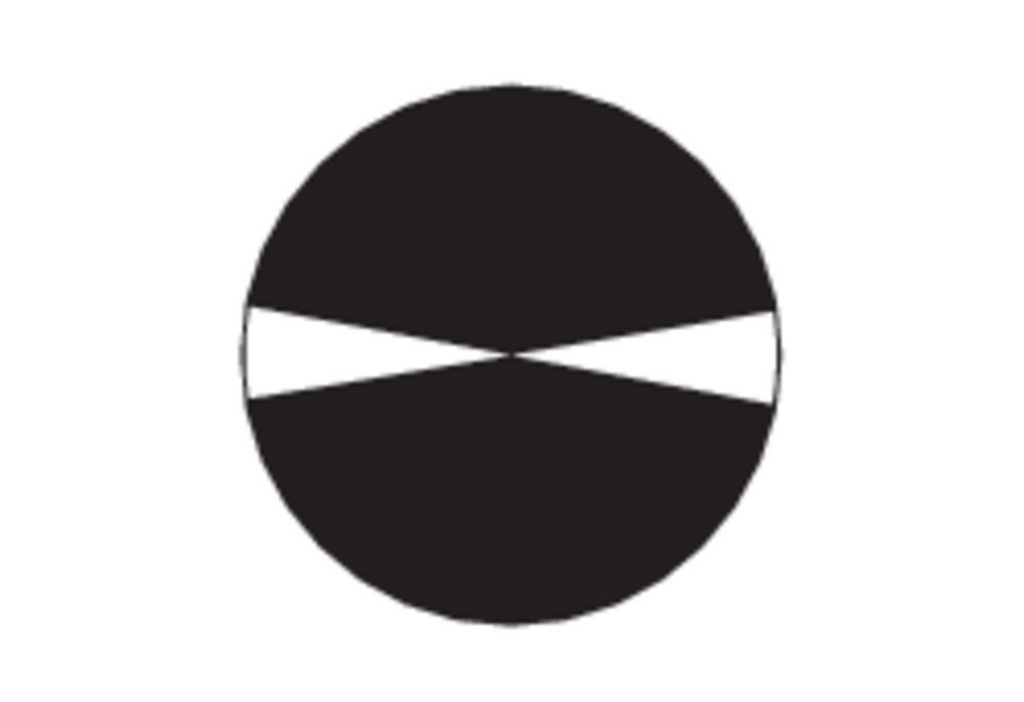

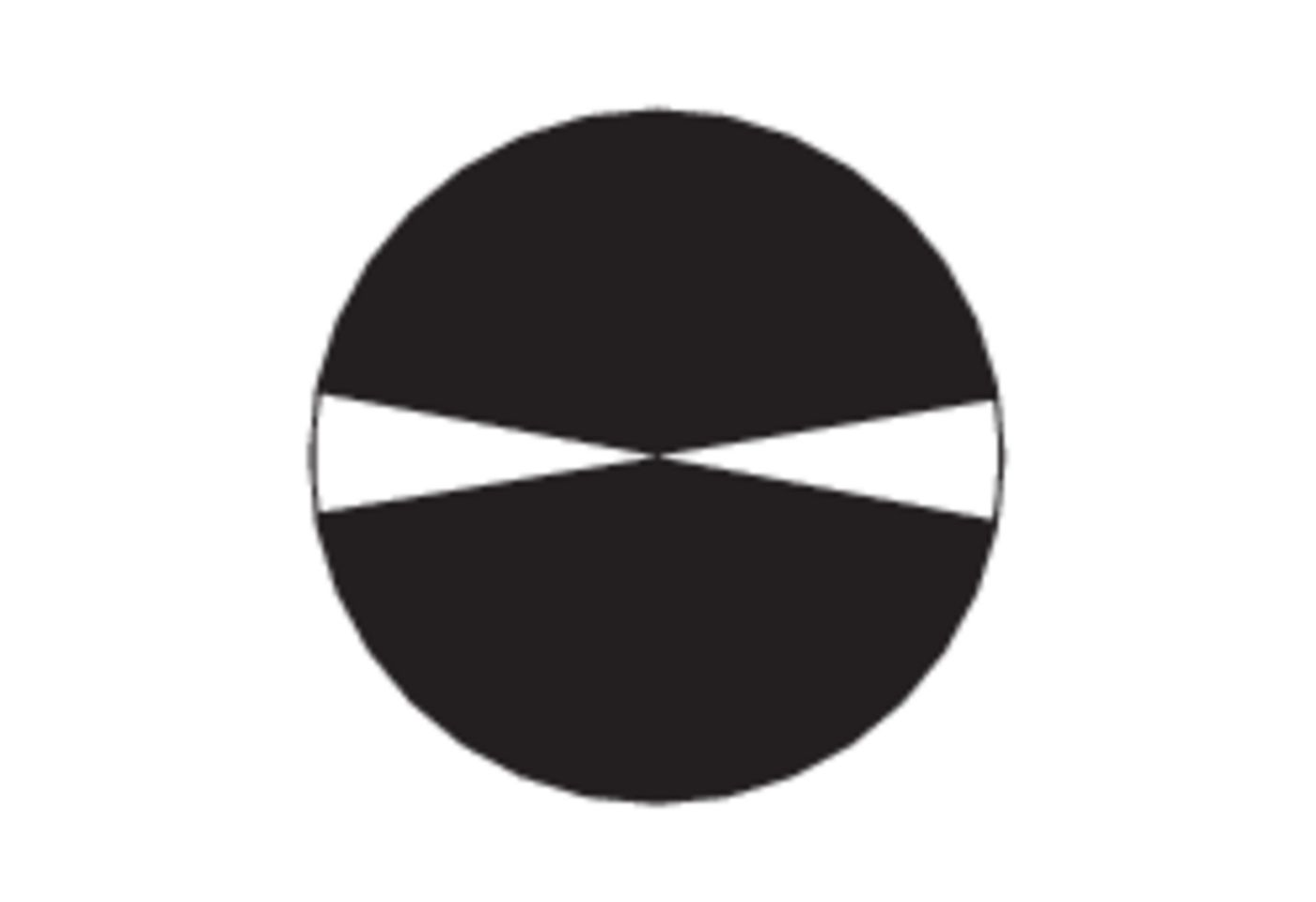

  • Operating Position P10  [ Parallel +/-10D or Horizontal(HOR)]
  • Main Application Disinfection

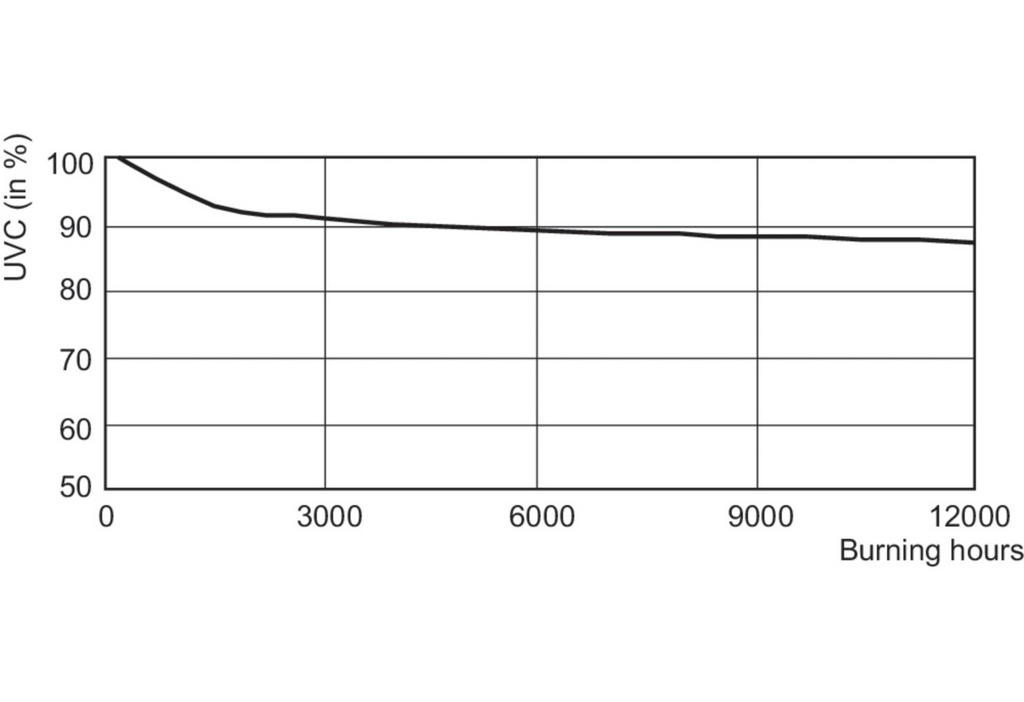

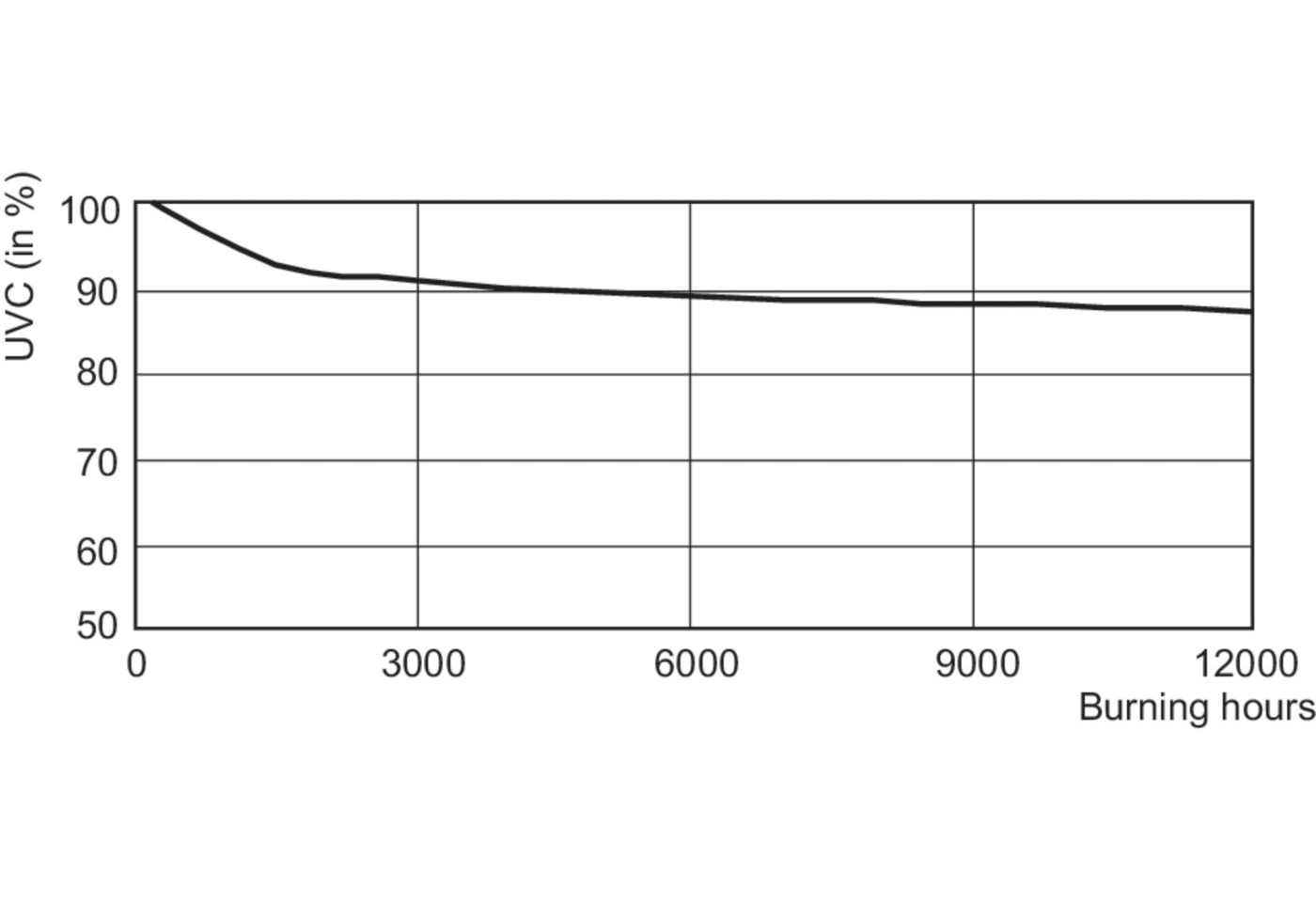

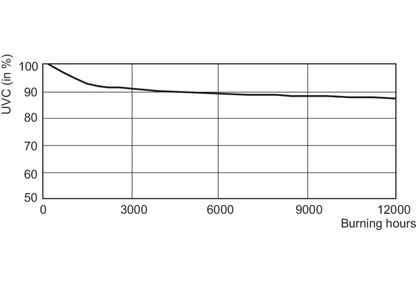

  • Depreciation at Useful Lifetime 15 %
  • Power (Nom) 130 W
  • Ignition Supply Voltage (Min) 70 V
  • Lamp Current (Nom) 2.1 A
  • Dimmable Yes
  • Net Weight (Piece) 0.175 kg
