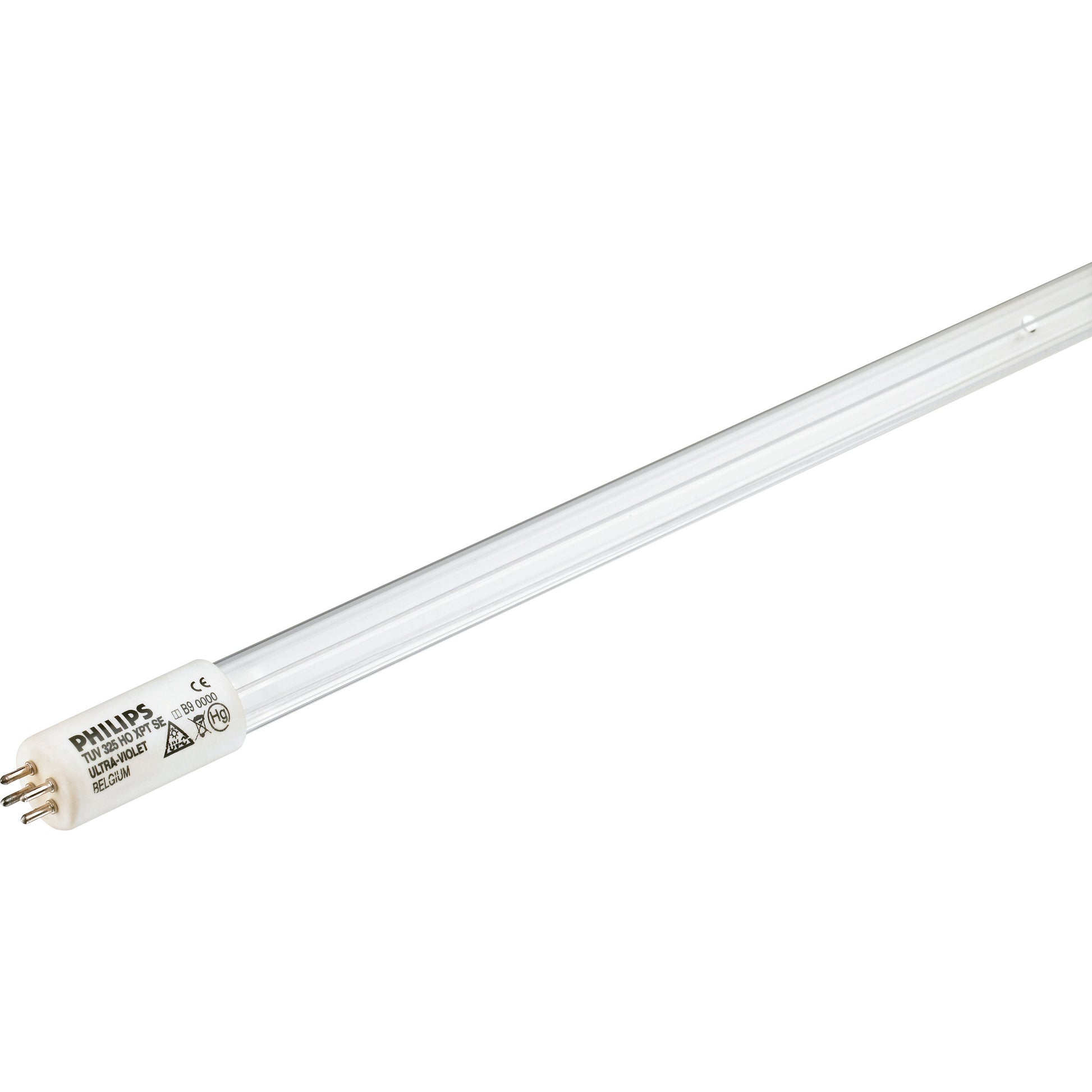

Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)
Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)
Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)
Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)
Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)
Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)
Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)

Philips TUV 325W XPT HO SE UNP/20 (Qty. 2)

Regular price Rs. 34,100.00

In Stock. Ships within 5 business days

Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp

UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp

UV Quartz Sleeve for safety is also available for this UVC lamp

TUV Amalgam XPT systems (TUV325W / XPT325W)

Philips TUV Amalgam XPT system consists of an electronic driver that operates one TUV Amalgam XPT lamp, mounted in a sleeve. The electrical specifications are tailored to the lamp, ensuring an optimized performance of the Philips TUV Amalgam XPT system. Thanks to extensive testing before a lamp system is released, we can ensure maximum reliability and long lifetime.

Main applications

  • Deactivation of bacteria, viruses and other micro-organisms
  • Municipal drinking water treatment equipment
  • Municipal waste water treatment equipment
  • Process water treatment equipment
  • Swimming pool units
  • Equipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industries (ozone version)

Benefits

  • High Power allows for design of compact installations
  • High system efficiency
  • Approximately 10% energy savings, because lamps can be dimmed to reach the same UV output compared to similar lamps on the market
  • Effective disinfection over the useful lifetime of the lamp
  • Best environmental choice because of long reliable life, less waste and industry leading low amount of mercury
  • Extreme reliability of driver, with annual failure rate of less than 1%
  • High efficiency during dimming thanks to unique amalgam temperature control of the 800W lamps

Features

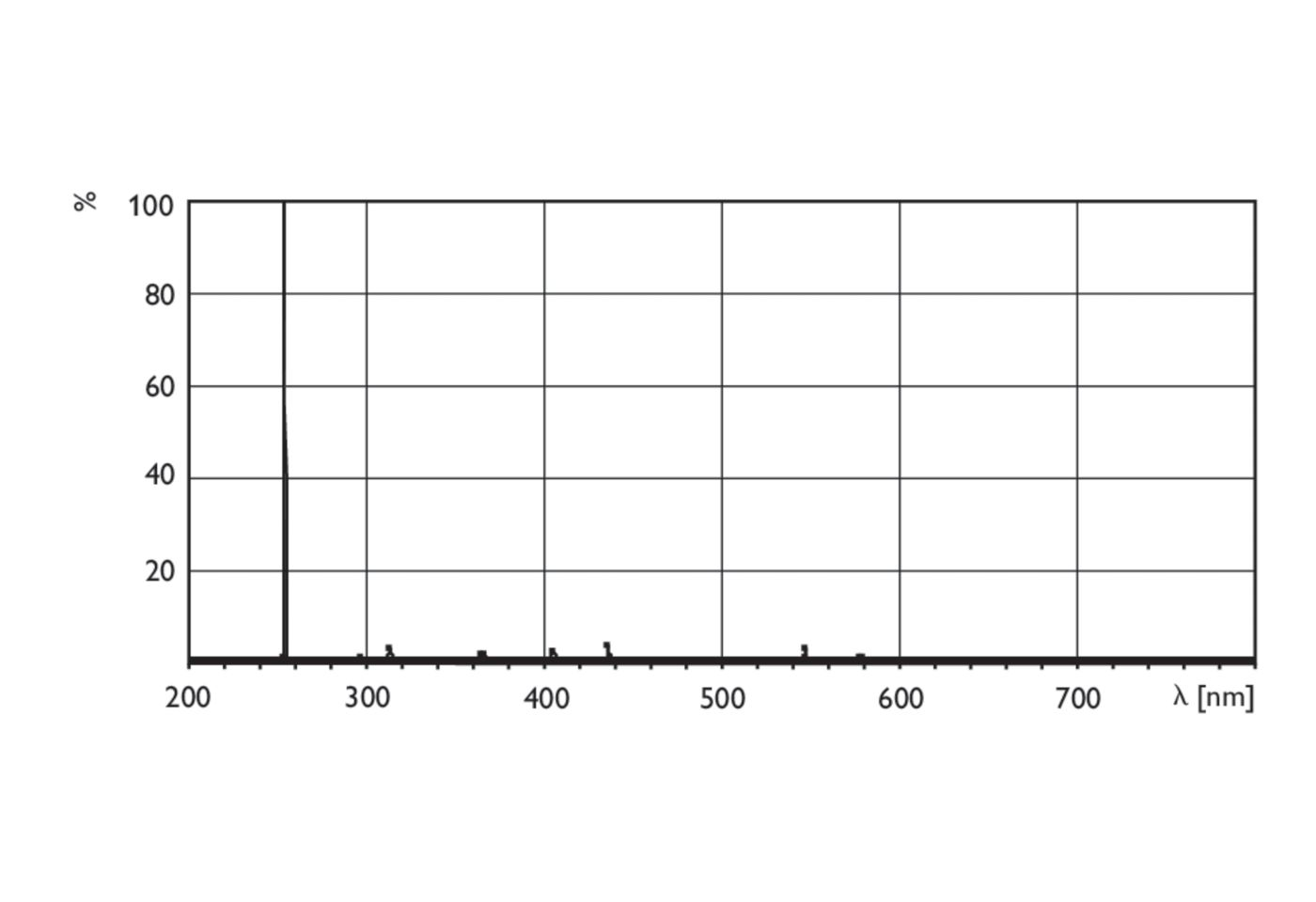

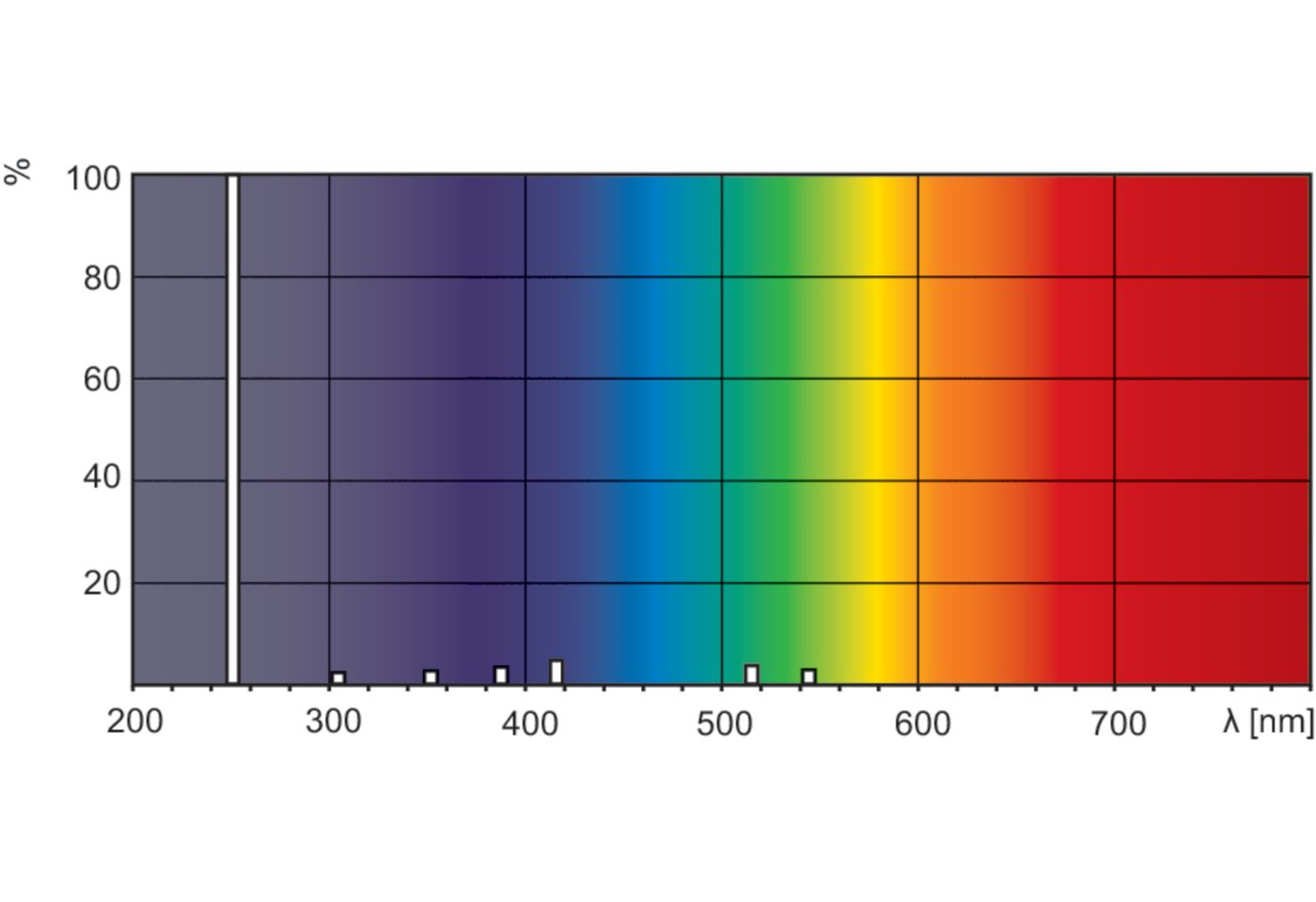

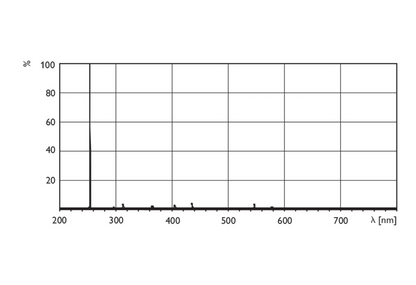

  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
  • Special amalgam used for highest efficiency over wide temperature range
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • Special lamp glass filters out the 185 nm ozone-forming radiation
  • Philips electronic driver available for a perfect interface
  • Universal burning position possible depending on the application
  • Lamp can be made from special quartz (open / synthetic) to maximize 185nm Ozone generation

General Information

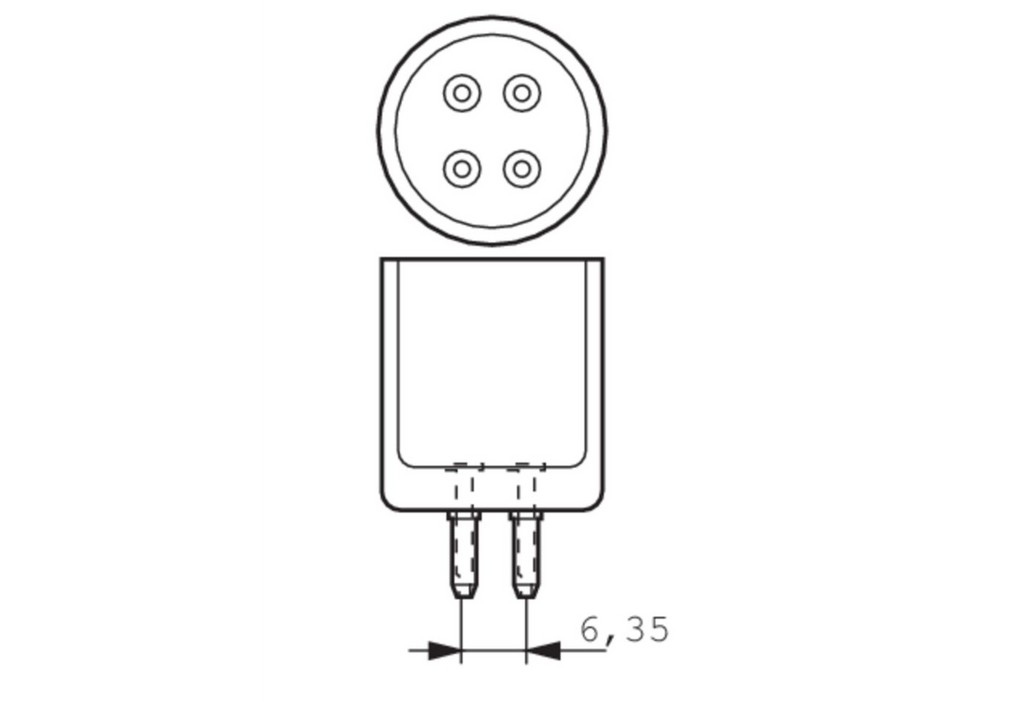

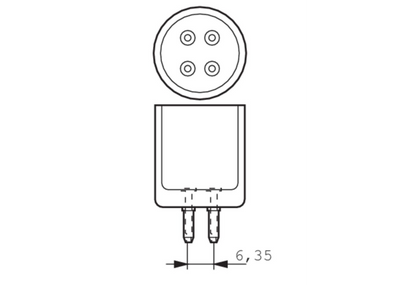

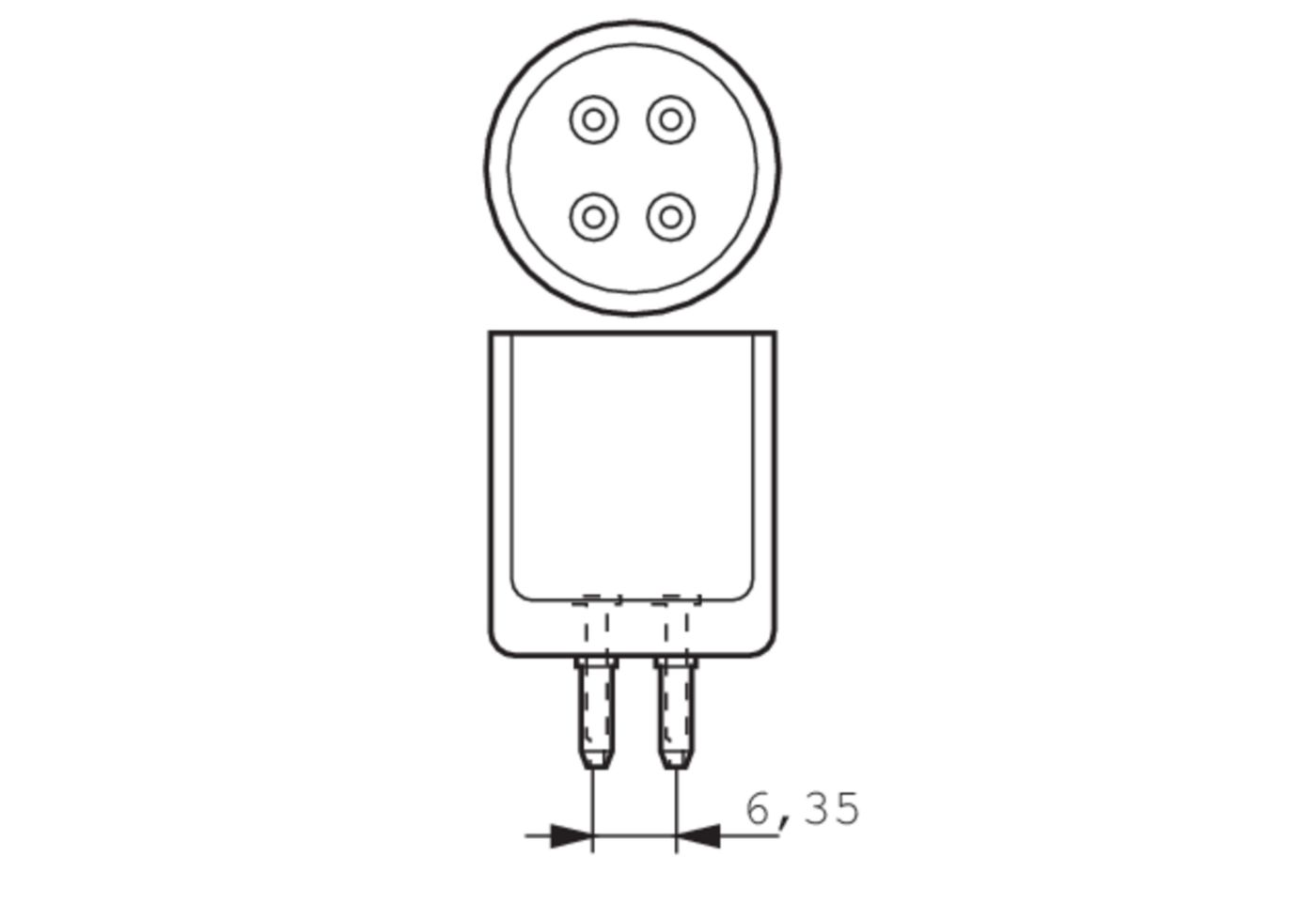

  • Cap-Base G10.2Q  [ G10.2q]

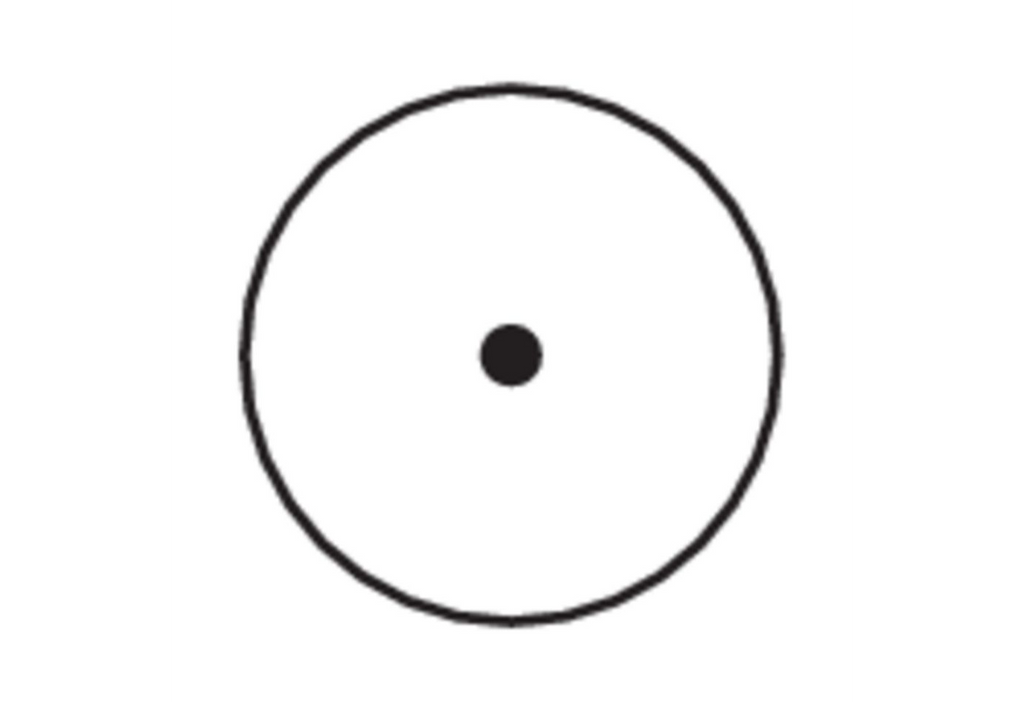

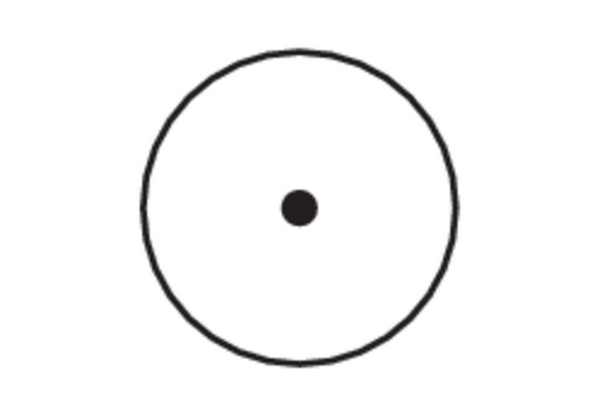

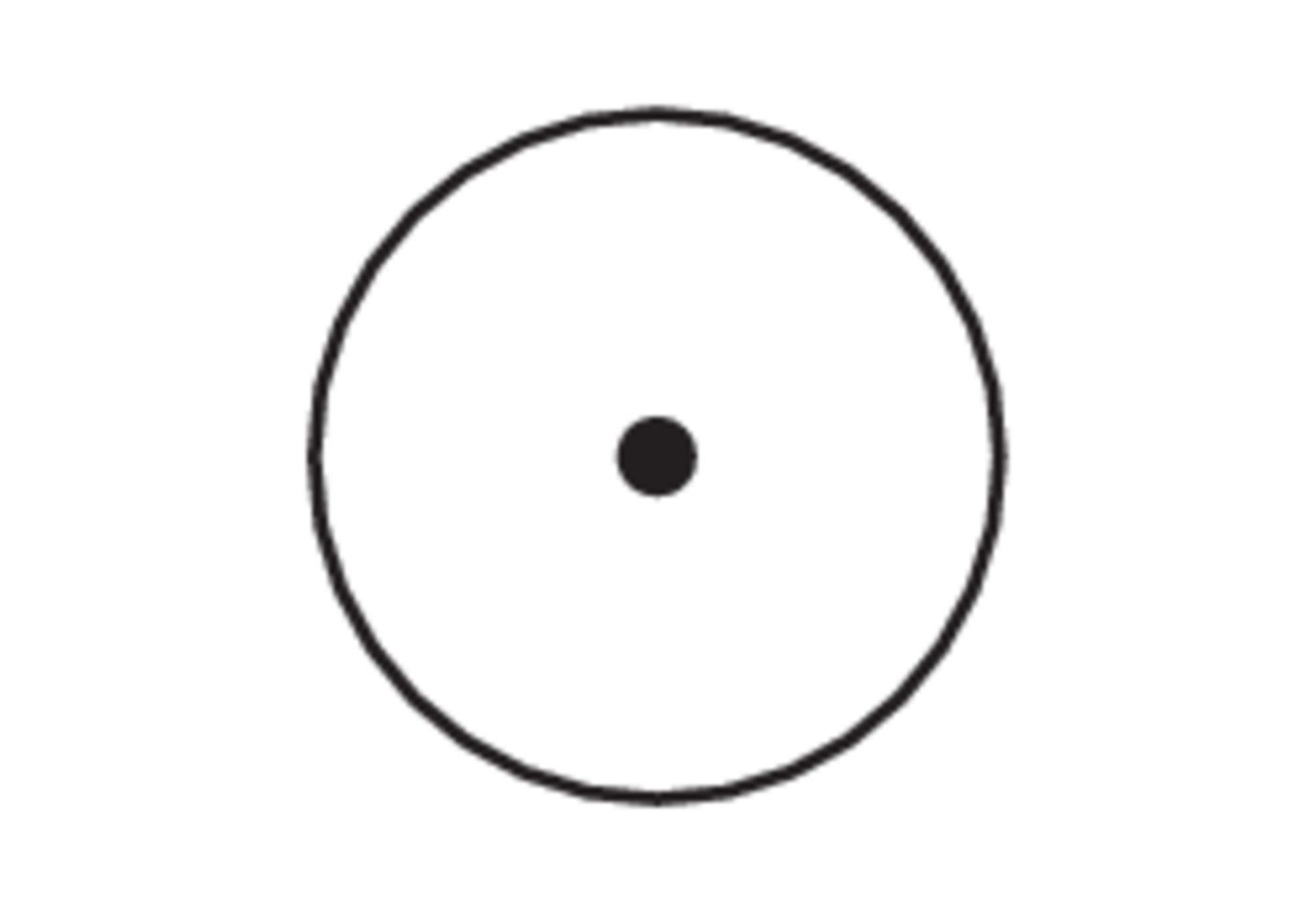

  • Operating Position UNIVERSAL  [ Any or Universal (U)]
  • Main Application Disinfection

Light Technical

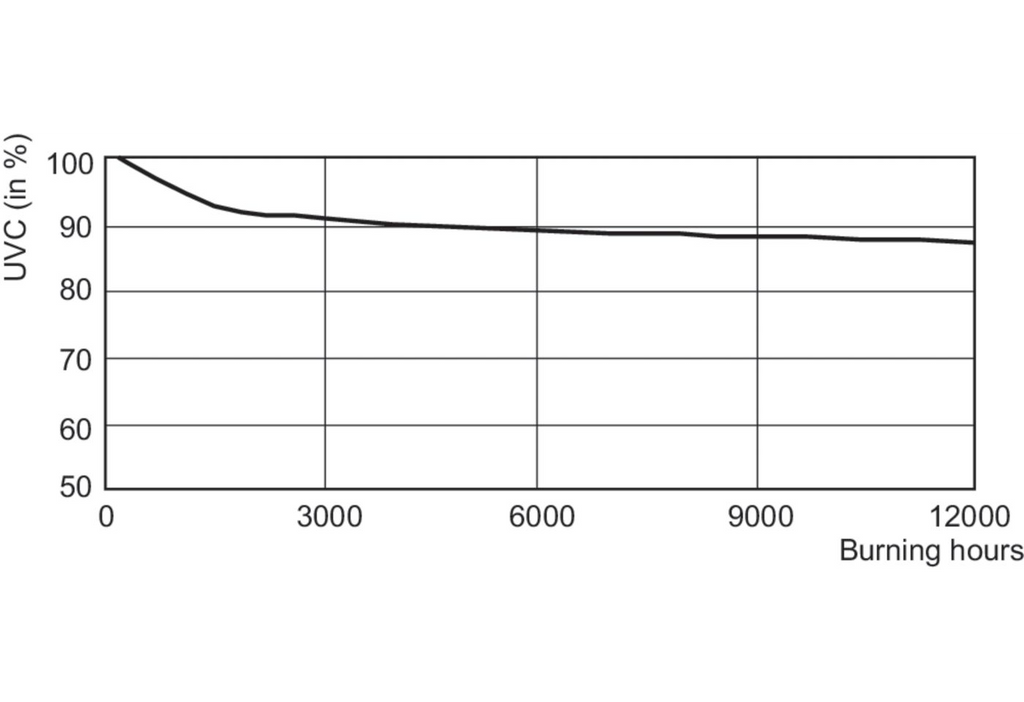

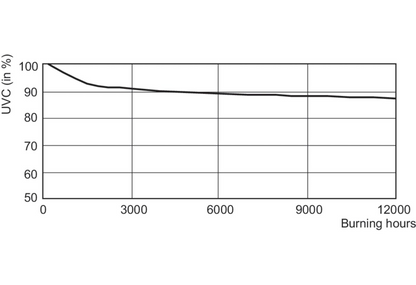

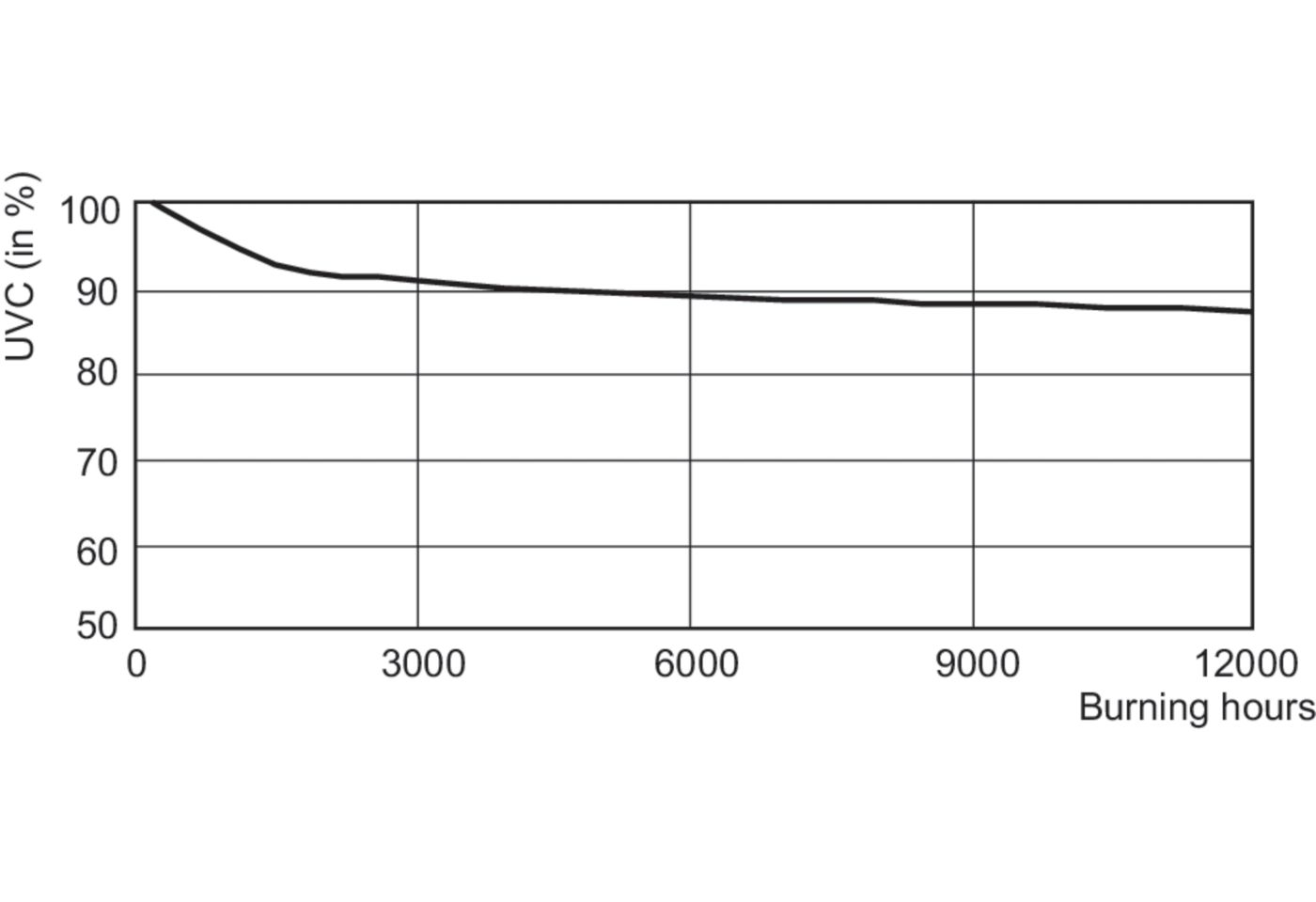

  • Depreciation at Useful Lifetime 15 %

Operating and Electrical

  • Power (Nom) 325 W
  • Lamp Current (Nom) 2.1 A
  • Ignition Supply Voltage (Min) 158 V

Controls and Dimming

  • Dimmable Yes
