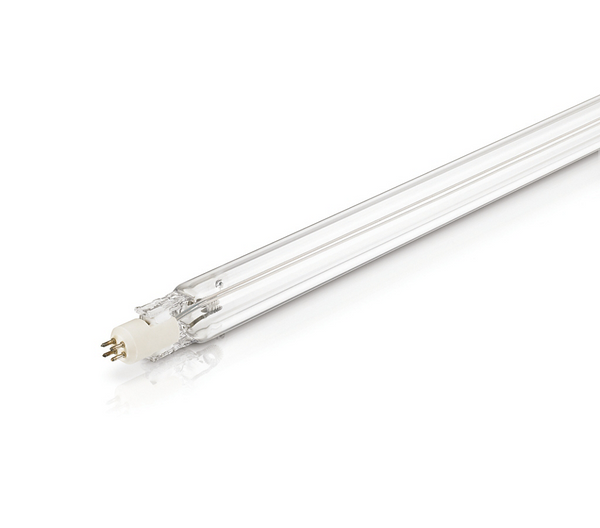

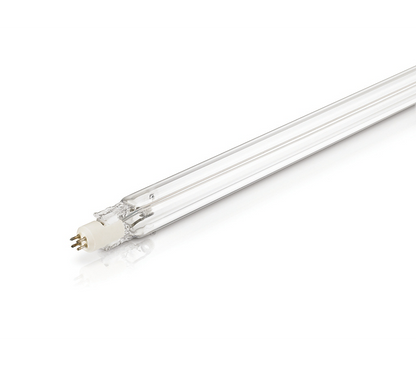

Philips TUV 800W XHO SE (Qty. 1)
Available. Ships within 4 weeks.
Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp
UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp
UV Quartz Sleeve for safety is also available for this UVC lamp

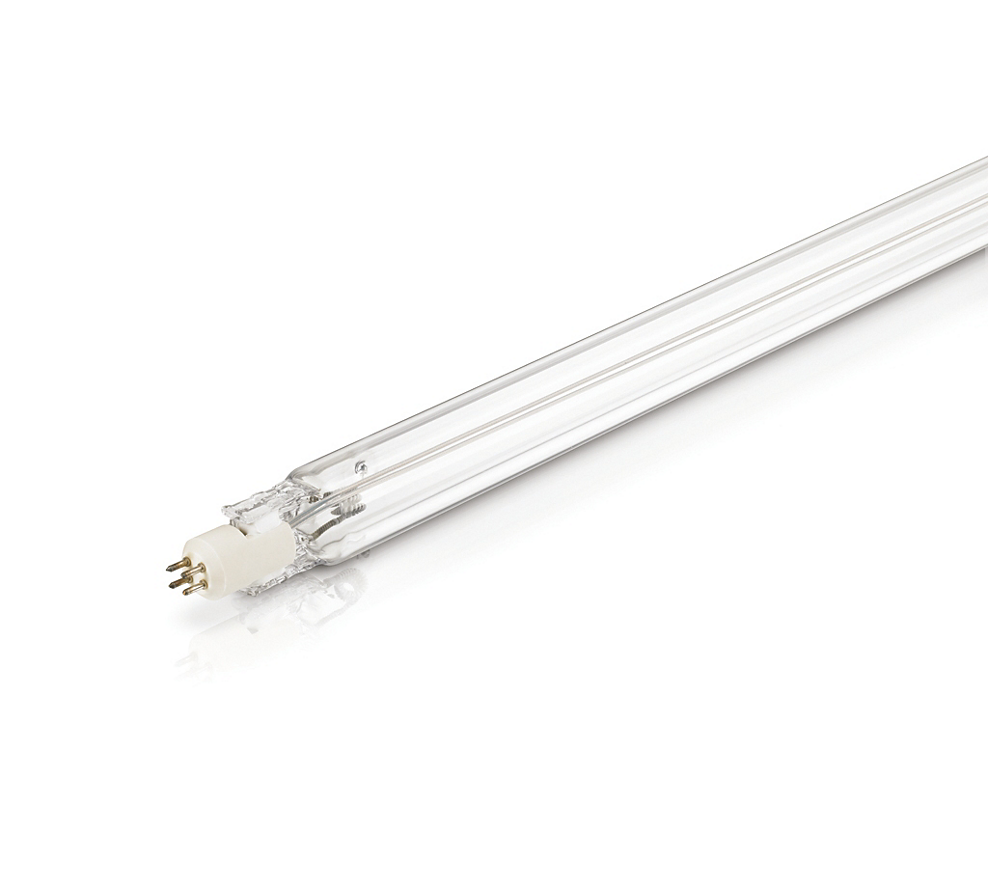

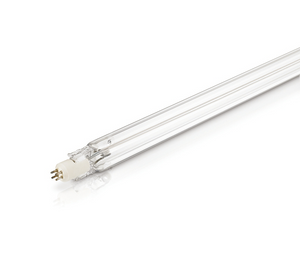

TUV Amalgam XPT systems - TUV 800W XHO SE (TUV 800W / XHO800W)
Philips TUV Amalgam XPT system consists of an electronic driver that operates one TUV Amalgam XPT lamp, mounted in a sleeve. The electrical specifications are tailored to the lamp, ensuring an optimized performance of the Philips TUV Amalgam XPT system. Thanks to extensive testing before a lamp system is released, we can ensure maximum reliability and long lifetime.
Benefits
- Security of effective disinfection over the useful lifetime of the lamp
- Approximately 10% energy savings, because lamps can be dimmed to reach the same UV output compared to similar lamps on the market
- High efficiency during dimming thanks to unique amalgam temperature control of the 800W lamps
- Extreme reliability of driver; with annual failure rate of less than 1%
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Best environmental choice because of long reliable life, less waste and industry leading low amount of mercury
Features

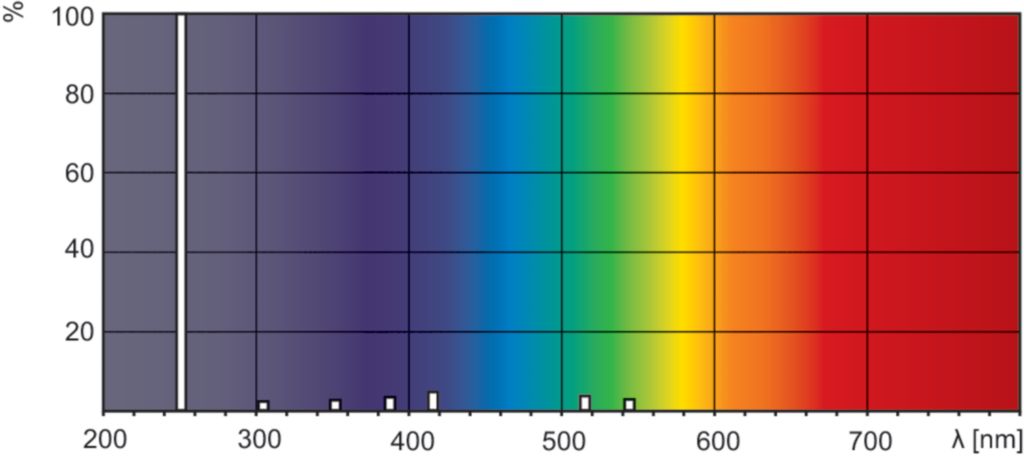

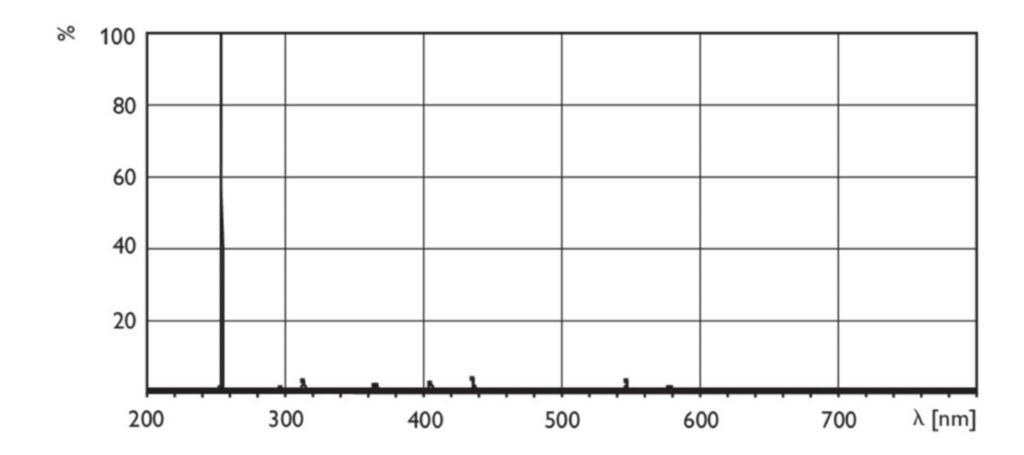

- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection

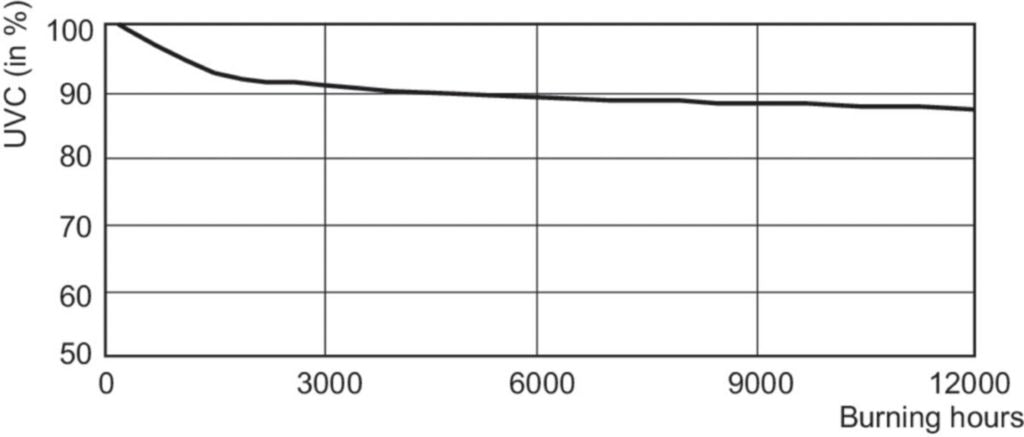

- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Universal burning position possible for the T6 range, depending on lamp type and sleeve dimensions
- Special amalgam used for highest efficiency over wide temperature range
- Philips electronic driver available for a perfect interface
- Minimized amount of mercury
- Tailor-made solutions possible
- Lamp can be made from special quartz (open/synthetic) to maximize 185 nm Ozone generation
Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Process water treatment equipment
- Equipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industry (ozone version)
- Municipal drinking water treatment equipment
- Swimming pool units
Specificatioons

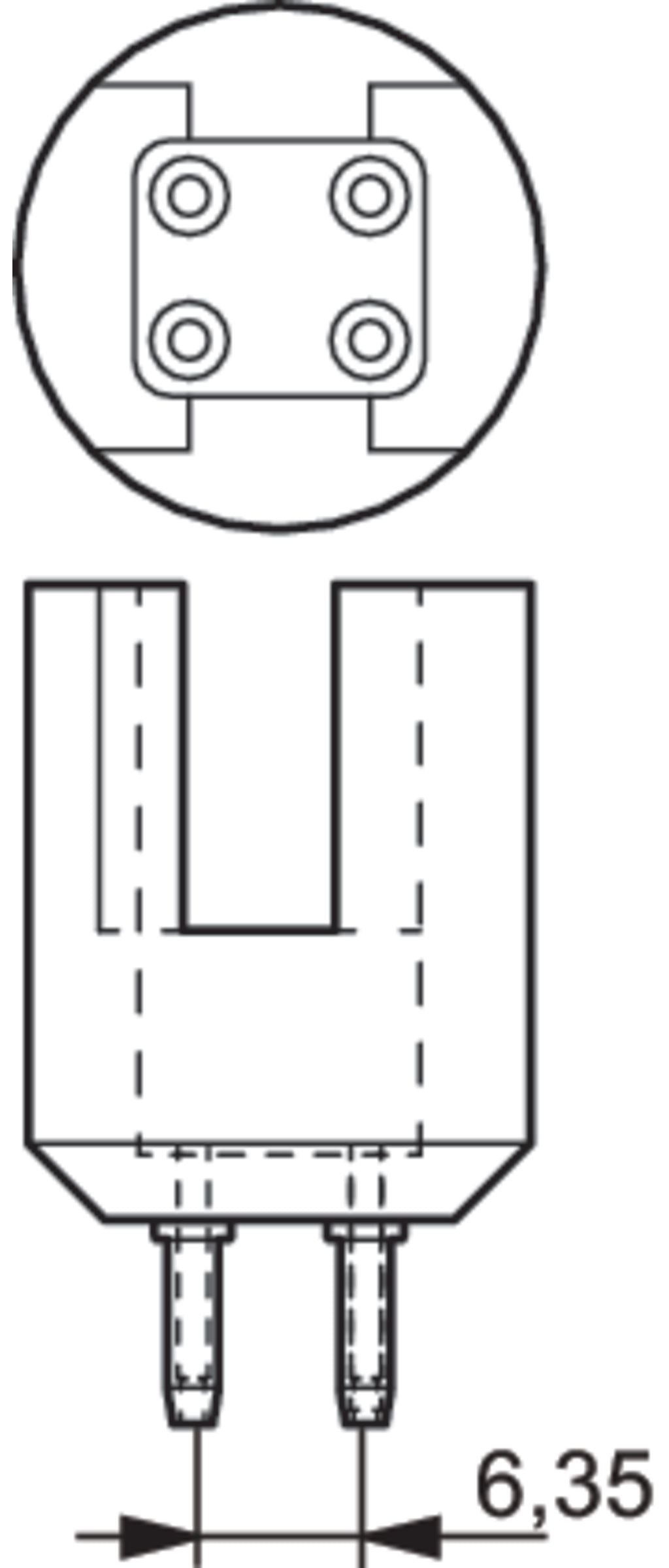

- Cap-Base GX10.2Q [ GX10.2q]

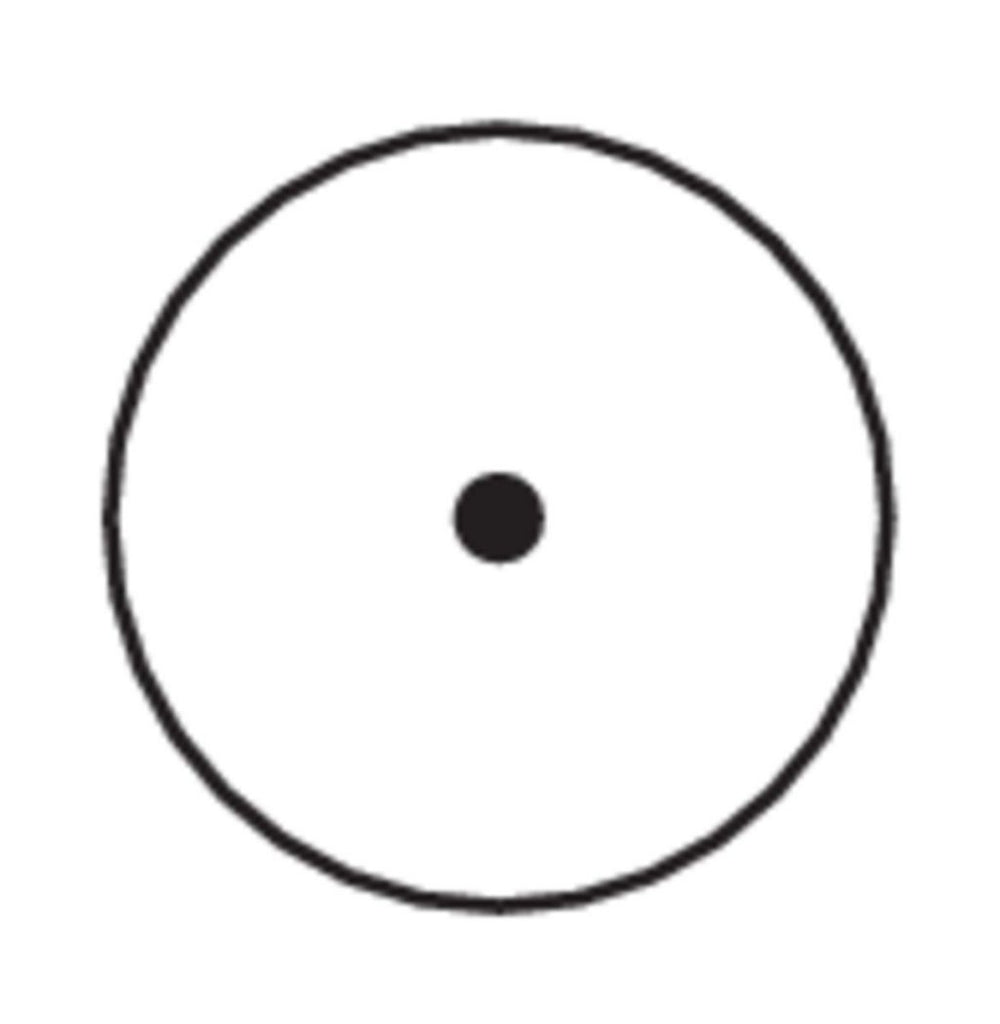

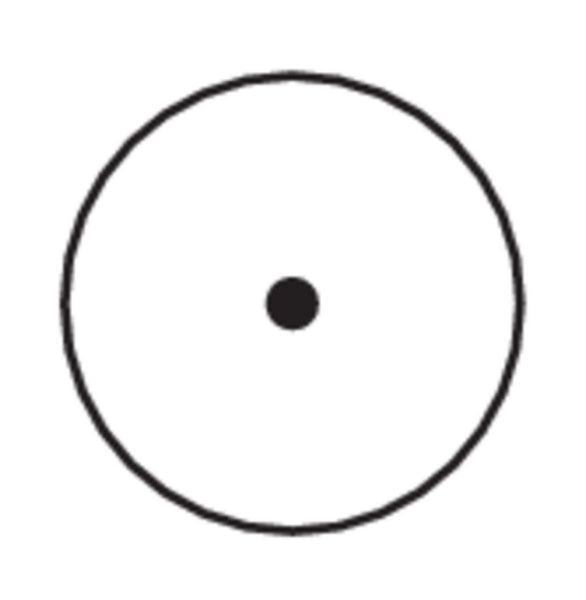

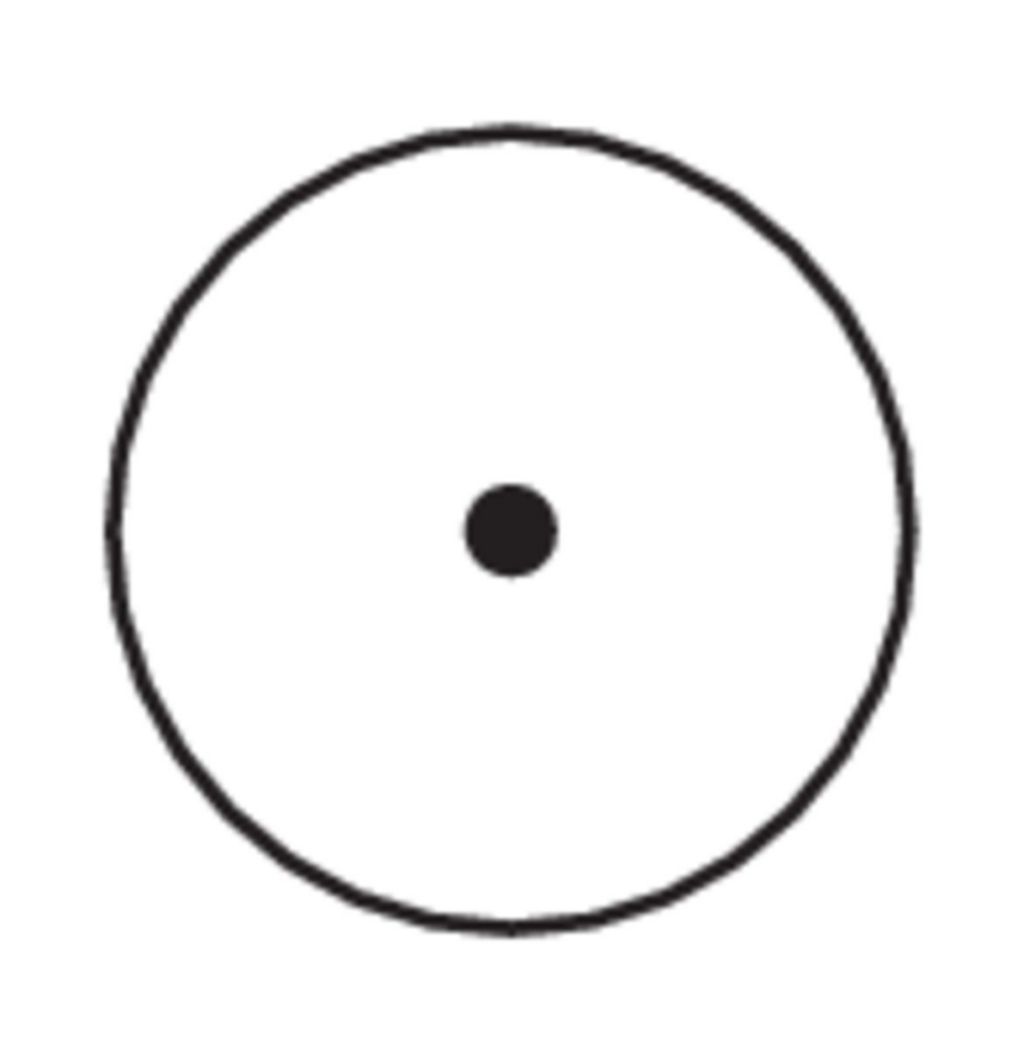

- Operating Position UNIVERSAL [ Any or Universal (U)]
- Main Application Disinfection
- Power (Nom) 800 W
- Lamp Current (Nom) 8 A
- Dimmable Yes
- Luminaire Design Requirements: Bulb Temperature (Nom) 180 °C & Pinch Temperature (Nom) 95 °C
- Net Weight (Piece) 0.739 kg
