Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)
Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)
Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)
Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)
Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)

Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)

Regular price Rs. 1,980.00

Please Contact Us for Estimated Dispatch Date

Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp

UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp

UV Quartz Sleeve for safety is also available for this UVC lamp

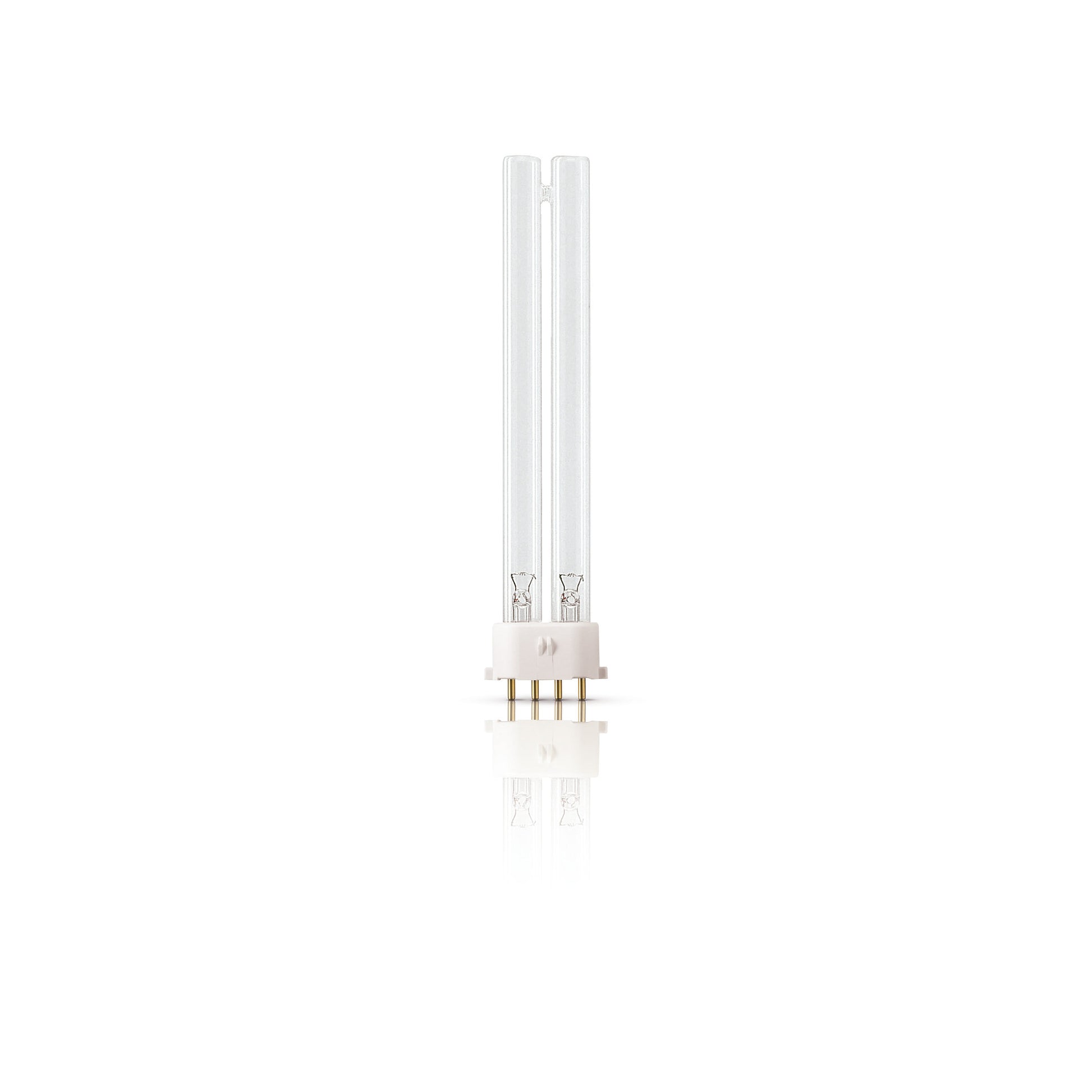

TUV PL-S (TUV9W / PLS9W)

TUV PL-S lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Specifications

General Information

  • Cap-Base 2G7  [ 2G7]
  • Main Application Disinfection
  • Useful Life (Nom) 9000 h

Light Technical

  • Color Code TUV
  • Depreciation at Useful Lifetime 20 %

Operating and Electrical

  • Power (Nom) 8.6 W
  • Lamp Current (Nom) 0.17 A
  • Voltage (Nom) 60 V

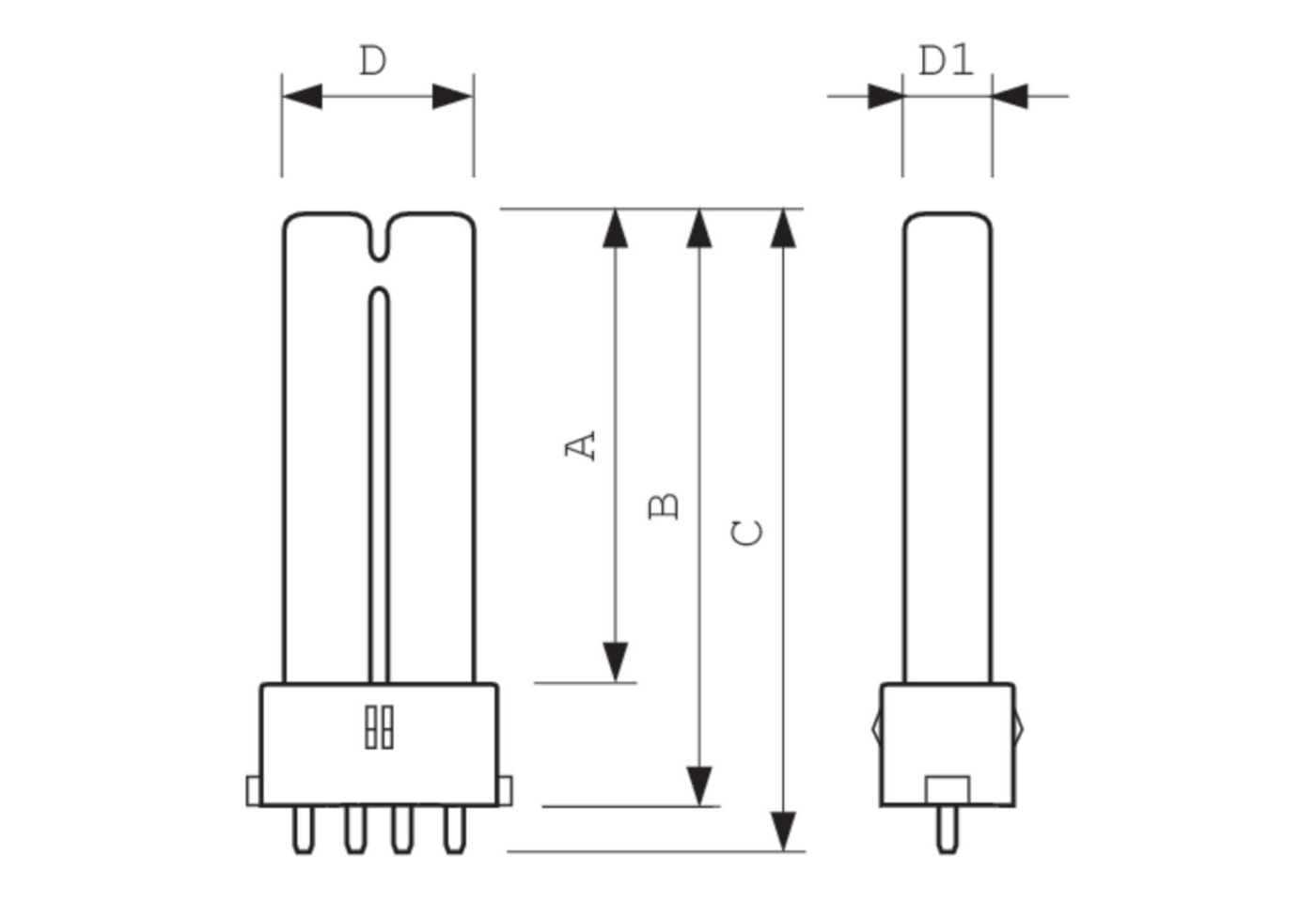

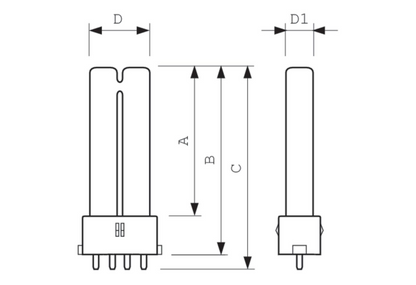

Mechanical and Housing

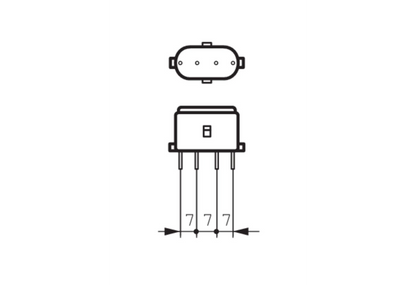

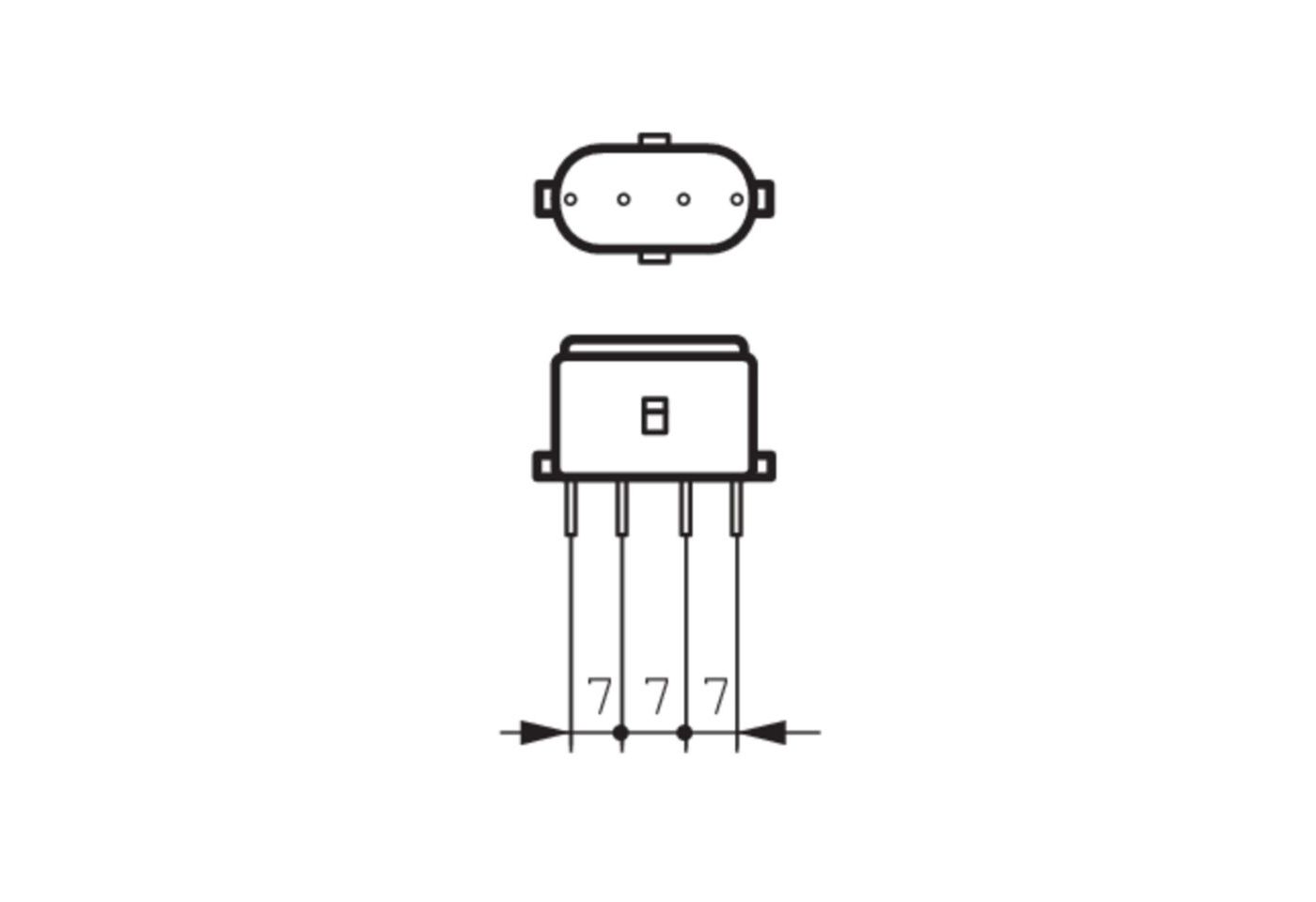

  • Cap-Base Information 4 Pins

Approval and Application

  • Mercury (Hg) Content (Nom) 3.0 mg

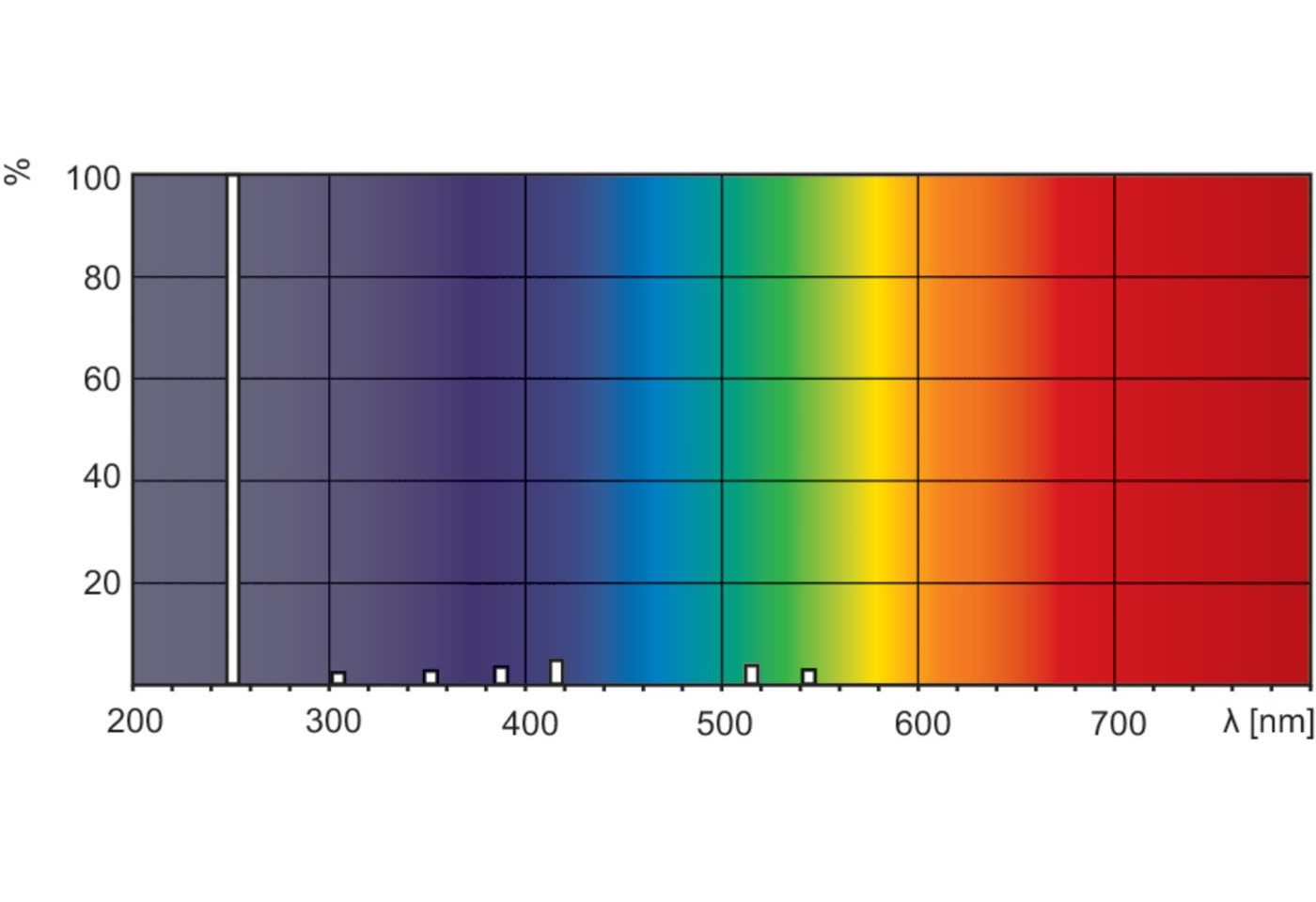

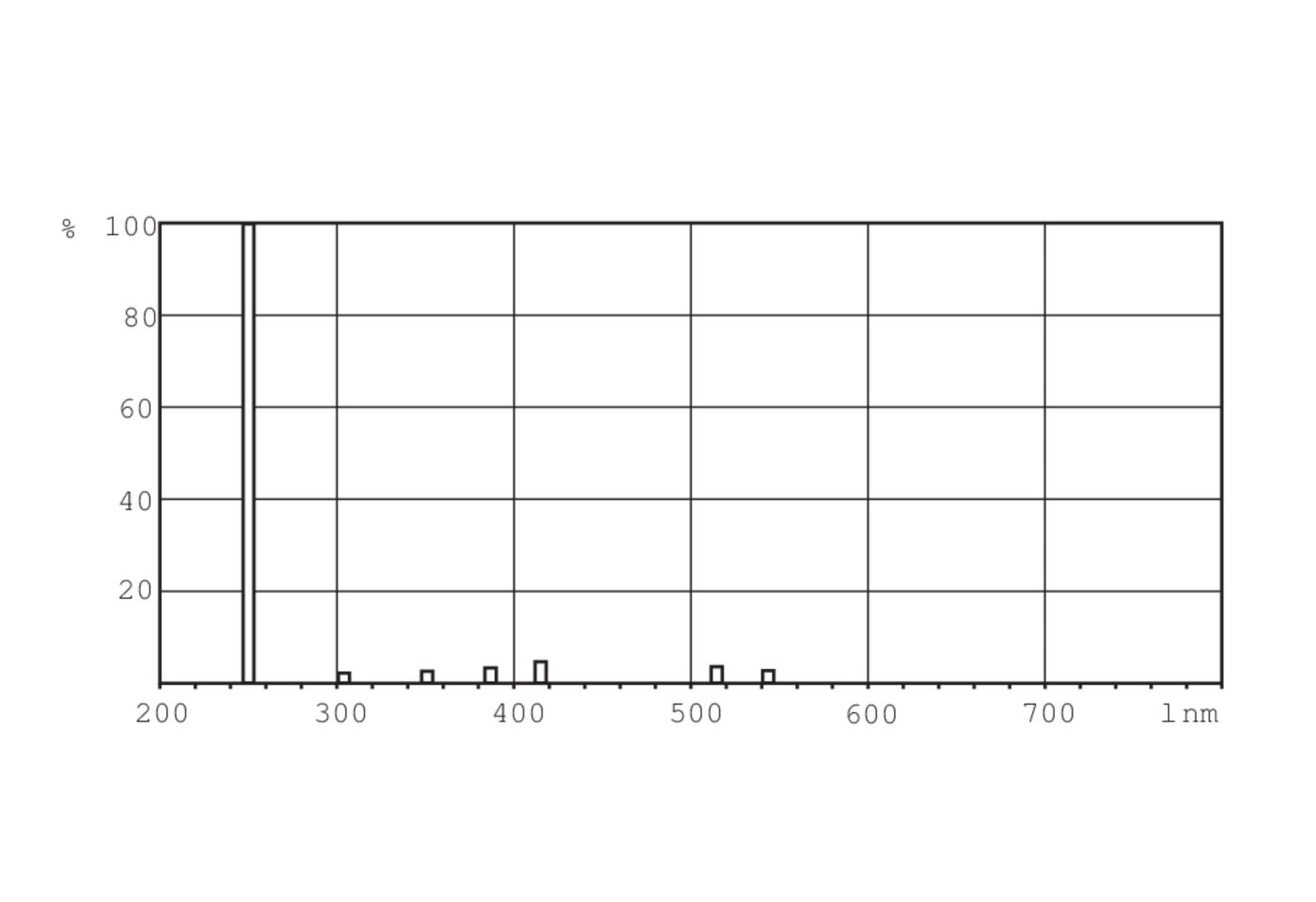

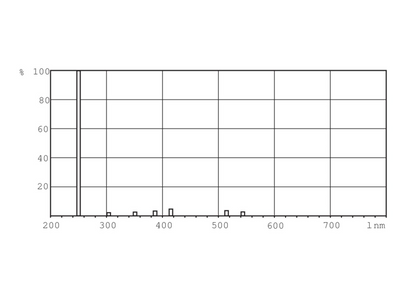

  • UV
  • UV-C Radiation at 100 hr 2.3 W
