Philips TUV PL-L 95W/4P HO 1CT/25 (Qty. 2)

Rs. 5,300.00

In Stock. Ships within 5 business days

Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp

UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp

UV Quartz Sleeve for safety is also available for this UVC lamp

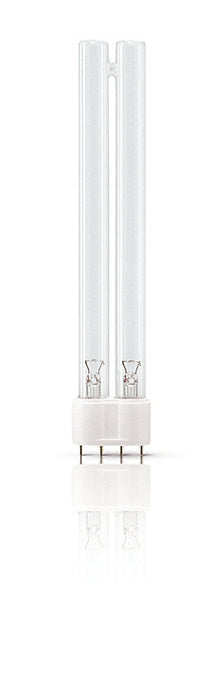

TUV PL-L 95W/4P HO 1CT/25 (TUV95W / PLL95W)

TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Benefits

Security of effective disinfection over the useful lifetime of the lamp
High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

Features

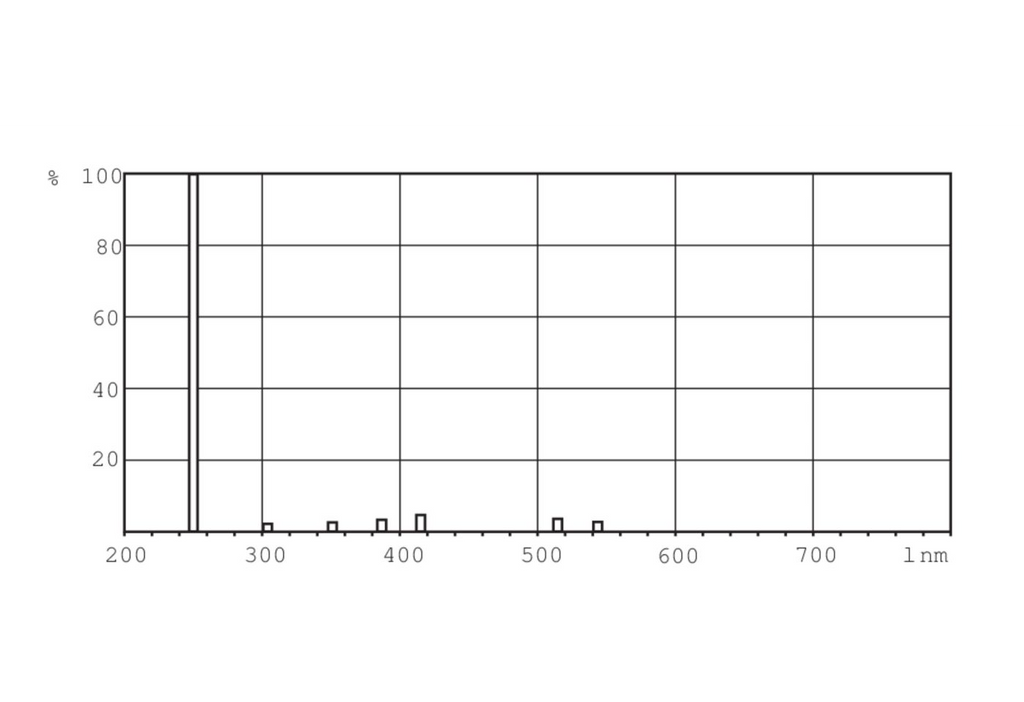

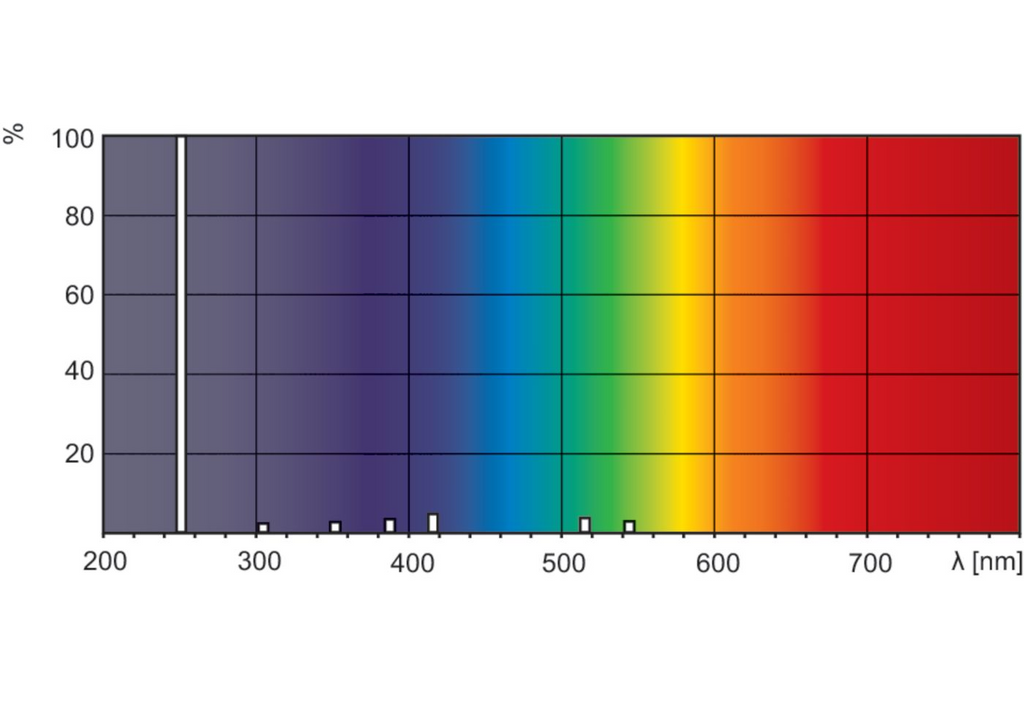

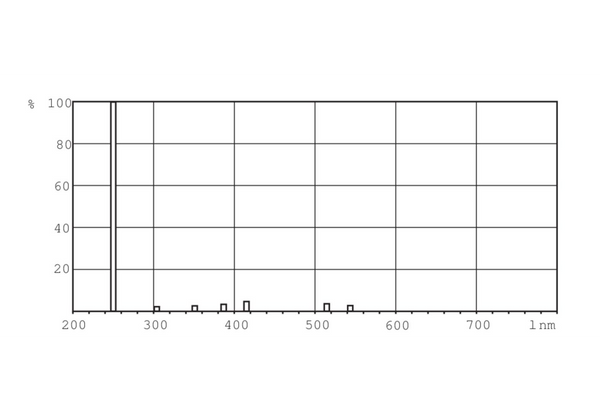

Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
Special lamp glass filters out the 185 nm ozone-forming radiation
High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
Protective inside coating ensures constant UV output over the complete lifetime of the lamp
High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
Warning sign on lamp indicates that the lamp radiates UVC

Applications

Deactivation of bacteria, viruses and other micro-organisms
Fish pond and process water units
Stand alone air purifiers
Residential drinking water units
In-duct air treatment units
Air disinfection systems in for example hospitals, universities and laboratories

Cap-Base 2G11 [ 2G11]
Main Application Disinfection
Useful Life (Nom) 9000 h
System Description High Frequency
Color Code TUV
Depreciation at Useful Lifetime 15 %
Power (Nom) 90 W
Voltage (Nom) 115 V
Lamp Current (Nom) 0.8 A

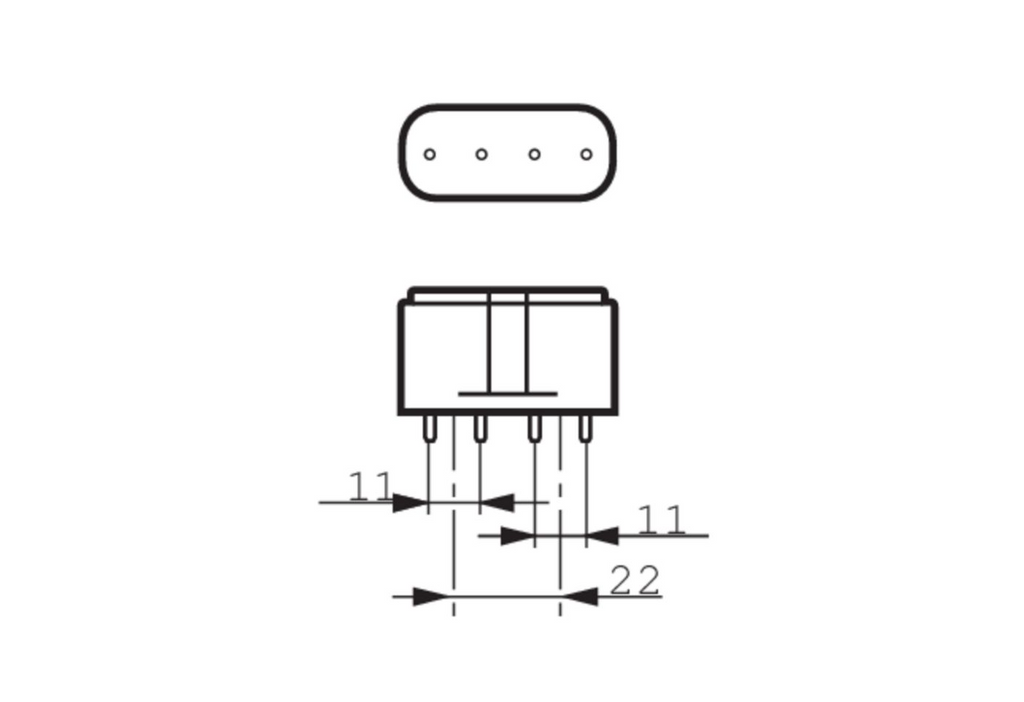

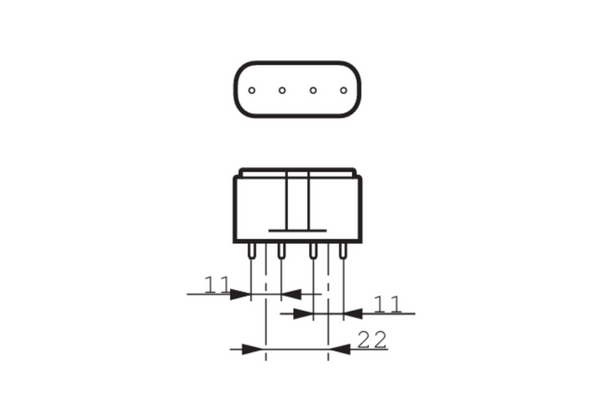

Cap-Base Information 4 Pins
Mercury (Hg) Content (Nom) 4.4 mg
UV-C Radiation at 100 hr 27.0 W
Net Weight (Piece) 134.000 g
