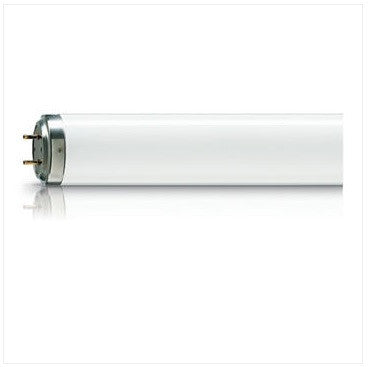

Philips TL 20W/52 SLV/25 (Qty. 3)

Philips TL 20W/52 SLV/25 (Qty. 3)

Regular price Rs. 2,600.00

In Stock. Ships within 5 business days

Compatible/Right UV Lamp Ballast/Choke for superior UV lamp life is also available for this UV lamp

UV-compatible Lampholder to prevent premature failure of UV Lamp is also available for this UV lamp

UV Quartz Sleeve for safety is also available for this UV lamp

Medical Therapy Jaundice TL/TL-D. Bili / Bilirubin Lamp.

By emitting light almost entirely within the 400 to 500 nm bandwidth these Medical Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants.

Benefits

  • Optimal spectrum for photo-oxidative process to convert unconjugated bilirubin into a watersoluble form

Features

  • Emission peak at 450 nm

System

  • Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start systems

Applications

  • Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
General Characteristics
Cap-Base G13
Bulb T38
Main Application Medical Therapy
Useful Life 2000 hr
Life to 50% failures EM 9000 hr
Light Technical Characteristics
Color Code 52
Color Designation (text) Medical
Chromaticity Coordinate X 154 -
Chromaticity Coordinate Y 69 -
Luminous Flux Lamp EM 360 Lm
Lumen Maintenance 2000h 85 %
Lumen Maintenance 5000h 75 %
Depreciation 2000 hours 20 %
Electrical Characteristics
Lamp Wattage 20 W
Lamp Wattage Technical 19.3 W
Lamp Voltage 57 V
Lamp Current 0.37 A
Dimmable No
Environmental Characteristics
Mercury (Hg) Content 8.0 mg
Product Dimensions
Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 40.5 (max) mm
Product Data
Order code 928003505203
Full product code 928003505203
Full product name TL 20W/52 SLV
Order product name TL 20W/52 SLV/25
Pieces per pack 1
Packing configuration 25
Packs per outerbox 25
Bar code on pack - EAN1 8711500643025
Bar code on outerbox - EAN3 8711500643032
Logistic code(s) - 12NC 928003505203
Net weight per piece 156.000 gr
