Philips 7388 20W G4 6V 1CT Halogen Non-Reflector (Qty. 8)
Philips 7388 20W G4 6V 1CT Halogen Non-Reflector (Qty. 8)
Philips 7388 20W G4 6V 1CT Halogen Non-Reflector (Qty. 8)
Philips 7388 20W G4 6V 1CT Halogen Non-Reflector (Qty. 8)

Philips 7388 20W G4 6V 1CT Halogen Non-Reflector (Qty. 8)

Regular price Rs. 2,250.00

In Stock. Ships within 2 business days

Compatible lampholder to prevent premature failure of lamp is also available for this lamp

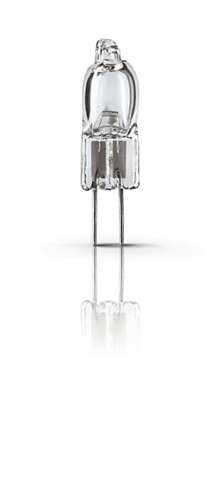

Philips Halogen Non-Reflector 7388 20W G4 6V 1CT

Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 – the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.

Benefits

  • Optimal beam performance
  • Constant light output throughout lifetime
  • 100% Color Rendering Index (CRI)

Features

  • Distortion-free, quartz bulb and precisely defined filament position
  • Flat filament available
  • Lamp replacement without adjustment
  • XHP version with xenon gas for maximum light output

Applications

  • Studio, film, theatre and disco lighting
  • Microscopes
  • Slide and film viewers
  • Microfilm readers
  • Spectrography
  • Slide, overhead, profile and 8/16 mm film projectors
  • Optical equipment
  • Surgery lamps
  • Dental lamps

General Characteristics

Philips Code
7388
ANSI Code
ESB
LIF Code
M30

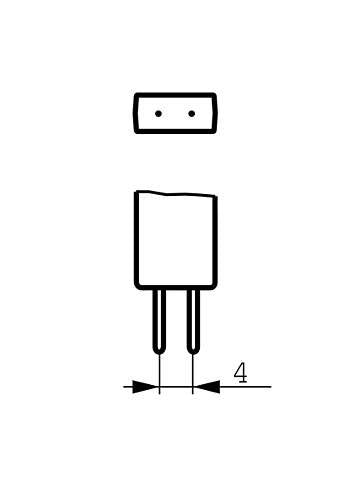

Cap-Base
G4
Bulb Material
Quartz-UV Open
Operating Position
any
Main Application
Projection
Life to 50% failures
100 hr
Light Technical Characteristics
Color Rendering Index
100 Ra8
Color Temperature Technical
3200 K
Luminous Flux Lamp EM
475 Lm
Electrical Characteristics
Lamp Wattage
20 W
Voltage
6 V
Luminaire Design Requirements
Pinch Temperature
400 (max) C
Bulb Temperature
900 (max) C

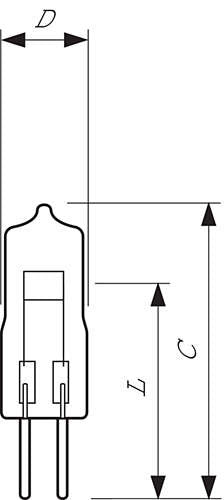

Product Dimensions
Overall Length C
31 (max) mm
Diameter D
9 (max) mm
Light Center Length L
19.75 (max) mm
Filament Dimensions (WxH) [mm]
1.6x0.6
Product Data
Order code
923874610103
Full product code
923874610103
Full product name
7388 20W G4 6V 1CT
Order product name
7388 20W G4 6V 1CT/10X10F
Pieces per pack
1
Packing configuration
10X10F
Packs per outerbox
100
Bar code on pack - EAN1
8711500409867
Bar code on intermediate packing - EAN2
8711500420114
Bar code on outerbox - EAN3
8711500423306
Logistic code(s) - 12NC
923874610103
Net weight per piece
0.001 kg
