Philips TUV PL-S 9W/4P 1CT/6X10BOX (Qty. 4)
In Stock. Ships within 5 business days
Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp
UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp
UV Quartz Sleeve for safety is also available for this UVC lamp

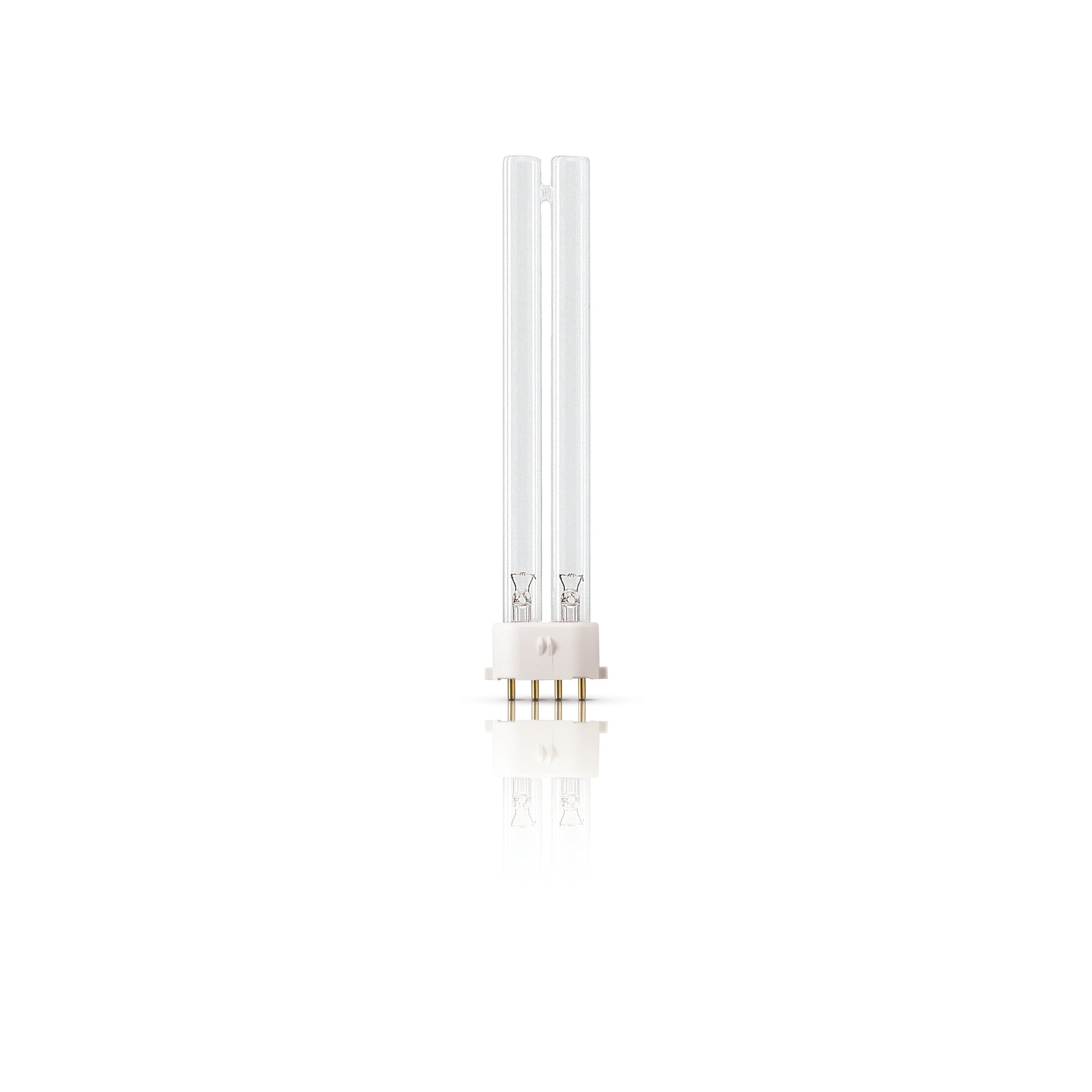

TUV PL-S (TUV9W / PLS9W)
TUV PL-S lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.
Benefits
- Security of effective disinfection over the useful lifetime of the lamp
- Good environmental choice because of lowest amount of mercury
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
Features

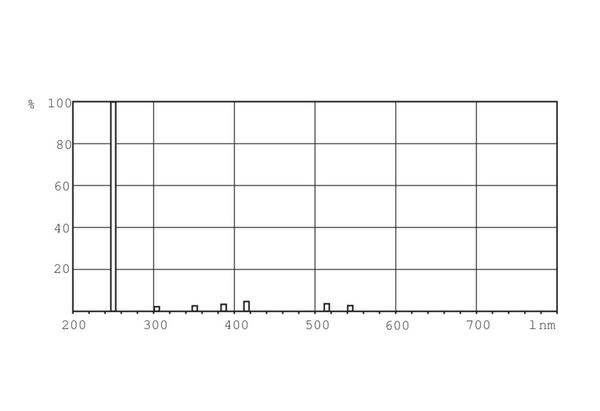

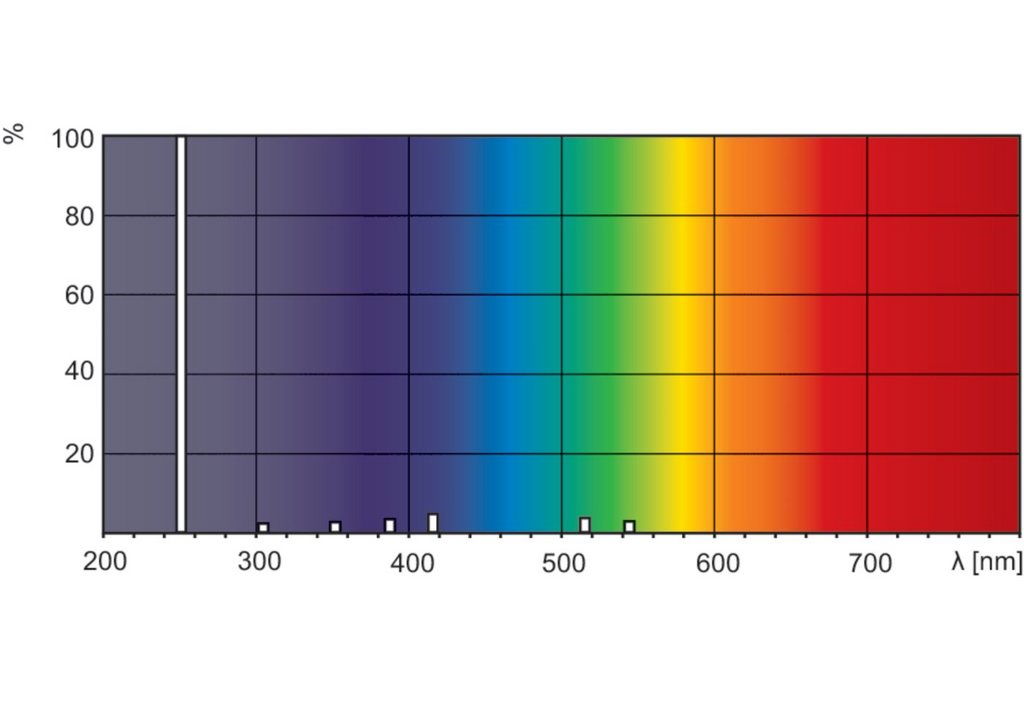

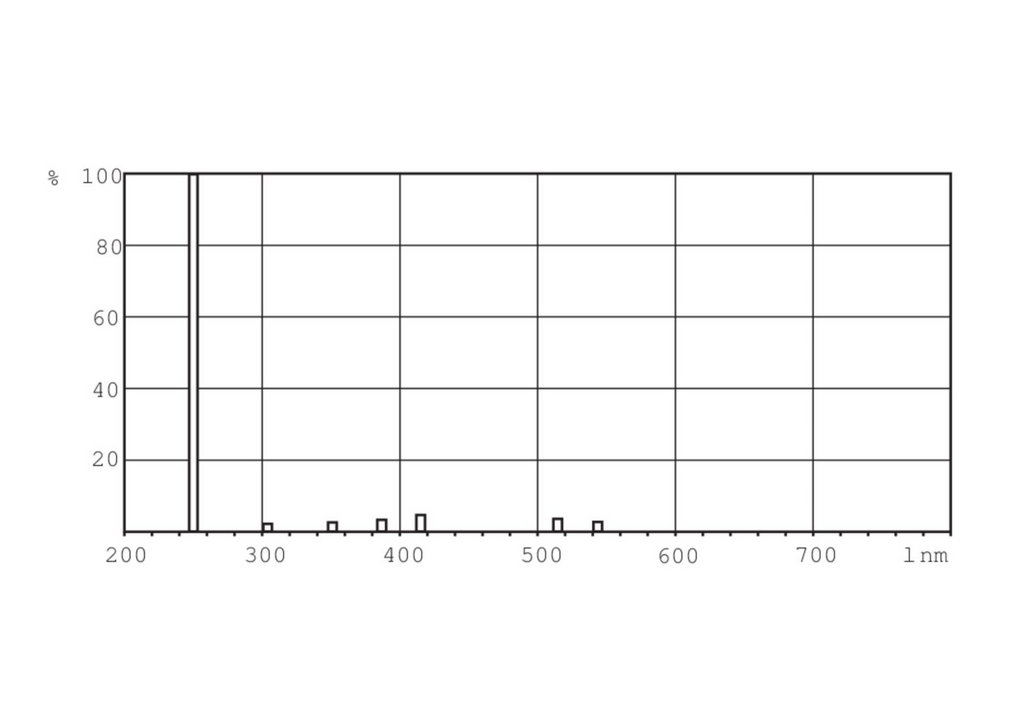

- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Lamp glass filters out the 185 nm ozone-forming radiation
- 4-Pin PL-S lamps are designed for use on electronic drivers
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- 2-Pin PL-S lamp base contains a special starter for almost instant starting on electromagnetic drivers
- Warning sign on lamp indicates that the lamp radiates UVC
Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Pond water units
- Stand-alone purifiers
- Residential drinking water units
- Air treatment units
Specifications
General Information
- Cap-Base 2G7 [ 2G7]
- Main Application Disinfection
- Useful Life (Nom) 9000 h
Light Technical
- Color Code TUV
- Depreciation at Useful Lifetime 20 %
Operating and Electrical
- Power (Nom) 8.6 W
- Lamp Current (Nom) 0.17 A
- Voltage (Nom) 60 V
Mechanical and Housing

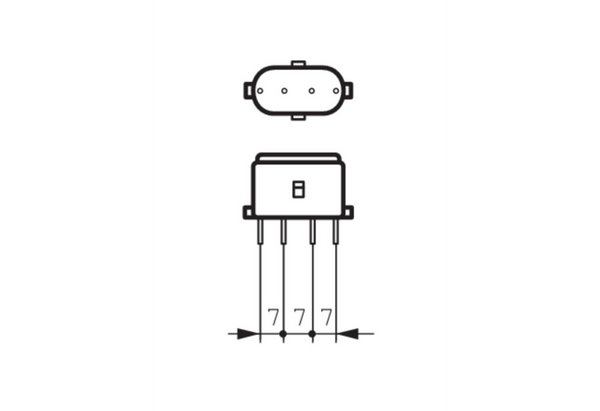

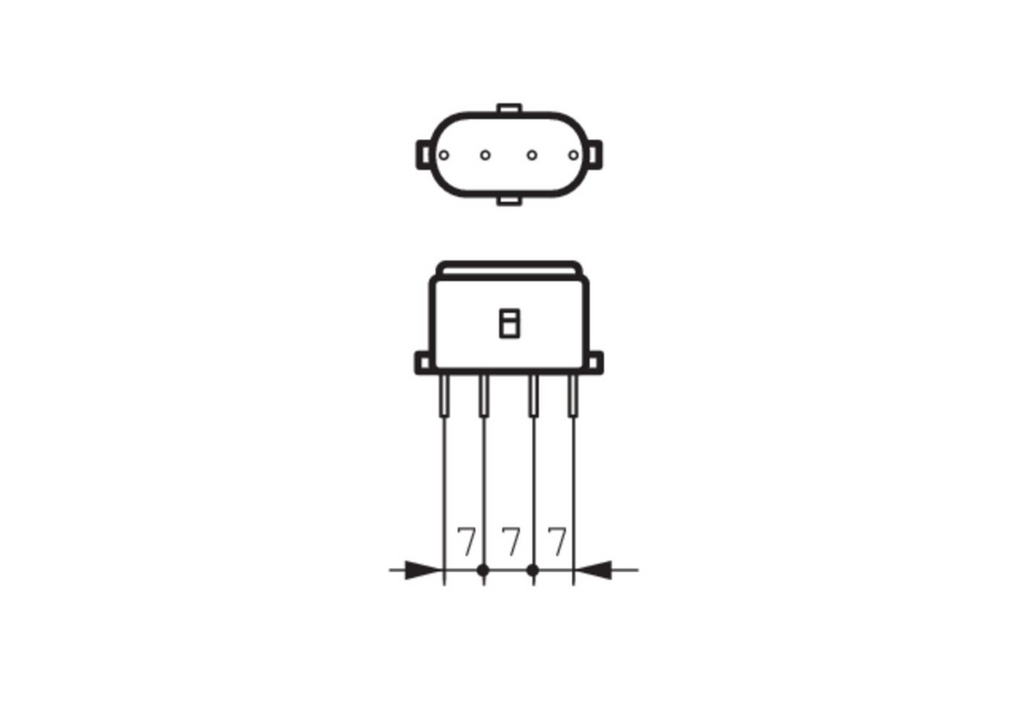

- Cap-Base Information 4 Pins
Approval and Application
- Mercury (Hg) Content (Nom) 3.0 mg
- UV
- UV-C Radiation at 100 hr 2.3 W
