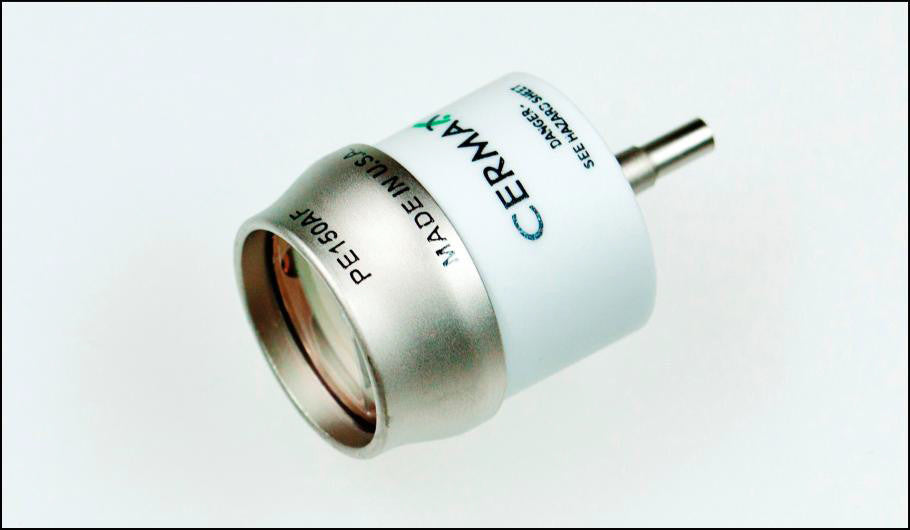

Excelitas PE150AF Cermax Xenon Short Arc Ceramic Body Parabolic Lamp

Excelitas PE150AF Cermax Xenon Short Arc Ceramic Body Parabolic Lamp

Regular price Rs. 30,240.00

In Stock. Ships within 5 business days.

PE150AF features high-intensity illumination - 1350 Lumens, with a power range of 100-150 Watts. Lamp lifetime is 1,000 hours. The PE150AF has a broad spectral range with 5900-degree Kelvin color temperature, all in a compact size.

Body Type

Ceramic

Reflector Type

Parabolic

Lumens

1,350

Power range

(Watts)

100-150

UV Output, Watts

(<390 nm)

0.9

Power: Nominal

150 Watts

Power: Range

100-150 Watts

Current: Nominal

11 amps (DC)

Current: Range

10-14 amps (DC

Operating Voltage:

Nominal

11.7 Volts (DC)

Operating Voltage:

Range

10-13.6 Volts (DC)

Ignition Voltage

23 kilovolts (recommended minimum)

Temperature

120° C (maximum)

Lifetime

1000 hours typical



Key Features

  • High-intensity illumination—1350 Lumens
  • Compact size
  • Power range of 100-150 Watts
  • 1000 hours lamp lifetime
  • Broad spectral range with 5900o Kelvin color temperature

Applications

  • Medical fiber optic illuminators
  • Industrial fiber optic illuminators
  • Machine vision
  • Infrared and visible spotlights/beacons
  • Spectroscopy
  • Microscopy
  • UV Curing
  • Video projection

Cermax® Xenon short-arc lamps from Excelitas Technologies are ideal for applications that require a high degree of illumination control.

The Cermax® Xenon short-arc lamp from Excelitas Technologies is an innovative lamp design in the specialty lighting industry. Cermax® Xenon lamps were first introduced in the early 1980s and are now used in diagnostic and surgical endoscopes in most major hospitals worldwide, in high-brightness projection display systems, and for a wide variety of other high-performance applications.

The Cermax® Xenon lamp, Model PE150AF, has an integrated parabolic reflector, enabling high-intensity, focused light output. Due to the Xenon lamp’s broad color spectrum, the lamp is filtered to emit ultraviolet, visible, or infrared light, depending upon application and usage. With their internal reflector and rugged ceramic body construction, Cermax® Xenon lamps are the safest and most compact alternative to conventional quartz xenon lamps. Cermax® lamps are ideal for applications that require a high degree of illumination control.

Current-regulated or power-regulated power supplies with output ripples of less than 5% are recommended. Single-shot ignition pulses are advised because radio frequency starters may damage the lamp’s internal reflector.

In addition to lamps, Excelitas Technologies manufactures Cermax® Xenon short-arc lamp power supplies, lamp holders, OEM lighting systems, and fiber optic light sources.

About Excelitas Technologies

Excelitas Technologies is a global technology leader focused on delivering innovative, customized solutions to meet the lighting, detection and other high-performance technology needs of OEM customers.

From medical lighting to analytical instrumentation, clinical diagnostics, industrial, safety and security and aerospace and defense applications, Excelitas Technologies is committed to enabling our customers' success in their specialty end-markets. Excelitas Technologies has approximately 3,000 employees in North America, Europe and Asia, serving customers across the world.
