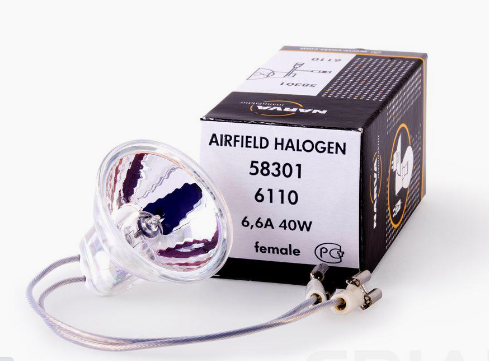

Narva 58301 6110 6,6 40W cable/f/f Airfield Lamps (Qty. 3)
Narva 58301 6110 6,6 40W cable/f/f Airfield Lamps (Qty. 3)
Narva 58301 6110 6,6 40W cable/f/f Airfield Lamps (Qty. 3)

Narva 58301 6110 6,6 40W cable/f/f Airfield Lamps (Qty. 3)

Regular price Rs. 3,450.00

In Stock. Ships within 5 business days.

Equivalent Osram P/N: 64333 A 40-15

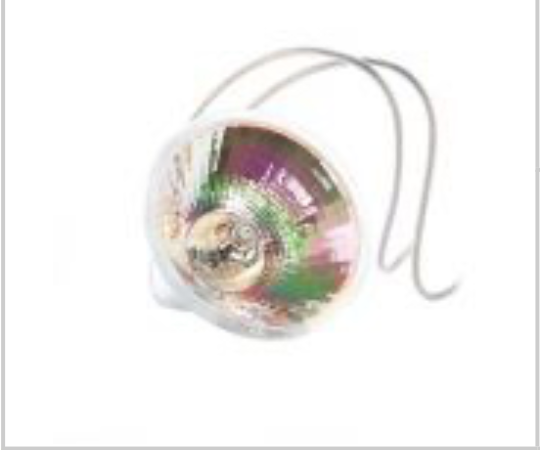

Airfield Halogen Dichroic Reflector

Features

High and constant lumen output, long lifetime, excellent optical adjustment, strong focus light

Applications

  • Approach and threshold lights
  • Runway and taxiway lights
  • Airport Signs
  • Stop bar and touchdown zone lights

Technical Details

Rated current (A)

6,6

Wattage (W)

40 +/- 10%

Axial Light Intensity (kcd)

min. 10,5

Reflector type

MR11

Average lifetime (hours)

1500

Base

flexible cable

Cable connector

flat female
according DIN 46247

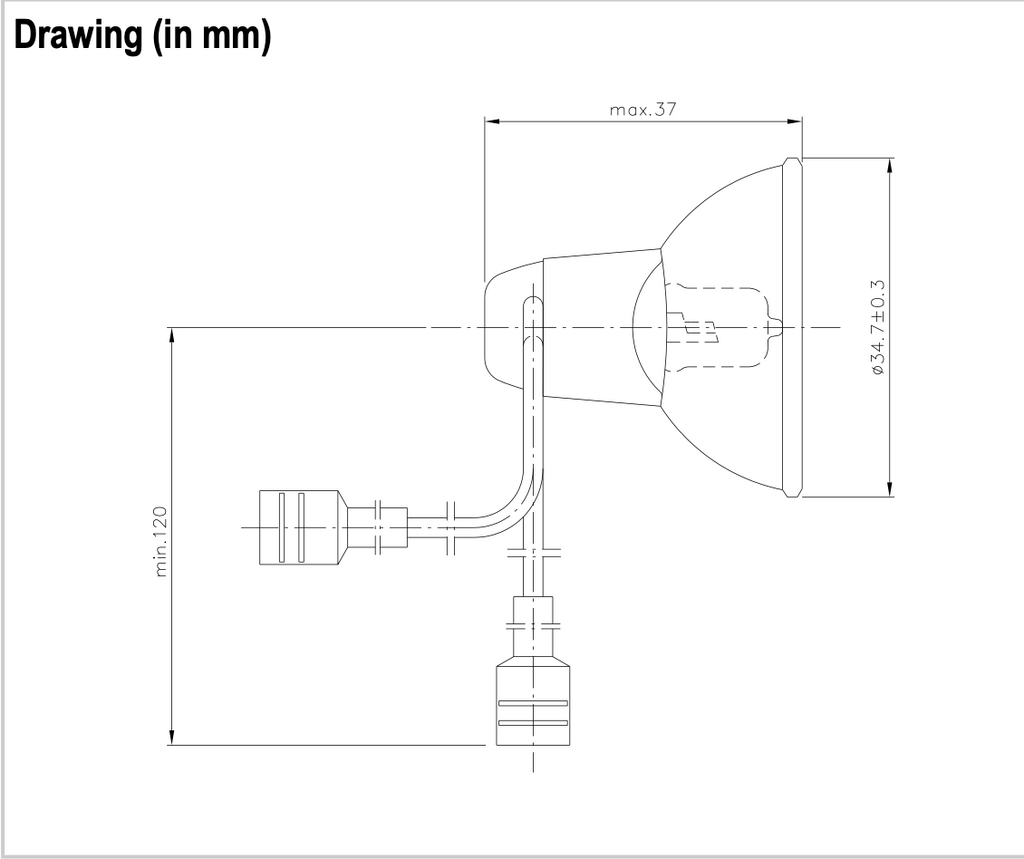

Cable length (mm)

min. 120

Maximum Overall Length (mm)

max. 37

Reflector Diameter (mm)

34,7 +/-0,3

Maximum allowed cable temperature (°C)

250

Maximum allowed pinch temperature (°C)

350

Filament Type

C-8

Burning Position

S90

Chromaticity

within white boundaries

Packaging quantity

100pcs.

Environmental remark

Product don’t contain lead or mercury
and is conform with Directive 2011/65/EC
“Restriction of the use of certain hazardous sub- stances in electrical and electronic equipment”.



GERMAN COMPANY – GERMAN QUALITY STANDARDS

For more than 70 years, precision and quality in Halogen bulbs and lighting solutions, made by NARVA in Germany

In the field of airfield lighting, Vosla-Narva is one of the leading manufacturers worldwide. Our product range covers all AGL applications. From approach and threshold lights over taxiway and runway lights to obstruction lights, our NARVA lamps provide safety on the runway.

High reliability and long life expectancy are those characteristics of our Airfield Ground Lighting lamps which we take into account with our internal quality seal of “German Precision Lighting” – and which are highly valued by our repeat customers for decades.

Safety during takeoff and landing maneuver’s can only be assured by perfect illumination of airfield runways. Thus, regulatory requirement of FAA, ICAO and other international regulations are just the lower limit – our personal standard and ambition onto quality goes well beyond.

Our products also deliver value with their prolonged lifetime, which results in long exchange cycles and considerably lower maintenance costs.
