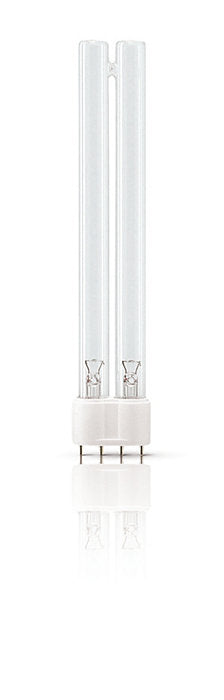

TUV PL-L 35W/4P HO 1CT/25 (TUV35W / PLL35W)

TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Benefits

  • Security of effective disinfection over the useful lifetime of the lamp
  • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

Features

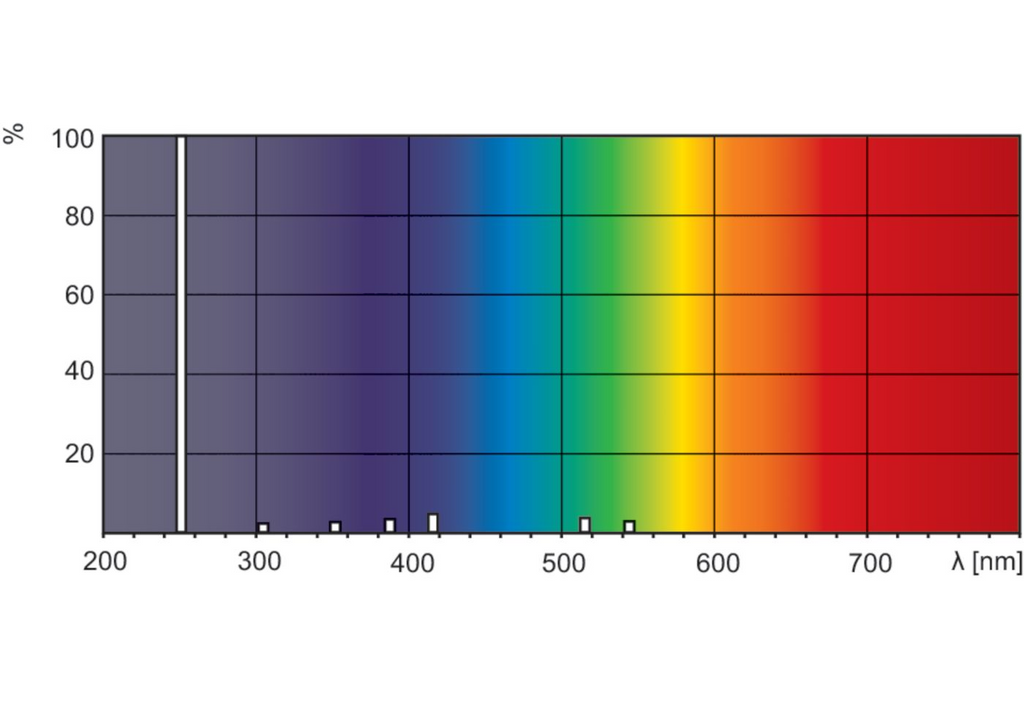

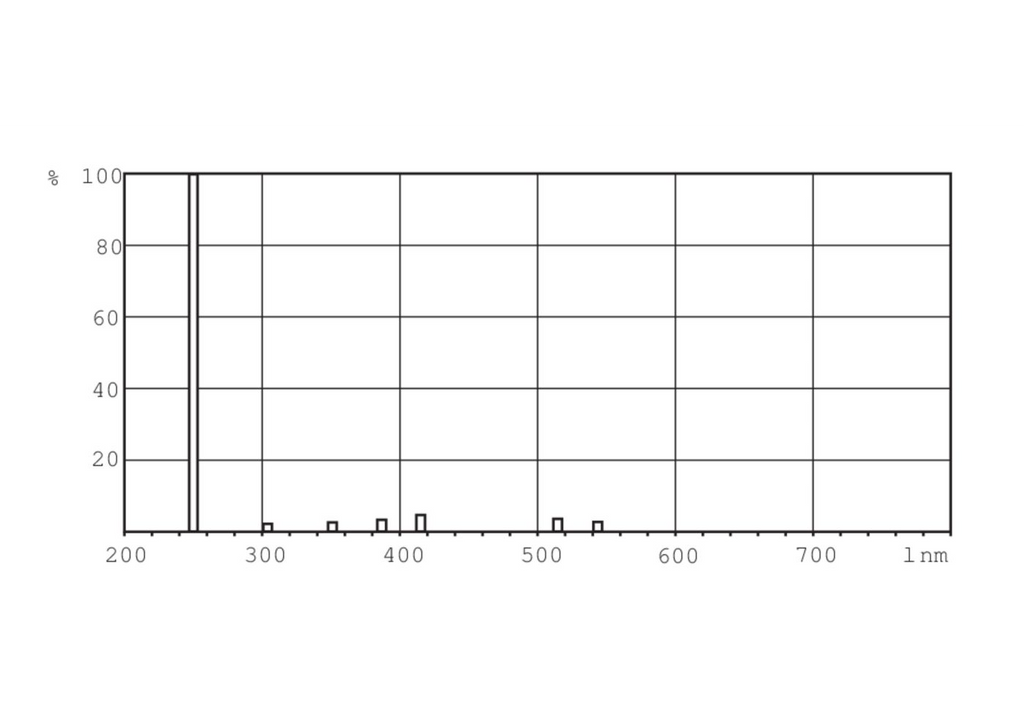

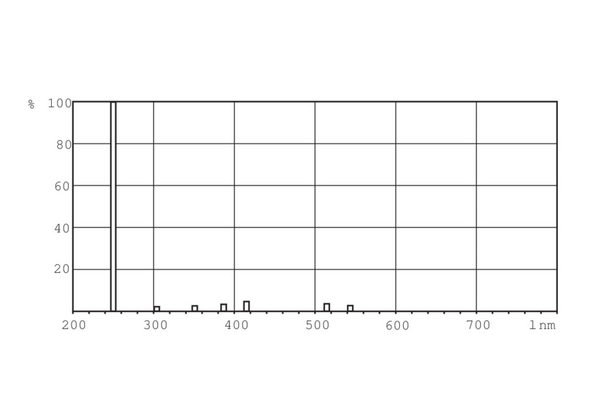

  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
  • Special lamp glass filters out the 185 nm ozone-forming radiation
  • High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
  • Warning sign on lamp indicates that the lamp radiates UVC

Applications

  • Deactivation of bacteria, viruses and other micro-organisms
  • Fish pond and process water units
  • Stand alone air purifiers
  • Residential drinking water units
  • In-duct air treatment units
  • Air disinfection systems in for example hospitals, universities and laboratories

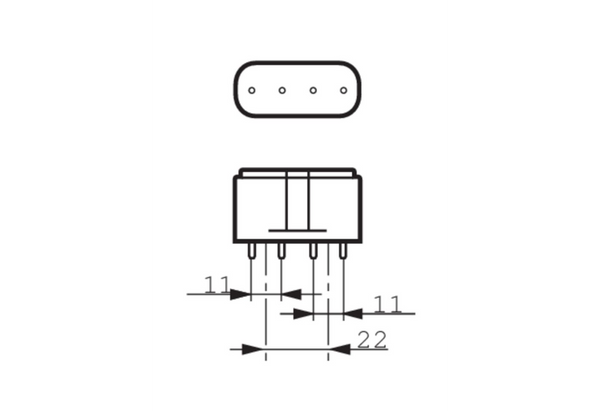

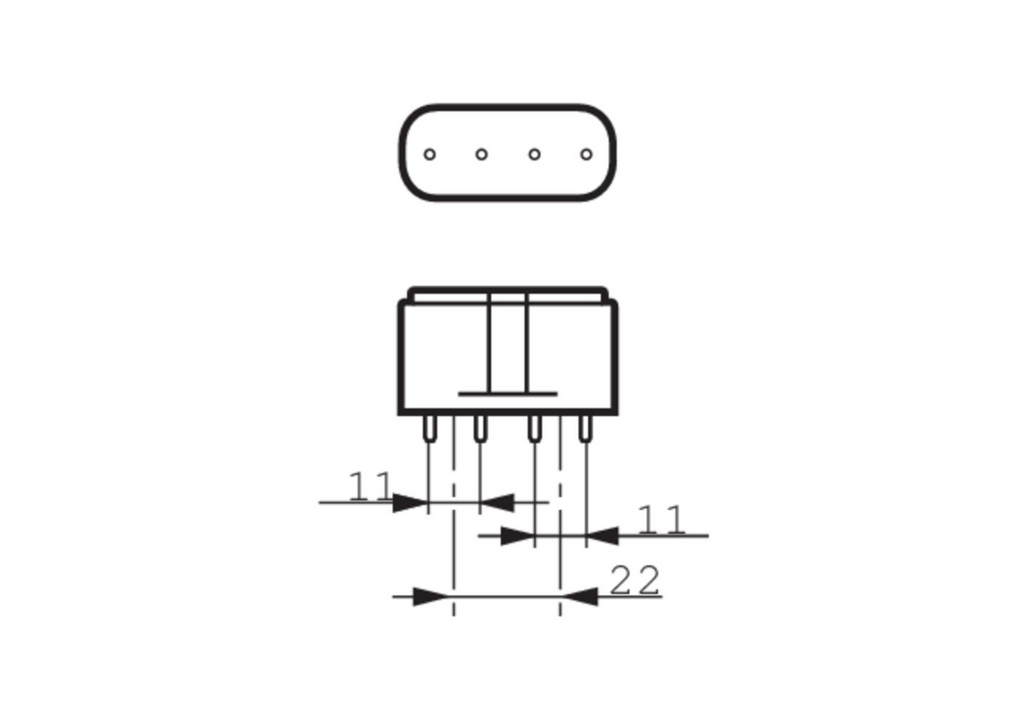

Cap-Base 2G11  [ 2G11]

Main Application Disinfection

Useful Life (Nom) 9000 h

Color Code TUV

Depreciation at Useful Lifetime 15 %

Power (Nom) 35 W

Voltage (Nom) 42 V

Lamp Current (Nom) 0.85 A

Cap-Base Information 4 Pins

Mercury (Hg) Content (Nom) 4.4 mg

UV-C Radiation at 100 hr 11.0 W

Net Weight (Piece) 60.900 g
