Philips TUV PL-L 36W/4P 1CT/25 (Qty. 2)
Philips TUV PL-L 36W/4P 1CT/25 (Qty. 2)
Philips TUV PL-L 36W/4P 1CT/25 (Qty. 2)
Philips TUV PL-L 36W/4P 1CT/25 (Qty. 2)
Philips TUV PL-L 36W/4P 1CT/25 (Qty. 2)

Philips TUV PL-L 36W/4P 1CT/25 (Qty. 2)

Regular price Rs. 4,950.00

In Stock. Ships within 5 business days

Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp

UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp

UV Quartz Sleeve for safety is also available for this UVC lamp

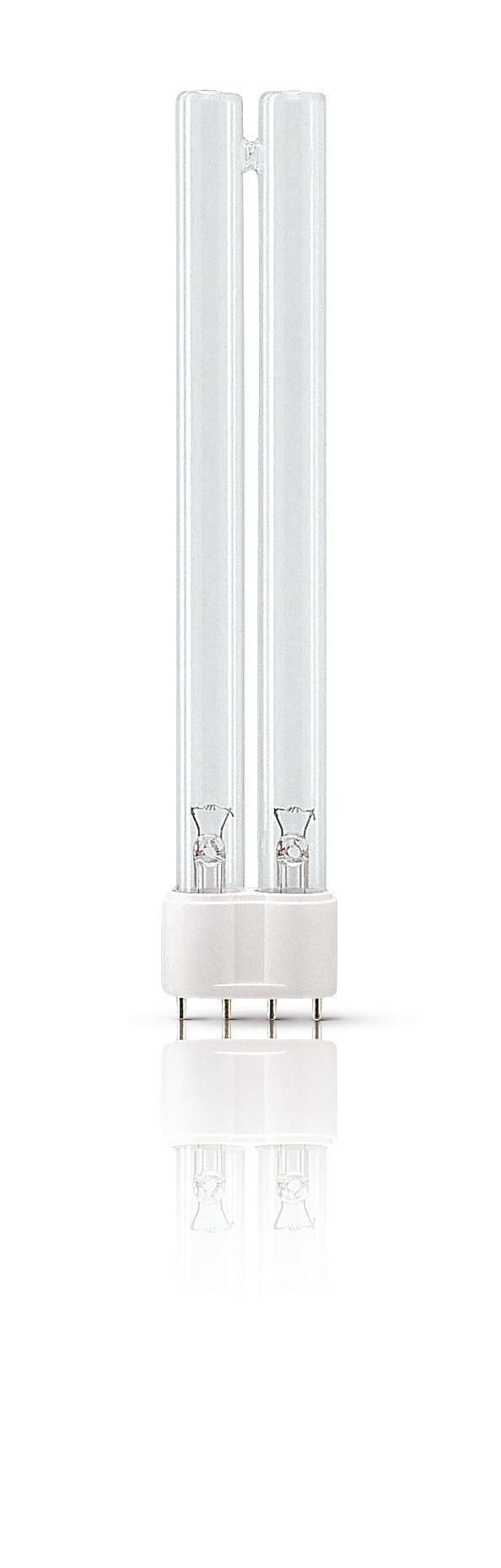

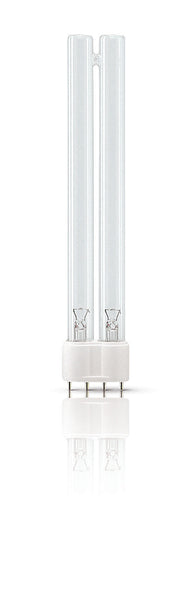

TUV PL-L (TUV36W / PLL36W / Philips 265850)

TUV PL-L lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Benefits

  • Security of effective disinfection over the useful lifetime of the lamp
  • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

Features

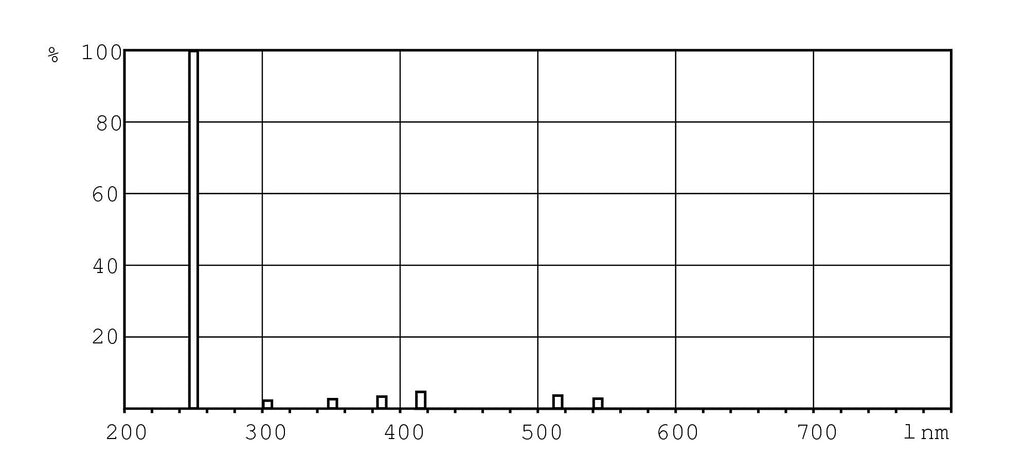

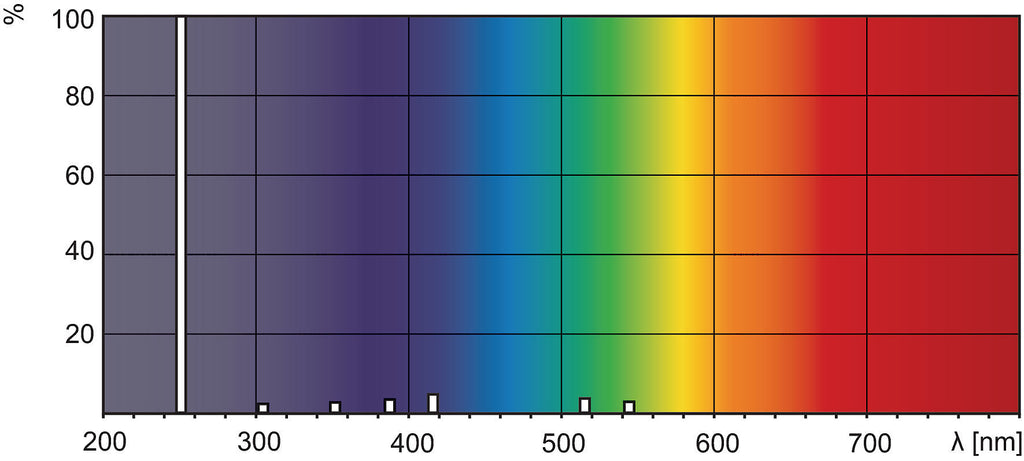

  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
  • Special lamp glass filters out the 185 nm ozone-forming radiation
  • High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
  • Warning sign on lamp indicates that the lamp radiates UVC

Applications

  • Deactivation of bacteria, viruses and other micro-organisms
  • Fish pond and process water units
  • Stand alone air purifiers
  • Residential drinking water units
  • In-duct air treatment units
  • Air disinfection systems in for example hospitals, universities and laboratories
General Characteristics

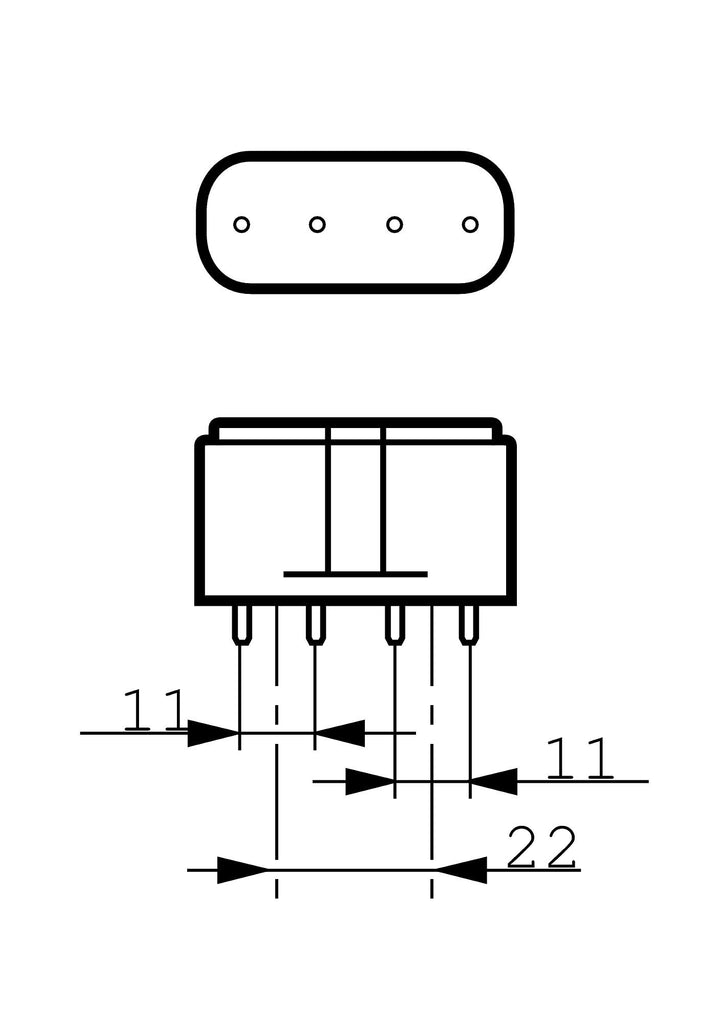

Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2xT16
Main Application Disinfection
Useful Life 9000 hr
Electrical Characteristics
Lamp Wattage 36 W
Lamp Wattage Technical 36 W
Lamp Voltage 105 V
Lamp Current 0.44 A
Light Technical Characteristics
Color Code TUV
UV-related Characteristics
UV-C Radiation 12.0 W

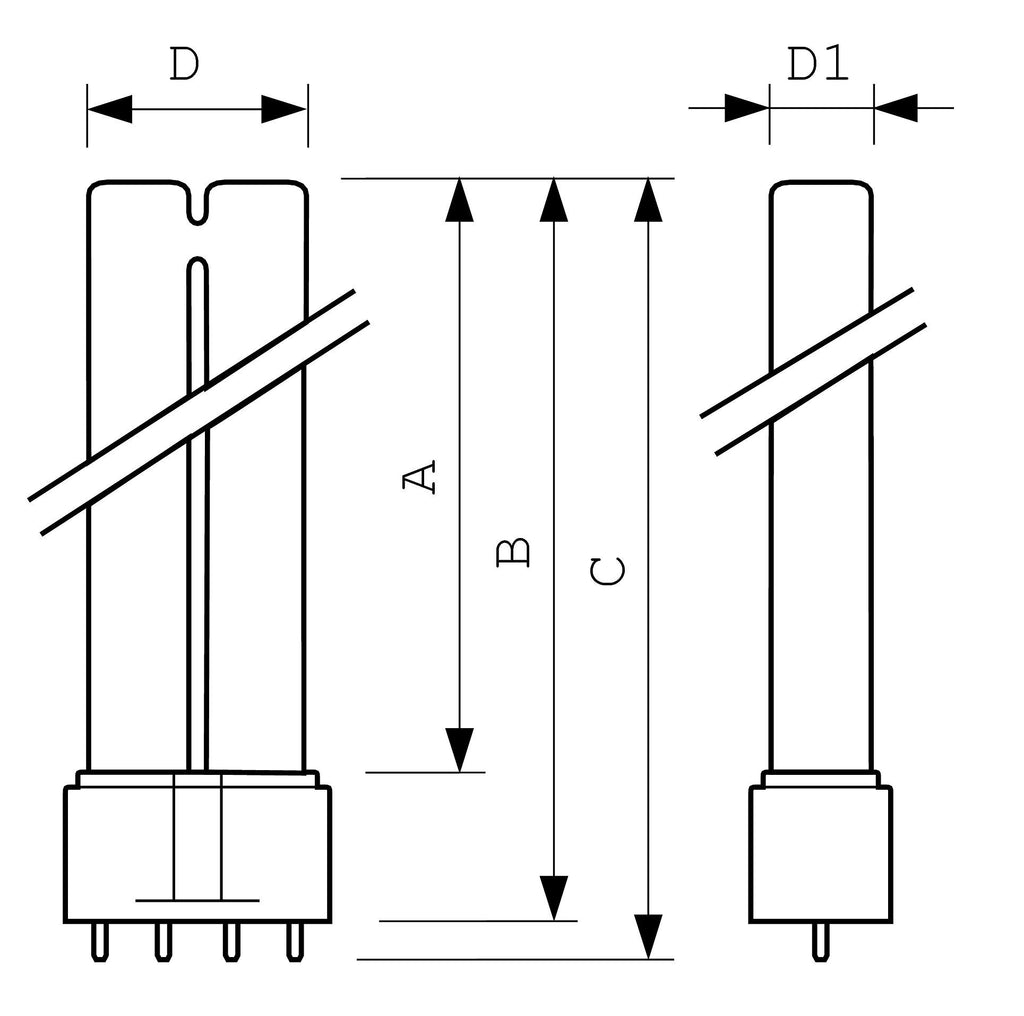

Product Dimensions
Base Face to Base Face A 385 (max) mm
Insertion Length B 410 (max) mm
Overall Length C 415 (max) mm
Diameter D 38 (max) mm
Diameter D1 18 (max) mm
