Philips TUV 20W FAM/10X25CC TL Mini (Qty. 3)

Philips TUV 20W FAM/10X25CC TL Mini (Qty. 3)

Regular price Rs. 2,085.00

In Stock. Ships within 5 business days

Compatible/Right UVC Lamp Ballast/Choke for superior UVC lamp life is also available for this UVC lamp

UVC-compatible Lampholder to prevent premature failure of UVC Lamp is also available for this UVC lamp

UV Quartz Sleeve for safety is also available for this UVC lamp

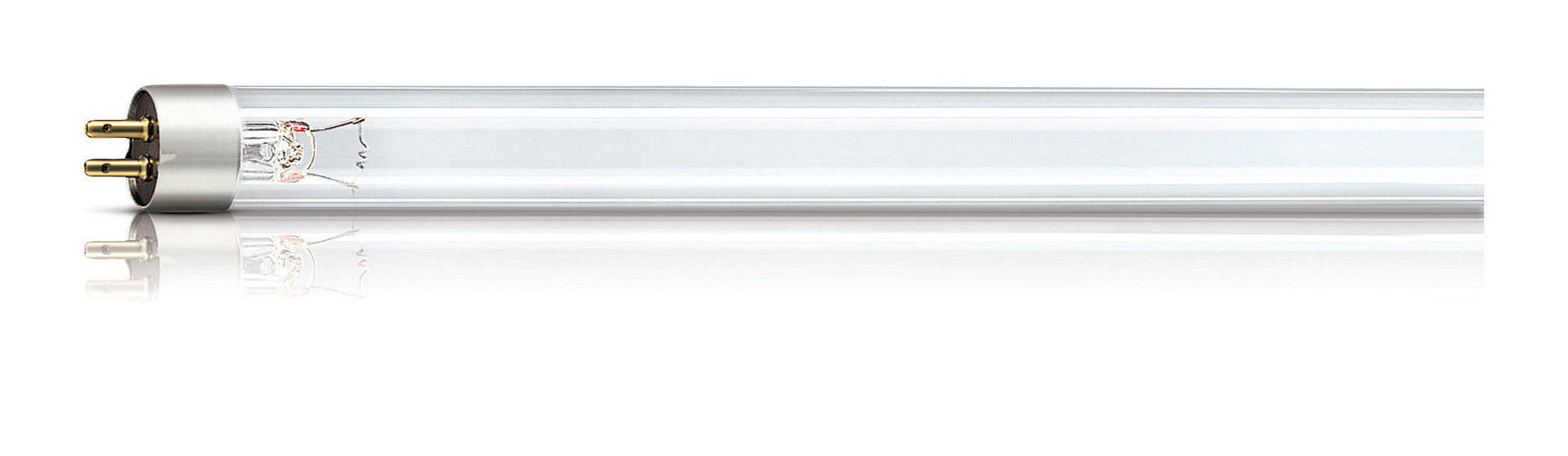

TUV TL Mini (TUV20W)

TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.


  • Security of effective disinfection over the useful lifetime of the lamp
  • Good environmental choice because of lowest amount of mercury
  • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection


  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
  • Special lamp glass filters out the 185 nm ozone-forming radiation
  • Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
  • Warning sign on lamp indicates that the lamp radiates UVC


  • Deactivation of bacteria, viruses and other micro-organisms
  • Residential drinking water units
  • Fish pond water units
  • In-duct air treatment units
  • Stand alone air purifiers
General Characteristics
Cap-Base G5
Bulb T16
Main Application Disinfection
Useful Life 11000 hr
Electrical Characteristics
Lamp Wattage 20 W
Lamp Wattage Technical 20 W
Lamp Voltage 45 V
Lamp Current 0.450 A
Environmental Characteristics
Mercury (Hg) Content 4.4 mg
UV-related Characteristics
UV-C Radiation 6.0 W
Product Dimensions
Reference Length A 398 (max) mm
Insertion Length B 402.7 (min), 405.1 (max) mm
Overall Length C 412.2 (max) mm
Diameter D 16 (max) mm
