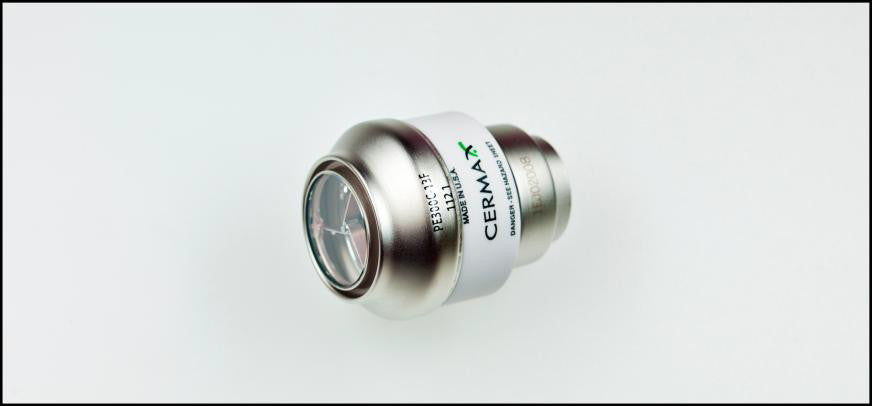

Excelitas PE300C-10F Cermax Xenon Short Arc Ceramic Body Elliptical Lamp

Excelitas PE300C-10F Cermax Xenon Short Arc Ceramic Body Elliptical Lamp

Regular price Rs. 64,800.00

In Stock. Ships within 5 business days.

The PE300C-10F features high-intensity, focused illumination - 7475 Lumens, with a power range of 200-300 Watts. It has a broad spectral range with 5900-degree Kelvin color temperature, and a lamp lifetime of 1,000 hours.

Body Type

Ceramic

Reflector Type

Elliptical

Lumens

7,475

Power range

(Watts)

200-300

UV Output, Watts

(<390 nm)

3.8

Power: Nominal

300 Watts

Power: Range

200-300 Watts

Current: Nominal

21 amps (DC)

Current: Range

13-23 amps (DC

Operating Voltage:

Nominal

12 Volts (DC)

Operating Voltage:

Range

11.5-15 Volts (DC)

Ignition Voltage

23 kilovolts (recommended minimum)

Temperature

150° C (maximum)

Lifetime

1000 hours typical

Key Features

  • High-intensity, focused illumination - 7475 Lumens
  • Up to 9.7 Watts of UV output (<390 nm)
  • Power range of 200-300 Watts
  • 1000 hours lamp lifetime
  • Broad spectral range with 5900o Kelvin color temperature

Applications

  • Medical fiber optic illuminators
  • Industrial fiber optic illuminators
  • Machine vision
  • Infrared and visible spotlights/beacons
  • Spectroscopy
  • Microscopy
  • UV Curing
  • Video projection

Cermax® Xenon short-arc lamps from Excelitas Technologies are ideal for applications that require a high degree of illumination control.

The Cermax® Xenon short-arc lamp from Excelitas Technologies is an innovative lamp design in the specialty lighting industry. Cermax® Xenon lamps were first introduced in the early 1980s and are now used in diagnostic and surgical endoscopes in most major hospitals worldwide, in high-brightness projection display systems, and for a wide variety of other high- performance applications.

The Cermax® Xenon lamps, Models PE300C-10F and PE300C-10UV, have an integrated elliptical reflector, enabling high-intensity, focused light output. Due to the Xenon lamp’s broad color spectrum, the lamp is filtered to emit ultraviolet, visible, or infrared light, depending upon the application or usage. With their internal reflector and rugged ceramic body construction, Cermax® Xenon lamps are the safest and most compact alternative to conventional quartz xenon lamps. Cermax® lamps are ideal for applications that require a high degree of illumination control.

Current-regulated or power-regulated power supplies with output ripples of less than 5% are recommended. Single-shot ignition pulses are advised because radio frequency starters may damage the lamps internal reflector.

In addition to lamps, Excelitas Technologies manufactures power supplies for Cermax® Xenon short-arc lamps, lamp holders, OEM lighting systems, and fiber optic light sources.
