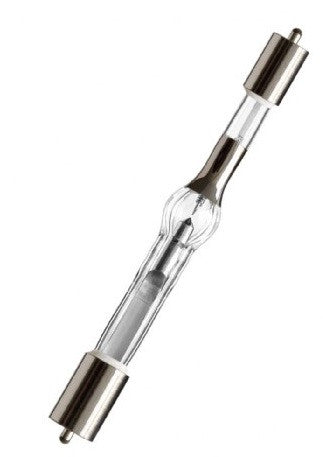

Osram HBO 100 W/2 Mercury Short-Arc Lamp
Osram HBO 100 W/2 Mercury Short-Arc Lamp
Regular price
Rs. 15,000.00
Regular price
Sale price
Rs. 15,000.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
In Stock. Ships within 5 business days.
Product benefits
- High radiance
- High radiant power in the UV and the visible range
Areas of application
- Fluorescence microscopy
- UV curing
- A variety of light guide applications
Product features
- Multi-line spectrum
Technical Data
Electrical data
| Nominal wattage | 100.00 W |
|---|---|
| Lamp wattage | 100 W |
| Lamp voltage | 17…25 V |
| Lamp current | 4.3…5.6 A |
| Type of current | DC |
Photometrical data
| Nominal luminous flux | 2200 lm |
|---|---|
| Luminous intensity | 260 cd |
Dimensions & weight
| Diameter | 10.0 mm |
|---|---|
| Mounting length | 82.0 mm |
| Length with base excl. base pins/connection | 82.00 mm |
| Light center length (LCL) | 43.0 mm |
Lifespan
| Lifespan | 200 h |
|---|
Additional product data
| Base (standard designation) | SFa7.5/SFa9 |
|---|---|
| Base anode (standard designation) | SFa9-2 |
| Base cathode (standard designation) | SFa7.5-2 |
Capabilities
| Burning position | s90 |
|---|
